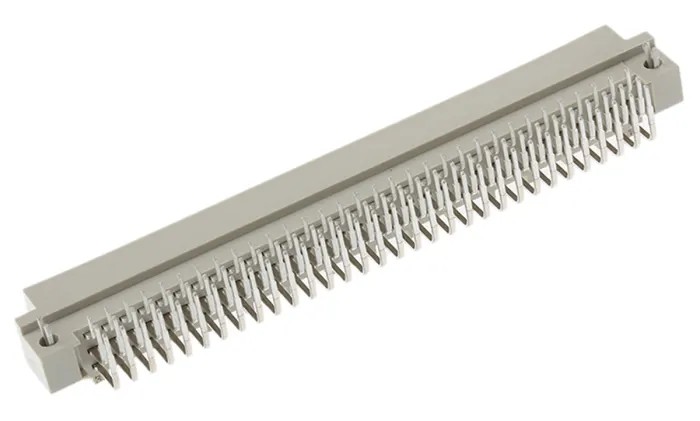

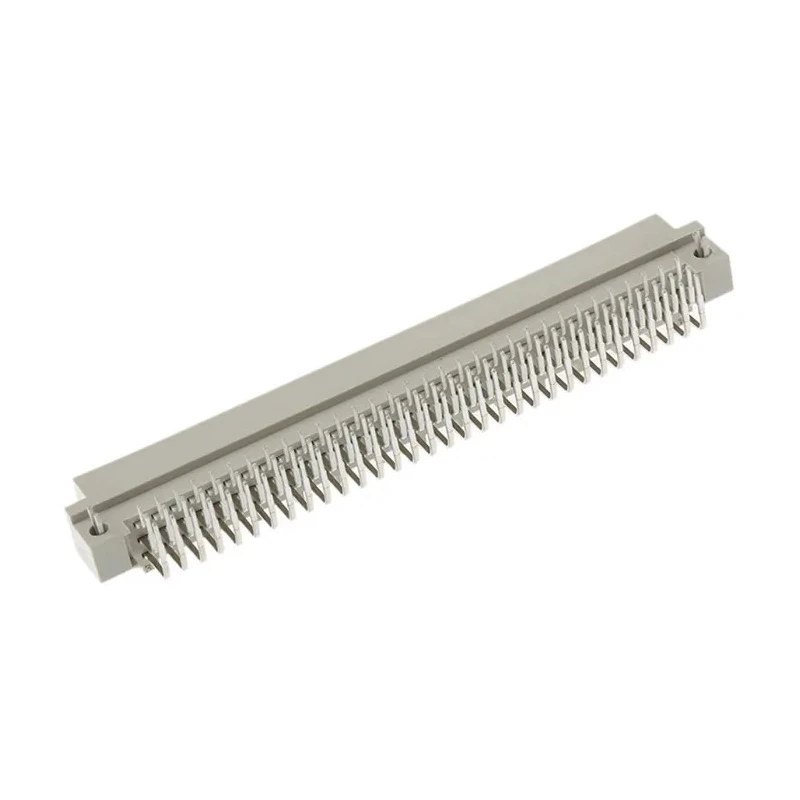

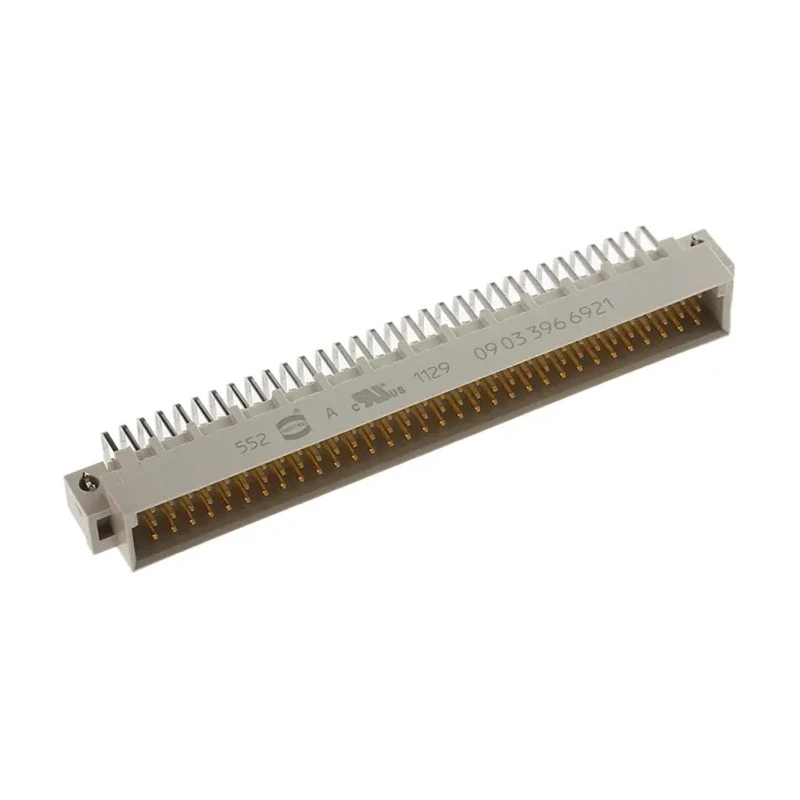

HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch Type Through Hole Type C/2 Solder Class C2 3 Row Male Right 09033966921

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch Type Through Hole Type C/2 Solder Class C2 3 Row Male Right 09033966921

Name: HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch Type Through Hole Type C/2 Solder Class C2 3 Row Male Right 09033966921
Brand: HARTING
SKU: 216434
Price: 7.63 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	2A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

This connector has a current rating of 2A, suitable for signal applications.
It is designed according to DIN 41612 standards for reliable backplane connections.
Termination is solder type providing secure contacts.
Operating temperature range from -55°C to 125°C ensures versatility in harsh environments.
Contact plating of gold over nickel offers durability and corrosion resistance.
Made from copper alloy contacts and fibreglass reinforced thermoplastic housing for robust construction.
Maximum contact resistance is 20 mΩ ensuring efficient signal transmission.
Right angle orientation facilitates space saving PCB layouts.

Product Description

HARTING 09033966921 DIN 41612 Connector is a 96 Way, 3 Row Male, Right Angle connector designed for PCB backplane signal applications. It features a 2.54 mm pitch with Type Through Hole mounting and solder termination, classified as Class C2 solder class which ensures excellent soldering reliability and durability.

The connector supports a current rating of 2A, making it suitable for various electronic signal transmission tasks in industrial and commercial electronic equipment. Its operating temperature ranges from -55°C to 125°C, allowing it to operate effectively in environments with extreme temperature variations.

Constructed with copper alloy contacts plated with gold over nickel and housed in fibreglass reinforced thermoplastic, the connector offers long-lasting durability, corrosion resistance, and a stable electrical connection. The maximum contact resistance rate of 20 mΩ assures low resistance in signal paths, minimizing loss and improving connector performance.

Its right angle orientation facilitates compact PCB layout designs, optimizing space on assemblies. The connector is engineered according to the DIN 41612 series standards, widely used for interconnection in 19in Eurocard racking systems, making it ideal for a range of industrial, manufacturing, telecommunications, and electronic control applications.

This 96 contact connector is supplied as a 3 row male assembly for robust backplane connectivity. The Type C/2 subtype ensures compatibility within standard DIN 41612 interfaces. Gold over nickel plating and copper alloy contacts deliver high performance and resistance to wear.

Through hole mounting provides mechanical stability during assembly and operation. Solder termination guarantees reliable connection integrity over multiple cycles. Operating temperature suitability from -55°C to 125°C allows use in demanding environmental conditions.

Manufactured in Germany to strict quality standards.

HARTING connectors are trusted in industrial automation, instrumentation, manufacturing, railway, and telecommunications fields. This connector enables efficient, reliable interconnection and data transmission between PCBs in industrial systems. Browse EnvMart for more HARTING connectors and DIN 41612 compatible products to suit your electrical design requirements.

Explore more products in our DIN 41612 Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The connector has a current rating of 2A, making it suitable for signal applications in various electronic equipment.

It operates effectively in environments with an operating temperature range of -55°C to 125°C.

This model features 96 contacts, arranged in 3 rows.

It uses solder termination, classified as Class C2, ensuring reliable connection integrity.

The contacts are made from copper alloy and are plated with gold over nickel, while the housing is constructed from fibreglass reinforced thermoplastic.

The maximum contact resistance is 20 mΩ, which helps ensure efficient signal transmission.

The connector has a pitch of 2.54 mm, suitable for various PCB layouts.

It features a right angle orientation, facilitating space-saving PCB layouts.

Yes, it is designed according to DIN 41612 standards, which are widely used for backplane connections.

It is manufactured in Germany to strict quality standards.

This connector is ideal for interconnection in industrial, manufacturing, telecommunications, and electronic control applications.

It supports through hole mounting, providing mechanical stability during assembly and operation.
