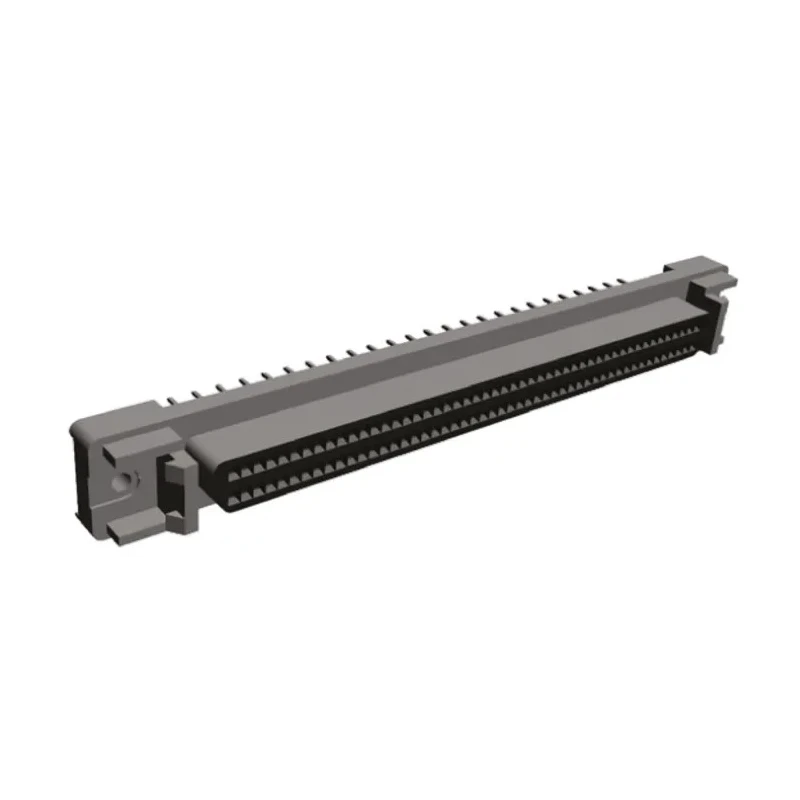

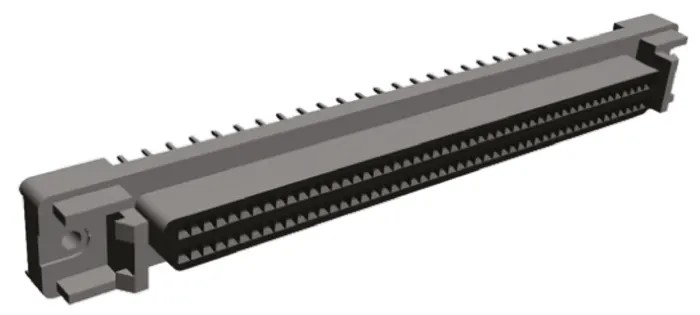

TE Connectivity AMPLIMITE .050 III 100 Way Straight 2.54 mm Pitch Through Hole D-Sub Connector with Latch Block 5749069-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE .050 III |
| Mounting Hardware | Latch Block, Rail |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 100 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Features 100 female contacts in a compact and space-saving design.
- Constructed with thermoplastic housing compatible with reflow soldering.
- Full shielding provides excellent EMI and RFI protection.
- Includes latch block and rail for secure connector mating.
- Operates reliably from -55°C to 105°C temperature range.
- Contacts are phosphor bronze plated with gold over nickel for corrosion resistance.
- Suitable for consumer electronics, telecommunications, military, and industrial applications.
- Complies with RoHS and supports multiple industry standards including SCSI-2, ISO-11569, and IEEE 802.3 MII.
Product Description
TE Connectivity 5749069-9 AMPLIMITE .050 III 100 Way Straight 2.54 mm Pitch Through Hole D-Sub Connector features a high-density D-subminiature interface designed for robust industrial and electronic applications. This PCB mount connector is manufactured with thermoplastic housing compatible with surface mount reflow solder processes, ensuring reliable mechanical and electrical performance.
The connector provides 100 female contacts spaced at 2.54 mm pitch, optimizing compact layouts while maintaining high signal integrity. Phosphor bronze contacts plated with gold over nickel enhance durability and corrosion resistance. The full shielding design offers excellent EMI and RFI protection.
Integral latch blocks and mounting rails secure the mating connector, preventing movement and ensuring consistent grounding. This connector is rated for operation within a temperature range of -55°C to 105°C, suitable for demanding environments.
Applications include consumer electronics, telecommunications, Local Area Networks, military systems, industrial machinery, and medical equipment, where high density and reliable connections are critical.
The AMPLIMITE .050 Series III connectors comply with leading standards such as SCSI-2, SCSI-3, EIA RS-232, ISO-11569, IPI-2, HIPPI, and IEEE 802.3 MII, ensuring interoperability and quality.
Features 100 female contacts in a compact and space-saving design. Thermoplastic housing compatible with reflow soldering processes. Full shielding provides EMI and RFI protection. Latch block and rail mounting hardware ensure secure connection.
Operating temperature range from -55°C to 105°C. Phosphor bronze contacts with gold over nickel plating. Suitable for consumer electronics, telecom, military, and industrial equipment. Compliant with RoHS and multiple industry standards.
Explore EnvMart's extensive range of high-quality connectors designed for industrial and electronic applications. Browse our selection of D-Sub Connectors for reliable, high-performance interconnect solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 100 female contacts arranged in a compact design with a 2.54 mm pitch.
It operates reliably within a temperature range of -55°C to 105°C.
The housing is made of thermoplastic, while the contacts are phosphor bronze plated with gold over nickel for corrosion resistance.
This connector is designed for through hole mounting and includes latch block and rail mounting hardware.
Yes, it complies with RoHS and multiple industry standards including SCSI-2, ISO-11569, and IEEE 802.3 MII.
The termination type for this model is solder, which is compatible with reflow soldering processes.
It is suitable for applications in consumer electronics, telecommunications, military systems, industrial machinery, and medical equipment.
The connector has a straight orientation, facilitating easy installation in various configurations.
The full shielding provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal integrity.
The weight of this connector is not specified in the provided data.
The contacts are spaced at a pitch of 2.54 mm, which is standard for high-density applications.
The integral latch block secures the mating connector, preventing movement and ensuring consistent grounding during operation.
