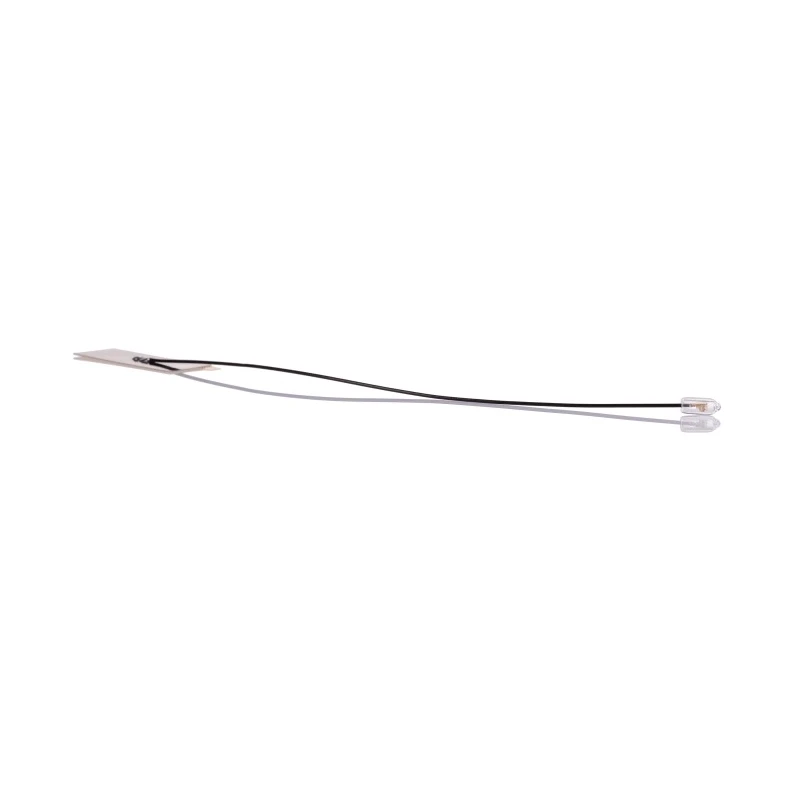

Molex PCB WiFi Antenna with Micro-Coaxial RF Connector, Ultra Wideband (UWB), 3-6GHz Frequency, 4dBi Gain, 200mm 146184-0200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Cable Length | 200mm |
| Connector Type | Micro-Coaxial RF |
| Bandwidth | 6GHz |
| Series | 146184 |
| Gain | 4dBi |
| Maximum Frequency | 6GHz |
| Minimum Frequency | 3GHz |
| Internal/External | Internal |
| RF Protocols | Ultra Wideband (UWB) |
| Antenna Physical Form | PCB |
| Antenna Mount Type | Adhesive |
| Directivity | Omni-Directional |
| Antenna Internal Construction | Ultra Wideband (UWB) PCB Antenna with Balanced Transmission |
| Number of Bands | 2 |
Key Features
- Features omnidirectional antenna with 4dBi peak gain for effective signal transmission.
- Cable length is 200mm with micro-coaxial RF connector for SMT male interface.
- Adhesive antenna mount type enables easy installation on PCB surfaces.
- Maintains total radiation efficiency over 62%, ensuring minimal power loss.
- Designed for internal use with balanced dual-band transmission.
- Ground-plane-independent design prevents interference from ground-based radiation.
- Complies with Ultra Wideband (UWB) RF protocols for broadband applications.
- Suitable for scanners, medical devices, and consumer electronics.
Product Description

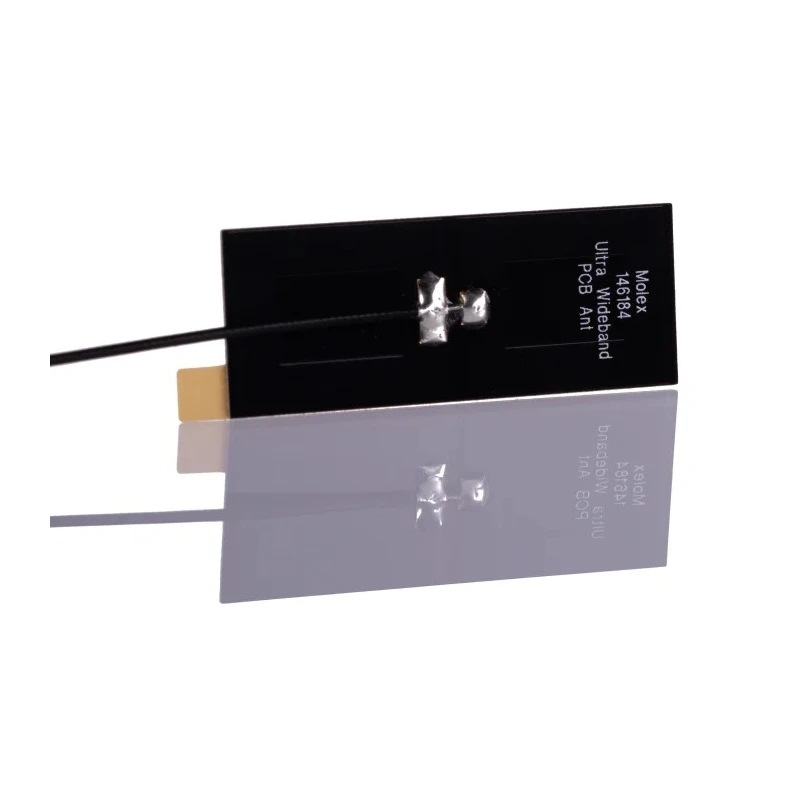

Molex 146184-0200 PCB WiFi Antenna with Micro-Coaxial RF Connector is an internal PCB antenna optimized for Ultra Wideband (UWB) applications, operating over a 3 to 6GHz frequency range. It provides omnidirectional signal propagation with a peak gain of 4dBi, ideal for reliable wireless communications.

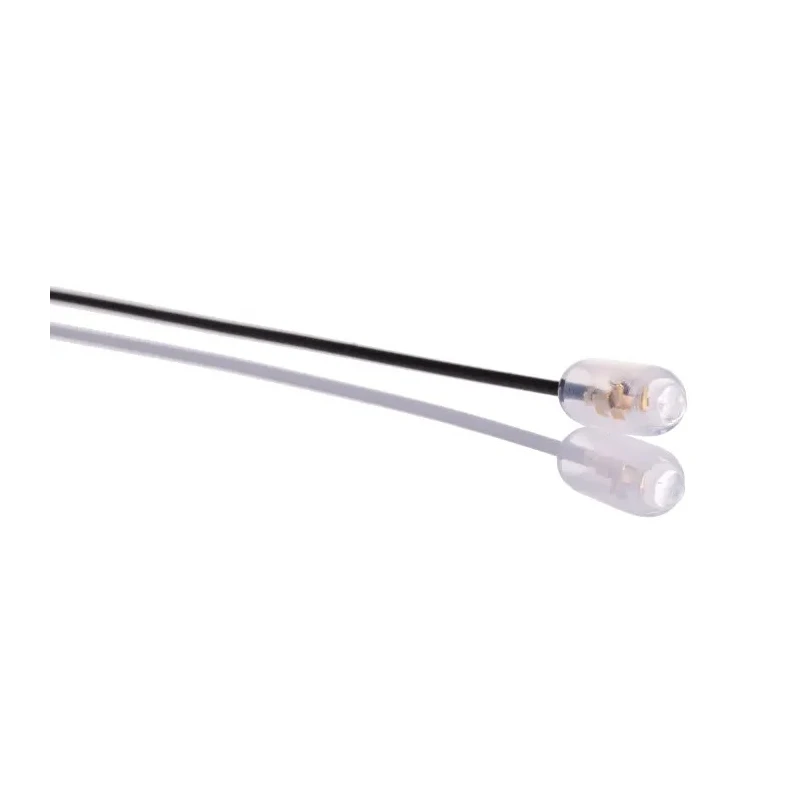

The antenna features a 200mm micro-coaxial cable terminated with an SMT male connector that mates securely with a 50-Ohms SMT MCRF receptacle. Its adhesive mount facilitates straightforward installation directly on PCB surfaces, making it an excellent choice for embedded wireless systems.
Designed with a balanced transmission architecture, this ultra wideband antenna ensures broad bandwidth handling and stable radiation efficiency exceeding 62%, minimizing power loss during signal conversion. Its ground-plane-independent design reduces susceptibility to ground-based radiation interference, thereby improving signal integrity.
This antenna is primarily suited for advanced industrial and commercial applications such as scanners, medical devices, and consumer electronics requiring ultra wideband frequency coverage. It delivers excellent performance in environments demanding robust wireless connectivity.
It represents a solid upgrade option for enhancing existing wireless network components or new device designs. Features omnidirectional antenna with 4dBi peak gain for effective signal transmission. Cable length is 200mm with micro-coaxial RF connector for SMT male interface.
Adhesive antenna mount type enables easy installation on PCB surfaces. Maintains total radiation efficiency over 62%, ensuring minimal power loss. Designed for internal use with balanced dual-band transmission. Ground-plane-independent design prevents interference from ground-based radiation.
Complies with Ultra Wideband (UWB) RF protocols for broadband applications. Suitable for scanners, medical devices, and consumer electronics. Explore EnvMart's comprehensive selection of high-performance WiFi Antennas and related electronic components for industrial, commercial, and medical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a frequency range of 3 to 6GHz, making it suitable for ultra wideband applications.
It has a peak gain of 4dBi, which supports effective signal transmission.
The antenna features a micro-coaxial RF connector designed for SMT male interfaces.
The cable length is 200mm, providing flexibility for installation on PCB surfaces.
It uses an adhesive mount type, allowing for easy installation directly onto PCB surfaces.
This antenna is omnidirectional, allowing it to propagate signals in all directions.
It is constructed as an ultra wideband (UWB) PCB antenna with balanced transmission architecture.
It complies with Ultra Wideband (UWB) RF protocols, making it suitable for broadband applications.
It maintains a total radiation efficiency exceeding 62%, ensuring minimal power loss during signal transmission.
The country of origin for this antenna is China.
This antenna supports two bands, designed for balanced dual-band transmission.
