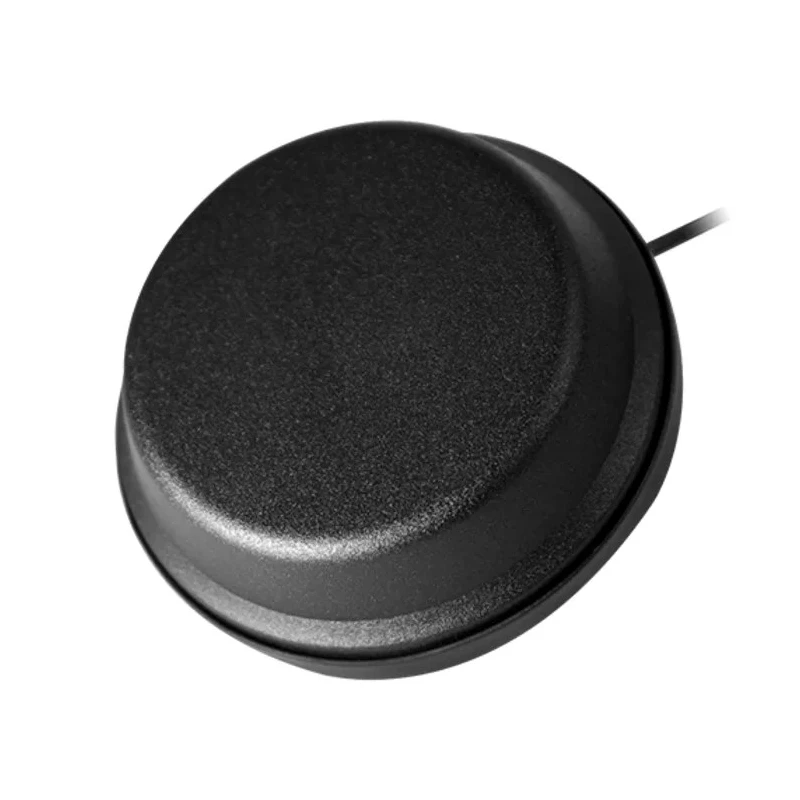

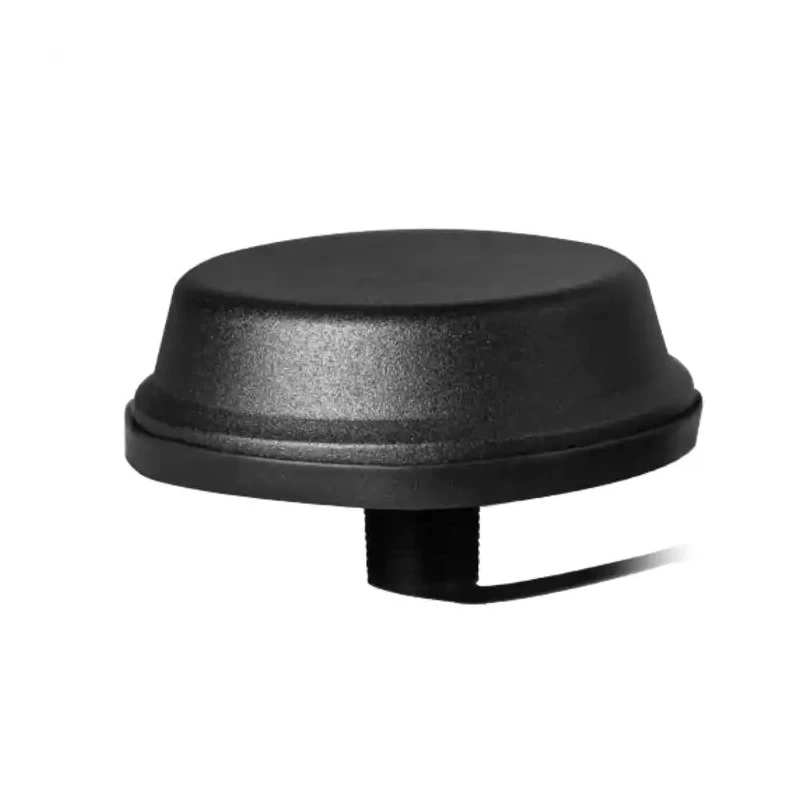

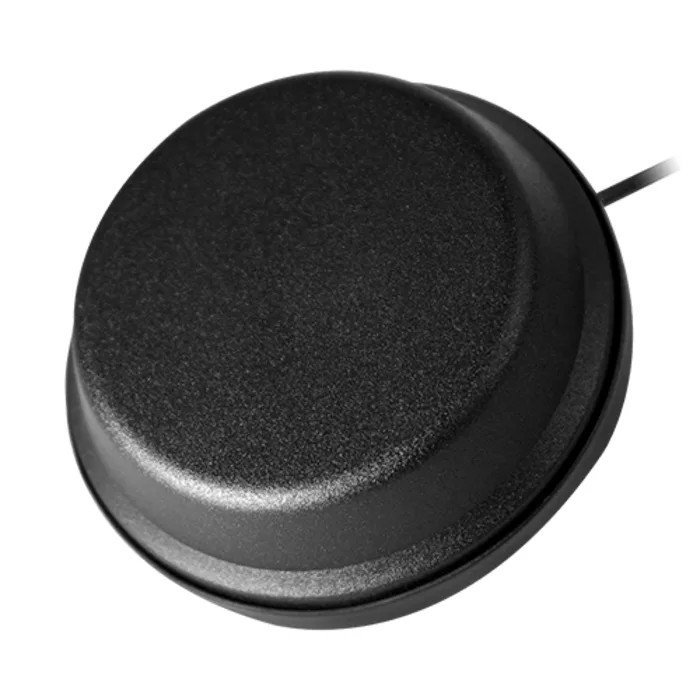

Siretta Puck WiFi Antenna Dual Band 2.4/5.8 GHz ZigBee ISM Bluetooth SMA RP Connector 1m Cable TANGO23/1M/SMAM/S/RP/19
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Siretta |
| Operating Temperature | -40 to +85˚C |

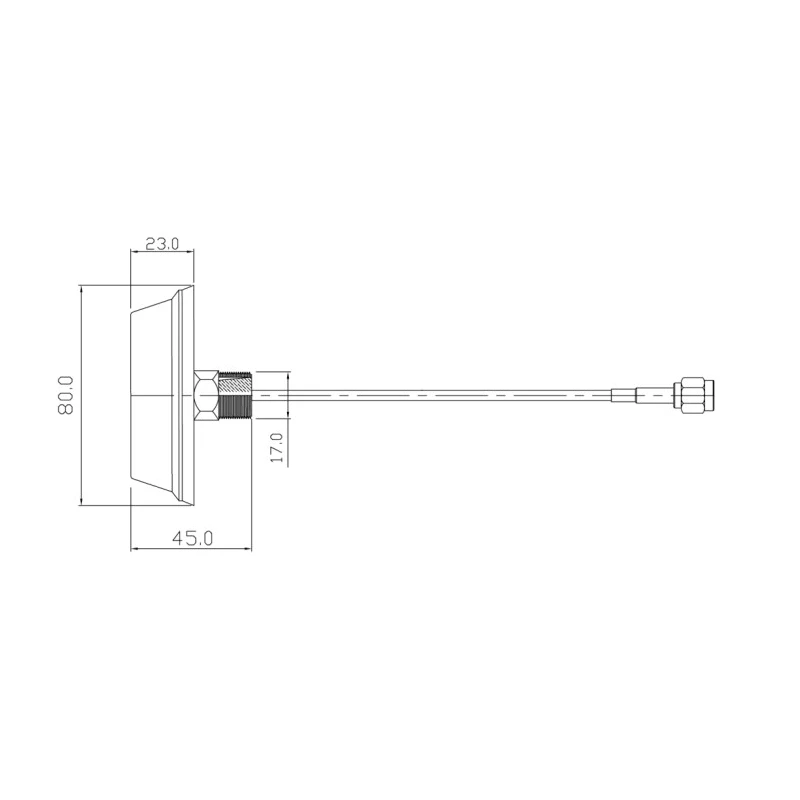

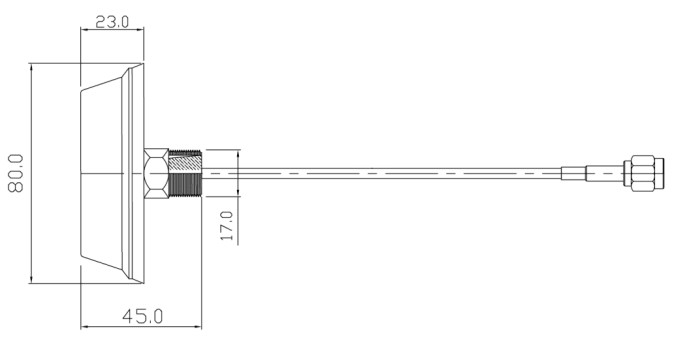

| Dimensions | 23 mm height x 80 mm diameter |
| Operating Temperature Range | -40 to +85 °C |
| Length | 80 mm (diameter) x 23 mm (height, excluding screw thread) |
| Model | TANGO23/1M/SMAM/S/RP/19 |
| Cable Length | 1m |
| Cable | RG174 |
| Connector Type | SMA RP |
| Gross Weight | 80 g |
| Bandwidth | 5.8GHz |
| Series | Tango 23 |
| Connector | RP-SMA Male |
| Polarization | Vertical |
| Gain | 7dB |
| Impedance | 50 Ohm |
| Max Input Power | 50 W |
| Mounting Method | M17 Screw Mount |
| Maximum Frequency | 5.5GHz |
| Connector Gender | Male |
| Minimum Frequency | 2.4GHz |
| RF Protocols | ZigBee, ISM, WiFi, Bluetooth (BLE), IEEE 802.15.4, WiFi (Dual Band), NB IoT, Cat-M, Wi-Fi 6, ISM Band |
| Antenna Physical Form | Puck |
| Directivity | Omni-Directional |
| Antenna Internal Construction | Low Profile |
| Number of Bands | 2 |
| Polarisation | Vertical |
| Radiation | Omnidirectional |
| Mounting Screw Length | 22 mm |
| Max Panel Thickness | 10 mm |
| Radome materials | Nylon PA6 |

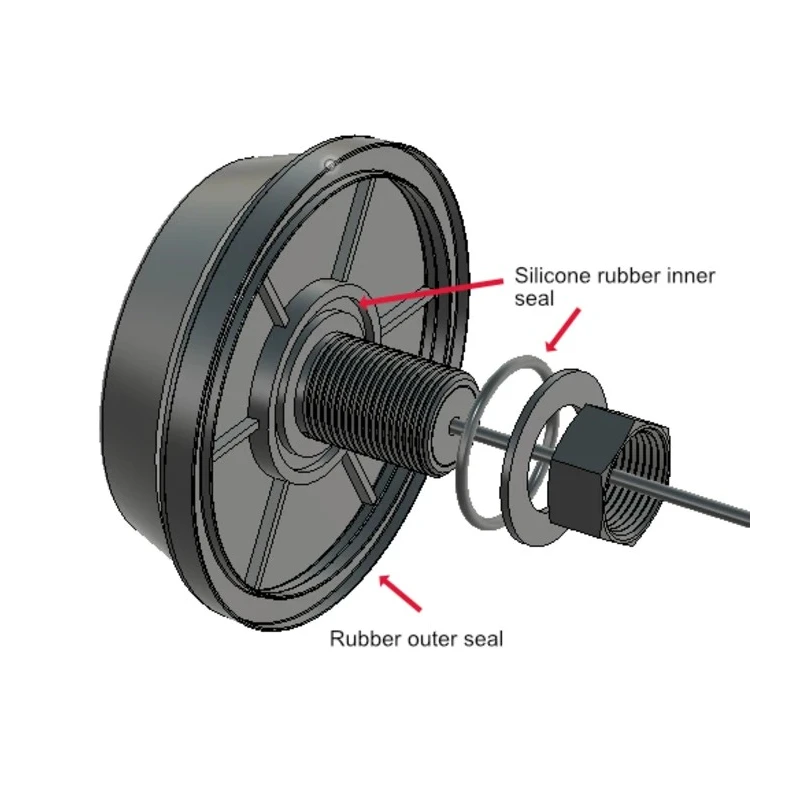

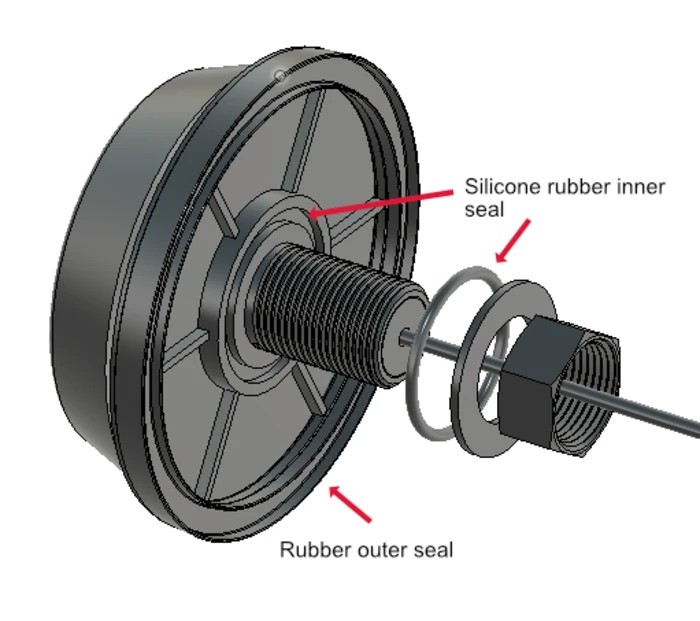

| IP67 rated | Made with a rubber seal gasket to resist water ingress |
| WiFi / WLAN / Bluetooth / ZigBee | 2.4 GHz to 2.5 GHz |
| Dual Band WiFi / WLAN | 5.1 GHz to 5.9 GHz |
| Mounting screw | 22 mm long, 17 mm wide with rubber gasket |
Key Features
- Compact puck form factor measures 80 mm diameter and 23 mm height.
- Supplied with 1 meter low loss RG174 cable with reverse polarity SMA male connector.
- Omni-directional dual band antenna with 7 dB gain performance.
- Rated IP67 with rubber seal gasket for resistance to water ingress.
- Operates reliably within -40 to +85 °C temperature range.
- Compatible with modern WiFi dual band modems and supports LTE 4G/5G, Cat-M, NB IoT bands.
- Mounting by M17 screw mount with 22 mm long screw, fits panels up to 10 mm thick.
- Constructed with durable Nylon PA6 radome for rugged environmental protection.
Product Description
Siretta TANGO23/1M/SMAM/S/RP/19 is a high-quality dual band puck WiFi antenna designed for industrial, commercial, and telecommunications applications supporting wireless protocols including ZigBee, ISM, WiFi, Bluetooth (BLE), IEEE 802.15.4, NB IoT, Cat-M, and Wi-Fi 6.
With a compact puck-shaped form factor of 80 mm diameter and 23 mm height, the antenna offers omni-directional radiation and a gain of 7 dB across its operating bands from 2.4 GHz to 5.5 GHz. It terminates with a reverse polarity SMA male connector attached via a 1 meter low loss RG174 cable, optimized for low signal loss.
The Tango 23 antenna is IP67 rated with a rubber seal gasket ensuring water ingress resistance, making it suitable for both indoor and outdoor mounting applications. It supports mounting via an M17 screw mount, with a mounting screw length of 22 mm, accommodating panel thicknesses up to 10 mm. The external radome is constructed from Nylon PA6, providing durability and weather resistance.
Operating temperature range is wide from -40 to +85 °C, ensuring performance in harsh environments. Besides dual WiFi bands, this antenna supports some LTE 4G, 5G, LTE Cat M, LTE NB, and NR bands for extended cellular connectivity.
Compact puck shape with 80 mm diameter and 23 mm height. Dual band operation covering 2.4 GHz and 5.8 GHz WiFi, ZigBee, Bluetooth BLE, and ISM frequencies. Reverse polarity SMA male connector on 1 meter RG174 cable. Omni-directional radiation with 7 dB gain and 50 Ohm impedance.
IP67 rated enclosure with rubber seal gasket for water resistance. Mounting via M17 screw mount with 22 mm screw length, suitable for panels up to 10 mm thick. Durable Nylon PA6 radome for environmental protection. Wide temperature range: -40 to +85 °C suitable for industrial uses.
Supports additional cellular bands including LTE 4G/5G and NB IoT.
This antenna is ideal for robust WiFi and ZigBee wireless network installations in industrial, laboratory, commercial, and outdoor environments. Browse EnvMart's extensive category for advanced WiFi Antennas and connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably within a temperature range of -40 to +85 °C.
This model has a gain performance of 7 dB across its operating bands.
The antenna has a diameter of 80 mm and a height of 23 mm, excluding the screw thread.
It can be mounted using an M17 screw mount, accommodating panels with a maximum thickness of 10 mm.
This model supports ZigBee, ISM, WiFi, Bluetooth (BLE), IEEE 802.15.4, NB IoT, Cat-M, and Wi-Fi 6.
It is IP67 rated, featuring a rubber seal gasket for resistance to water ingress.
The maximum input power is rated at 50 W.
The antenna has a vertical polarization.
The external radome is constructed from Nylon PA6, providing durability and weather resistance.
The antenna has an impedance of 50 Ohm.
It supports a frequency range from 2.4 GHz to 5.5 GHz, covering dual band WiFi and other protocols.
