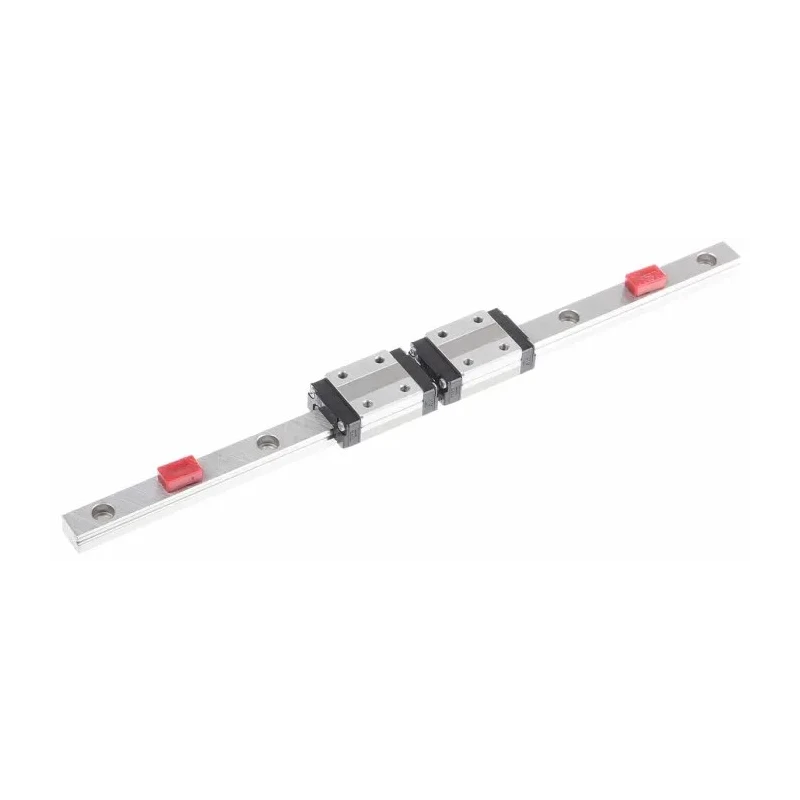

NSK Compact Series Linear Guide with 220mm Rail Length, Carbon Steel Rail, Dynamic Load 1.86kN, Static LH100220ANK1B01PN1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | NSK |
| Model | LH100220ANK1B01PN1 |
| Series | LH |
| Static Load Rating | 3.92kN |
| Dynamic Load Rating | 1.86kN |
| Rail Width | 10mm |
| Rail Length | 220mm |
| Carriage Length | 31mm |
| Carriage Width | 20mm |
| Rail Material | Carbon Steel |
| NSK Linear Guide LH100120ANK1B01PN1, LHBrand | NSK |
Key Features
- Manufactured with carbon steel rail offering durability and high impact load resistance.
- Compact design ideal for precision linear motion applications.
- Dynamic load capacity of 1.86 kiloNewtons for reliable operation under load.
- Static load rating of 3.92 kiloNewtons ensures steady performance with minimal deflection.

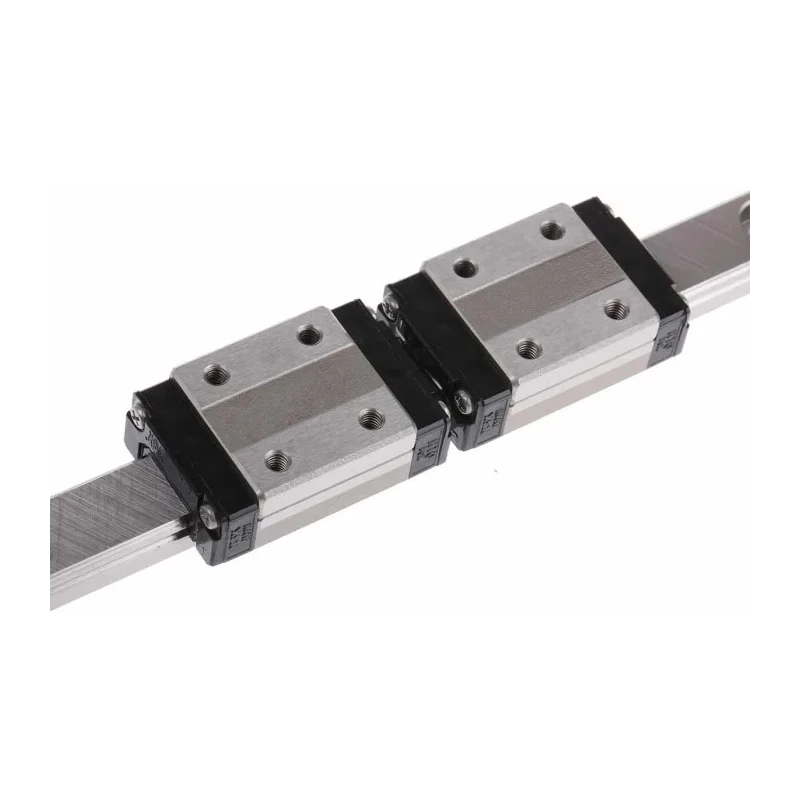

- Pre-fitted carriage measuring 20mm width by 31mm length for easy installation.
- Corrosion-resistant martensitic stainless steel components enhance lifespan and reduce maintenance.
- Designed with ball cage to retain balls when carriage is removed from the rail.
- Produced in Japan ensuring high manufacturing standards and reliability.
Product Description
NSK LH100220ANK1B01PN1 Compact Series Linear Guide is engineered for precision motion control in industrial applications requiring high vertical load capacities and excellent durability.
This linear guide features a 220mm carbon steel rail width of 10mm combined with a pre-fitted carriage 20mm wide and 31mm long, enabling robust support for a variety of mechanical machinery setups.
The LH series design offers a large self-aligning property ensuring smooth linear movement and accommodating slight misalignments without compromising performance.
The guide's dynamic load rating of 1.86kN and static load rating of 3.92kN allow it to handle significant forces, which is critical in demanding environments such as manufacturing automation, CNC machinery, and robotics.
Martensitic stainless steel components provide high corrosion resistance, making it suitable for usage in diverse industrial conditions that require longevity and reliability with minimal maintenance requirements.
The ball cage design retains balls even when the carriage is separated from the rail, supporting ease of maintenance and assembly. Being manufactured in Japan, NSK Linear Guides meet stringent quality standards expected in the industrial tools domain.
Manufactured with carbon steel rail for exceptional strength and wear resistance. 220mm rail length with 10mm width offers a compact footprint fitting many machine designs. Pre-fitted carriage 20mm width by 31mm length designed for high impact loads.
Dynamic load rating of 1.86kN ensures reliable movement under dynamic conditions. Static load rating of 3.92kN secures mechanical stability at rest. High corrosion resistant martensitic stainless steel parts enhance operational lifespan.
Large self-aligning property accommodates installation variances. Ball cage design facilitates easier maintenance and assembly.
This component is suitable for industrial machinery, manufacturing automation, lab equipment, CNC machines, and other applications demanding accurate Linear Motion control with durability and high load capacity.
Explore NSK Linear Guide series and related components at EnvMart for reliable mechanical power transmission solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load capacity of this linear guide is 1.86 kiloNewtons (kN).
The static load rating of this model is 3.92 kiloNewtons (kN).
This linear guide features a carbon steel rail and martensitic stainless steel components for enhanced corrosion resistance.
The pre-fitted carriage measures 20mm in width and 31mm in length.
The rail length is 220mm and the rail width is 10mm.
The self-aligning property allows for smooth linear movement and accommodates slight misalignments during installation without compromising performance.
This model is suitable for applications such as manufacturing automation, CNC machinery, and robotics that require precise linear motion control.
This linear guide is manufactured in Japan.
The ball cage design retains the balls even when the carriage is removed from the rail, facilitating easier maintenance and assembly.
The carbon steel rail provides exceptional strength and wear resistance, making it suitable for high impact load applications.
The design features a compact footprint with a rail width of 10mm, making it ideal for various mechanical machinery setups.
The dynamic load rating of 1.86kN ensures reliable operation under load, which is critical for performance in demanding environments.
