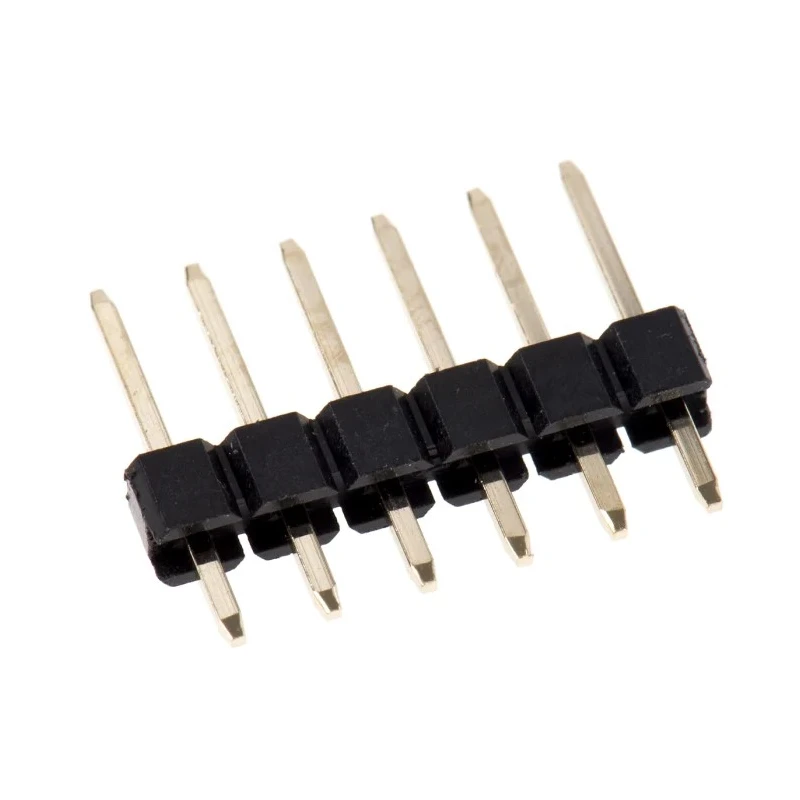

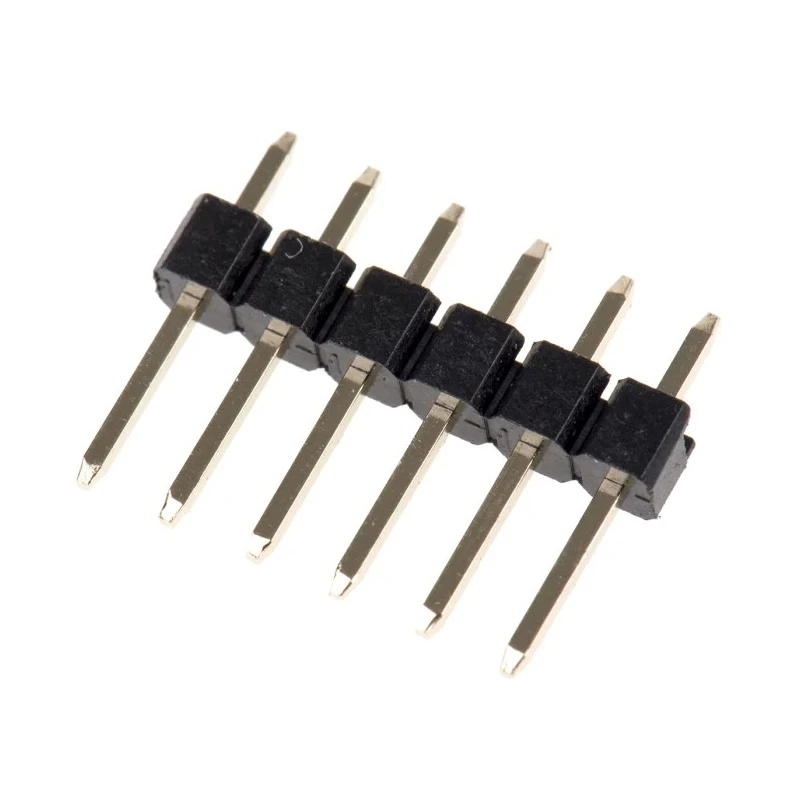

HARWIN M20 Series Straight Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9990645
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-9990645 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Constructed with brass contacts plated in gold for reliable conductivity.
- Housing made from durable nylon withstanding high operating temperatures up to 105°C.
- Designed for through-hole mounting with straight orientation.
- Suitable for solder termination and male contact gender.
- Supports a maximum current of 3 amperes at standard operating temperatures.
- Pin pitch of 2.54 mm and tail pin length of 3 mm for precise PCB fitting.
- Minimum operating temperature rating of -40°C ensures performance in harsh environments.
- Compatible with M20 series PCB sockets and jumpers for versatile configurations.
Product Description
The HARWIN M20-9990645 is a high-quality straight through hole pin header designed for electronic and electrical applications. It features 6 gold-plated brass contacts, arranged in a single row with a standard 2.54 mm pitch. The housing is manufactured from nylon, which allows it to endure reflow soldering processes and operate reliably across a temperature range of -40°C to 105°C.
This pin header supports a maximum current of 3 A and is intended for through hole mounting on printed circuit boards. Its unshrouded design facilitates easy access and connection for board-to-board and wire-to-board use cases. The tail pin length of 3 mm and mating pin length of 6.1 mm ensure secure mechanical and electrical contacts.
Engineered with castellations in the housing, it is possible to cut the header to customized sizes while maintaining mechanical integrity. These connectors are widely used in consumer electronics, communications, industrial monitoring, drives and controls, embedded PCs, and motherboards.
Brass contacts with gold plating enhance electrical conductivity and corrosion resistance. Nylon housing withstands high temperatures and soldering conditions. Multiple configuration options in the M20 series offer design flexibility.
Compatible with various mating pin lengths for application-specific needs. Robust operating temperature range ensures reliability under extreme conditions. Ideal for embedded systems, industrial equipment, and large electronics architectures.
Enables efficient PCB integration with through hole mounting and solder termination. Unshrouded connector allows easier inspection and connection during assembly.
This product is part of the trusted HARWIN M20 series, providing reliable interconnect solutions for industrial and commercial electronics. Browse the Electronics Components category at EnvMart for additional high-quality connectors and related components.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3 amperes.
The pin pitch is 2.54 mm, which is standard for many PCB applications.
It features brass contacts plated in gold for conductivity, and the housing is made from nylon.
The operating temperature range is from -40°C to 105°C, allowing it to perform in harsh environments.
This model has 6 contacts arranged in a single row.
It is designed for through-hole mounting on printed circuit boards.
The tail pin length is 3 mm, which ensures a secure fit on the PCB.
Yes, it is intended for solder termination, making it easy to connect to PCBs.
It supports board-to-board and wire-to-board connections.
Yes, the housing has castellations that allow for cutting the header to customized sizes while maintaining integrity.
The contact gender is male, designed for mating with female connectors.
This model is part of the HARWIN M20 series, which offers various interconnect solutions.
