Samtec ESW Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder ESW-105-12-G-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec ESW Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder ESW-105-12-G-D

Name: Samtec ESW Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder ESW-105-12-G-D
Brand: Samtec
SKU: 216228
Price: 2.99 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	550V
Brand	Samtec
Orientation	Straight
Current	5.2A
Model	ESW-105-12-G-D
Mount Type	Through Hole
Special Features	Standard and low insertion force contacts with standard solder tails
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	ESW
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Connector System	Board-to-Board
Contact System	Tiger Buy™

Key Features

Designed for board-to-board connector applications.
Features a 2.54 mm pitch and two rows of 10 contacts each.
Constructed with black glass filled polyester housing for durability.
Contacts are bronze with gold plating for reliability and corrosion resistance.
Supports operating voltage up to 550V and a current rating of 5.2A.
Mounting type is through hole with a straight orientation.
Operates reliably from -55°C up to 125°C.
Includes standard and low insertion force contacts with standard solder tails.

Product Description

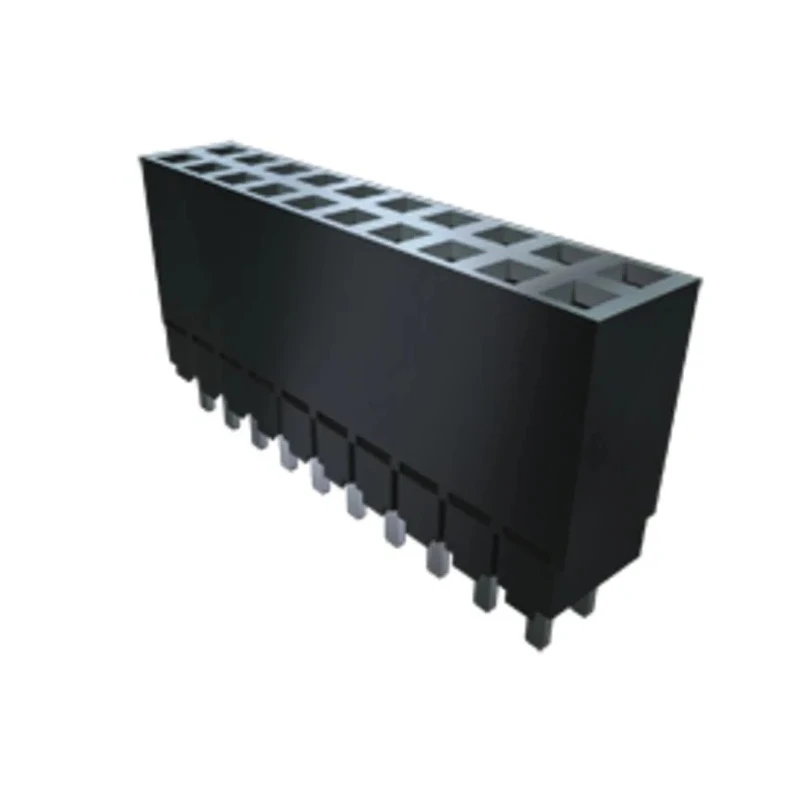

Samtec ESW-105-12-G-D is a high-quality Straight Through Hole PCB Socket designed with 10 contacts arranged in 2 rows, featuring a 2.54 mm pitch suitable for elevated single and double row configurations up to 72 pins. This connector facilitates reliable board-to-board connections with a termination type that uses through-hole soldering, ensuring robust mechanical and electrical performance.

The housing is manufactured from black glass filled polyester, providing excellent durability and insulation. The contacts are made of bronze and plated with gold, enhancing conductivity and resistance to corrosion. This product supports an operating voltage of up to 550V and a current rating of 5.2A, making it suitable for a range of electronic applications.

Operating within a temperature range of -55°C to 125°C, it is engineered for demanding industrial environments. The connector features the Tiger Buy™ contact system known for its reliability and ease of mating, offering both standard and low insertion force contact options with standard solder tails.

This PCB socket is ideal for electronic manufacturing, industrial automation, laboratory instruments, and commercial PCB assembly requiring durable and efficient board-to-board connections. It supports elevated mounting configurations to accommodate various PCB stack heights effectively.

Designed for board-to-board connector applications. 10 contacts arranged in 2 rows with 2.54 mm pitch. Black glass filled polyester housing for durability. Bronze contacts with gold plating for corrosion resistance. Supports 550V voltage and 5.2A current rating.

Through hole solder termination with straight orientation. Operates from -55°C up to 125°C temperature range. Tiger Buy™ contact system for secure connections. Includes standard and low insertion force contacts with solder tails.
