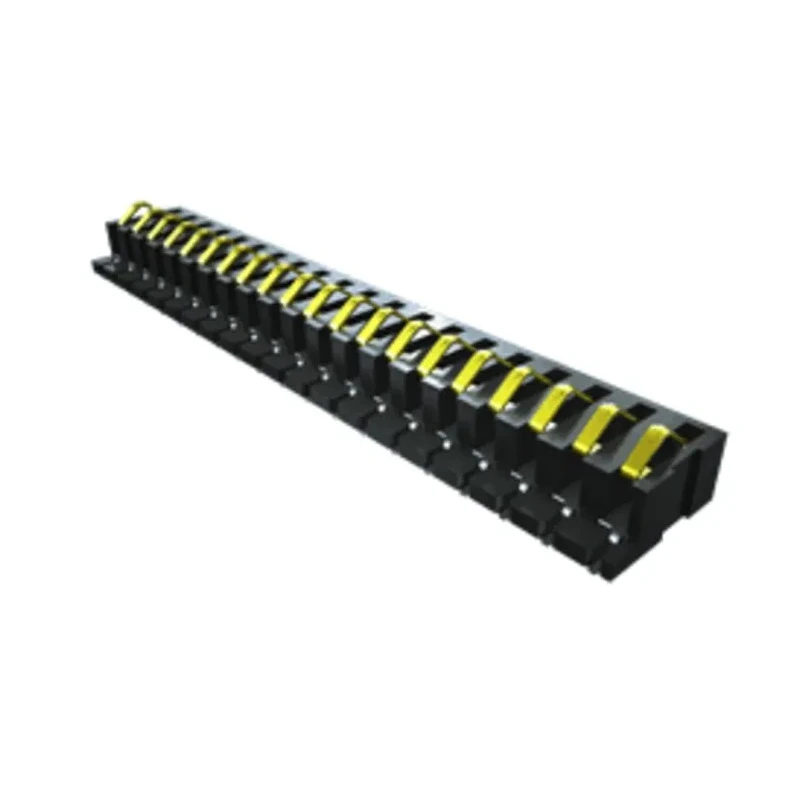

Samtec SIB Series Straight Surface PCB Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Shrouded SIB-104-02-F-S-LC

Free Delivery in India | Lowest Global Shipping Charges

Samtec SIB Series Straight Surface PCB Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Shrouded SIB-104-02-F-S-LC

Name: Samtec SIB Series Straight Surface PCB Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Shrouded SIB-104-02-F-S-LC
Brand: Samtec
SKU: 215940
Price: 3.72 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	280V
Brand	Samtec
Orientation	Straight
Current	2.6A
Model	SIB-104-02-F-S-LC
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	SIB
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

This PCB header features a single row of 4 male contacts.
The connector is shrouded for protection and reliable mating.
It has a pitch of 2.54 mm between contacts.
The housing is made from durable liquid crystal polymer.
Contacts are made of phosphor bronze with gold plating to ensure excellent conductivity.
Designed for surface mount installation on PCBs.
Rated for 280V and 2.6A current capacity.
Operating temperature ranges from -55°C to 125°C.

Product Description

Samtec SIB-104-02-F-S-LC is a straight surface PCB header within the SIB series, featuring 4 contacts in a single row with a standard 2.54 mm pitch. This shrouded, male connector is designed for board-to-board electronic component connections.

The housing material consists of liquid crystal polymer, offering high thermal resistance and durability, making it ideal for demanding industrial and electronics manufacturing applications.

Contacts are manufactured from phosphor bronze, gold plated to provide reliable electrical contact and resistance to corrosion. The solder termination type ensures secure mounting on printed circuit boards.

The connector operates effectively across a wide temperature range from -55°C to 125°C, and is rated to carry electrical current up to 2.6A at a maximum voltage of 280V, suitable for various electronic and electrical applications.

This product features a single-row design with 4 gold-plated male contacts for enhanced electrical performance. The shrouded design ensures connector alignment and protection during mating. The connector system supports board-to-board applications facilitating compact PCBs.

The robust liquid crystal polymer housing withstands thermal and mechanical stresses. Operating temperature and current rating allow usage in industrial, manufacturing, and electronic device assembly environments. The connector’s 2.54 mm pitch is compatible with standard PCB layouts.

Ideal for electronics manufacturing, prototype development, industrial control systems, communication equipment, and general electronic assembly applications. Explore a broad range of PCB Headers and connectors for your project needs at EnvMart.
