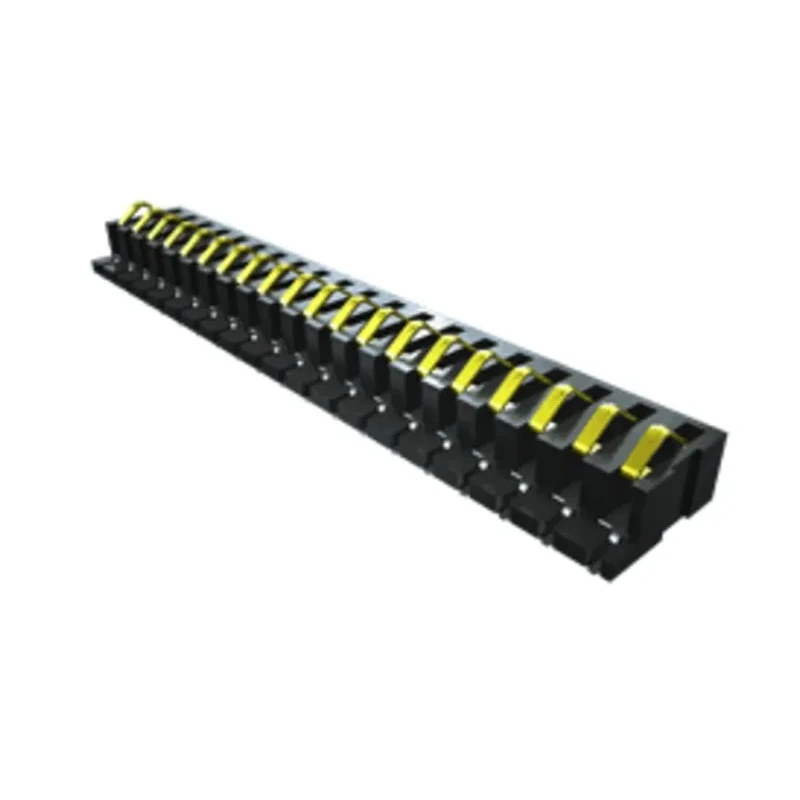

Samtec SIB Series Straight Surface PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Shrouded SIB-112-02-F-S-LC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 280V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.6A |
| Model | SIB-112-02-F-S-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SIB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Features 12 gold-plated phosphor bronze contacts for superior conductivity.
- Single row, shrouded male contact design enhances mating protection.
- Surface mount type ensures easy PCB installation.
- Operates within -55°C to 125°C temperature range.
- Rated for 2.6 A current and 280 V voltage for reliable performance.
- Includes 2.54 mm row pitch compatible with standard spacing.
- Termination by solder for secure electrical connection.
Product Description
Samtec SIB-112-02-F-S-LC is a high-quality SIB Series Straight Surface PCB Header, ideal for electronic assembly applications requiring reliable board-to-board connections. This component features 12 gold-plated phosphor bronze contacts arranged in a single row with a 2.54 mm pitch, providing secure electrical conductivity.
The housing is made from liquid crystal polymer, offering excellent mechanical strength and thermal stability. Its shrouded design protects the contacts during mating cycles and reduces the risk of misalignment.
Designed for surface mount applications, this PCB header is well-suited for a variety of industrial uses in electronics manufacturing, communication equipment, and instrumentation.
It supports a maximum current rating of 2.6 A and voltage rating of 280 V, allowing reliable operation within the temperature range of -55°C to 125°C. The solder termination type ensures robust connections, making it suitable for high-density PCB layouts requiring precise contact spacing of 2.54 mm.
Constructed with liquid crystal polymer housing for mechanical durability and temperature resistance. 12 gold-plated phosphor bronze contacts provide excellent electrical conductivity. Single row with shrouded male contacts enhances connection security and protection.
Surface mount design enables straightforward PCB assembly processes. Operates reliably from -55°C up to 125°C in various industrial environments. Rated for 2.6 A current and 280 V voltage for versatile electronic applications.
Standardized 2.54 mm pitch ensures compatibility with common PCB layouts. Solder termination guarantees secure and stable electrical connections.
This PCB header is suitable for use in industrial, manufacturing, and communication electronics applications, where dependable board-to-board connections are essential. Browse more from Samtec and explore the full range of PCB Headers and connectors on EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 2.6 A, ensuring reliable performance in various applications.
It is rated for a maximum voltage of 280 V, making it suitable for a range of electronic applications.
The operating temperature range for this unit is -55°C to 125°C, allowing it to function in diverse environments.
The housing is made from liquid crystal polymer, while the contacts are crafted from phosphor bronze with gold plating for enhanced conductivity.
This model features 12 contacts arranged in a single row, designed for secure electrical connections.
The contact pitch is 2.54 mm, which is compatible with standard PCB layouts.
It uses solder termination, ensuring a secure and stable electrical connection during assembly.
Yes, this unit is designed for surface mount applications, facilitating straightforward PCB assembly processes.
It utilizes a board-to-board connector system, ideal for reliable connections between PCBs.
The shrouded design of the male contacts enhances mating protection and reduces the risk of misalignment during connections.
The country of origin for this model is India, indicating where it is produced.
The contacts are oriented straight, which is typical for many PCB header applications.
