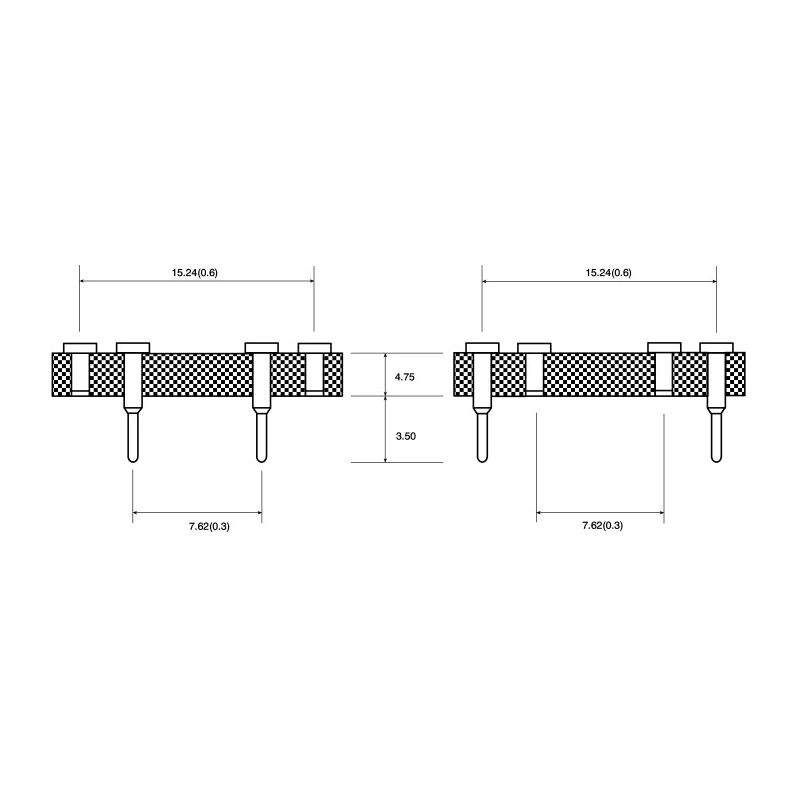

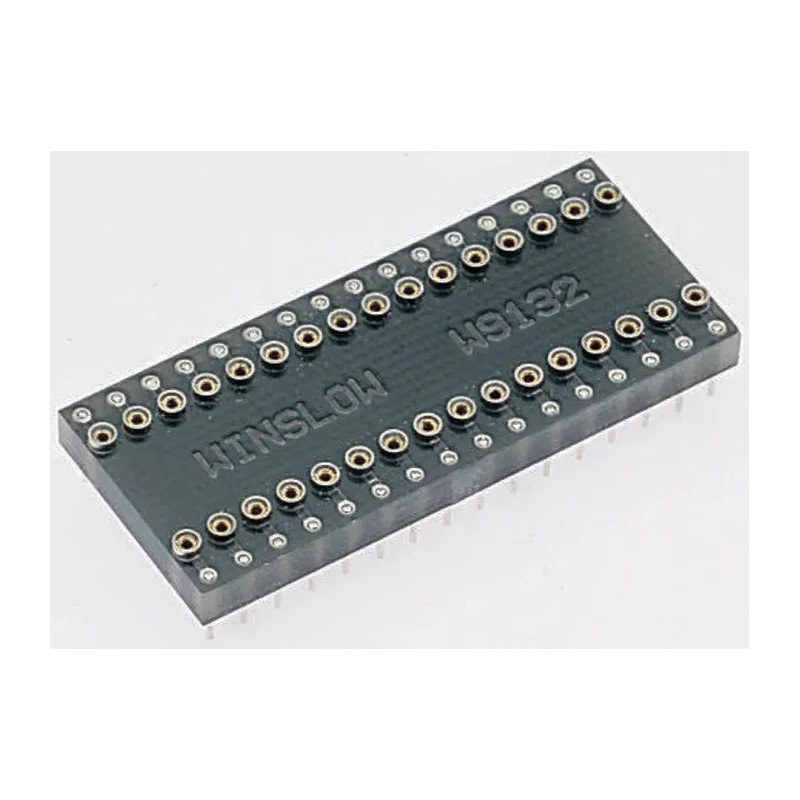

Winslow Straight Through Hole Mount 7.62 mm Pitch IC Socket Adapter, DIP to DIP W9115RC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9115RC |
| Mount Type | Through Hole |
| Housing Material | FR4 |
| Contact Material | Brass |
| Pitch | 7.62mm |
| Contact Plating | Gold over Nickel |
| Connection Gender A | Female |
| Connection Gender B | Male |
| PCB | Epoxy Fibreglass FR4 |
| Connection A | DIP |
Key Features
- Facilitates conversion between dual in-line packages of different pitches.
- Features gold over nickel contact plating for excellent conductivity and corrosion resistance.
- Constructed with brass contact material and FR4 epoxy fibreglass housing for durability.
- Designed for through hole mounting with a straight orientation.
- Connection A is female DIP and connection B is male DIP for expanded compatibility.
- Made in United Kingdom ensuring quality manufacturing standards.
- Ideal for electronics prototyping, development, and PCB design adaptations.
- Suitable for industrial and laboratory electronic component applications.
Product Description
Winslow W9115RC IC Socket Adapter is a high-quality straight through hole mount adapter providing a 7.62 mm pitch for dual in-line package (DIP) to DIP connections. The adapter allows seamless conversion between different DIP pitches, reducing development costs by enabling board adaptability without full redesign.
This DIP expansion and reduction socket features contacts plated with gold over nickel, ensuring superior electrical conductivity and corrosion resistance over extended use. The contact material is brass, combined with a durable housing made from FR4 epoxy fibreglass, contributing to the mechanical stability and reliable mounting on PCBs.
The mounting type is through hole, which allows for straightforward installation in electronic circuit boards supporting a straight orientation for optimal connection alignment. Connection A is a female DIP interface, and connection B is a corresponding male DIP interface, supporting package flexibility.
Manufactured in the United Kingdom, this IC socket adapter is suited for use in industrial, laboratory, and commercial electronics R&D environments. It enables easy adaptation of devices and facilitates efficient prototyping and testing workflows.
Facilitates conversion between dual in-line packages of different pitches. Contact plating is gold over nickel for enhanced reliability. Brass contact material with durable FR4 epoxy fibreglass housing. Through hole mount with straight orientation for secure PCB integration.
Female DIP to male DIP connection configuration supports compatibility. Designed and manufactured in the United Kingdom to high standards. Highly suitable for electronics prototyping and industrial applications. Reduces PCB redesign costs by adapting package pitches effectively.
Explore more IC Socket Adapters from Winslow in the Electronics & Electricals category at EnvMart for tailored electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this IC socket adapter is 7.62 mm, facilitating connections between dual in-line packages (DIP) of different pitches.
It uses a through hole mounting type, allowing for straightforward installation on electronic circuit boards.
The contact material is brass, and the housing is made from FR4 epoxy fibreglass, contributing to its mechanical stability.
The Winslow W9115RC features a female DIP connection at one end and a male DIP connection at the other, enhancing compatibility.
It is manufactured in the United Kingdom, ensuring adherence to quality manufacturing standards.
The orientation of the adapter is straight, which supports optimal connection alignment during installation.
The contacts are plated with gold over nickel, which enhances electrical conductivity and corrosion resistance.
It is suitable for electronics prototyping, development, and PCB design adaptations, as well as industrial and laboratory electronic component applications.
The housing is made from FR4 epoxy fibreglass, which provides durability and stability for the adapter.
Key features include gold over nickel contact plating, brass contact material, and a straight through hole mount design for easy installation.
It allows for easy adaptation of devices by providing a flexible connection between different DIP configurations, streamlining prototyping and testing workflows.
