Schaffner Chassis Mount EMI Filter Fast-On 1 Phase 1A 250V AC/DC 0-400 Hz FN2010

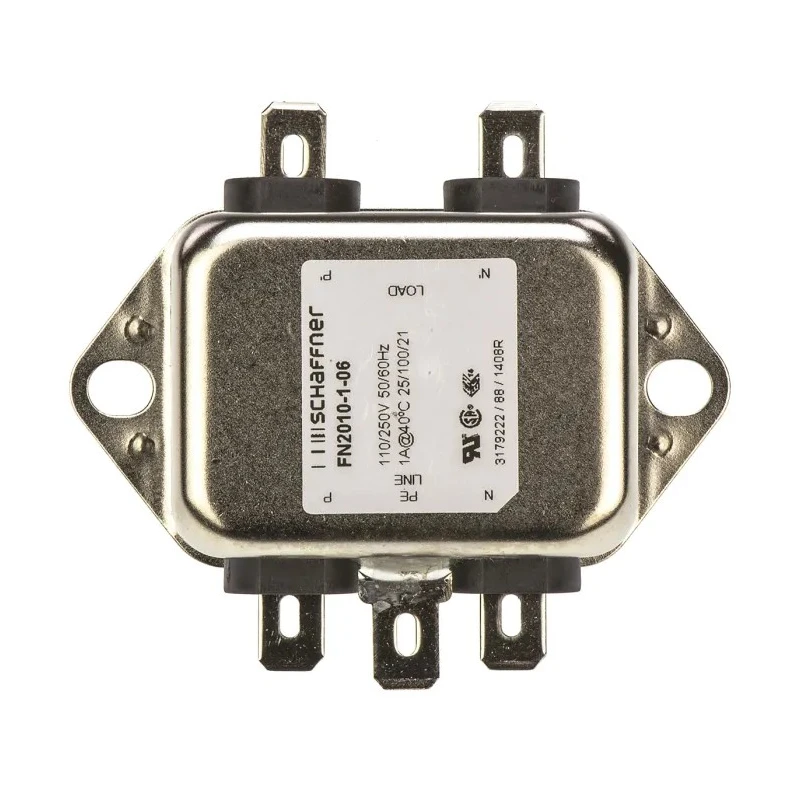

Schaffner FN2010 chassis mount EMI filter model FN2010-1-06 delivers reliable electromagnetic interference suppression for electronic equipment operating at up to 1A current and 250V AC/DC voltage. The filter supports AC and DC frequencies ranging from 0 Hz up to 400 Hz, making it suitable for industrial and commercial power line interference mitigation.

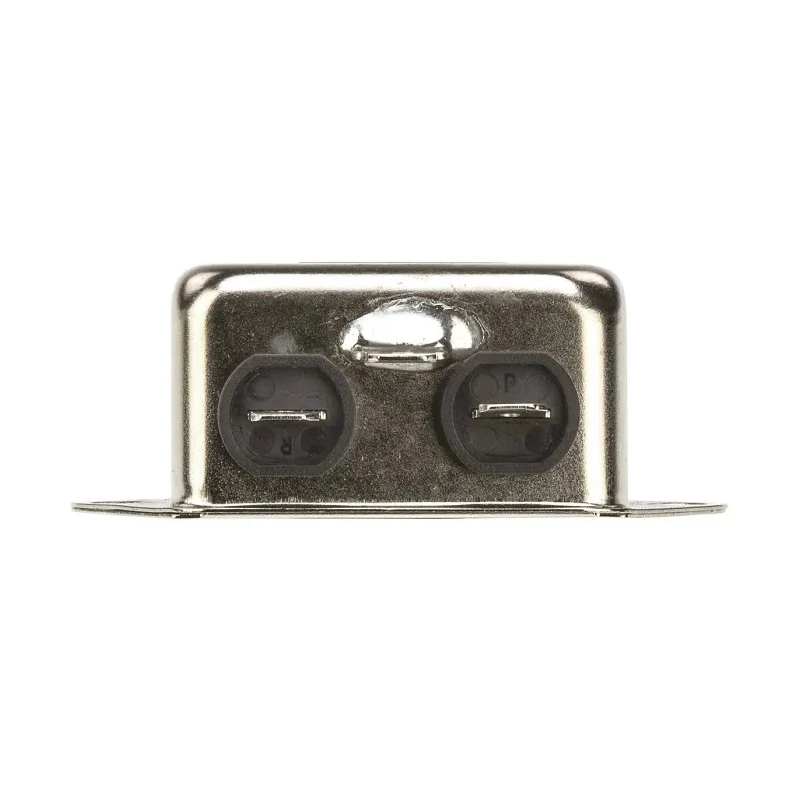

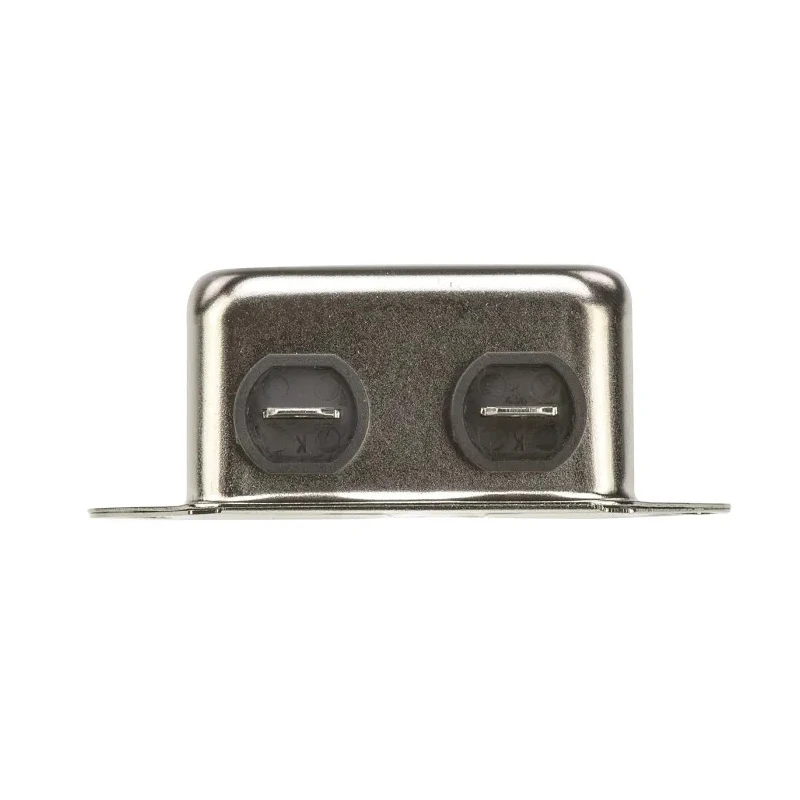

The EMI filter features a robust aluminium case designed for chassis mounting and is terminated with Fast-On connectors, facilitating secure and convenient installation in control panels and electronic enclosures. Its compact dimensions of 64mm length, 35mm depth, and 24.3mm height allow integration in space-constrained applications.

Technical parameters include a capacitance of 100nF and inductance of 12mH, which provide effective noise filtering performance while maintaining a low resistance of 1mΩ and leakage current of 740μA. The unit operates efficiently with a power loss of only 0.8W, ensuring minimal energy waste during operation. It is engineered to function safely across a temperature range from -25°C to 100°C.

This filter is a UL recognized component, CSA certified, and VDE approved, confirming compliance with established safety and quality standards. The FN2010 series is widely used in industrial electronics, power supplies, laboratory equipment, HVAC controls, and manufacturing automation for noise reduction and electromagnetic compatibility enhancement.

Schaffner’s FN2010 EMI filter provides dependable suppression of conducted and radiated interference, enhancing system reliability and reducing electromagnetic disturbance in sensitive environments. Its chassis mount and Fast-On terminal design simplify installation and maintenance in diverse industrial setups.

Designed for single-phase power line EMI filtering applications. Compact aluminium case with chassis mount design. Fast-On terminals ensure secure and easy connection. Capacitance rating of 100nF and inductance of 12mH for effective noise suppression.

Operates reliably between -25°C and 100°C temperatures. Low resistance of 1mΩ and leakage current of 740μA for minimal power loss. Power loss is only 0.8W ensuring energy efficiency. Dimensions: length 64mm, depth 35mm, height 24.3mm for compact installation.

UL recognized component, CSA certified, and VDE approved for quality assurance. Explore more high-quality EMI Filters and power line noise suppression solutions in the Electronics Components category on EnvMart.
