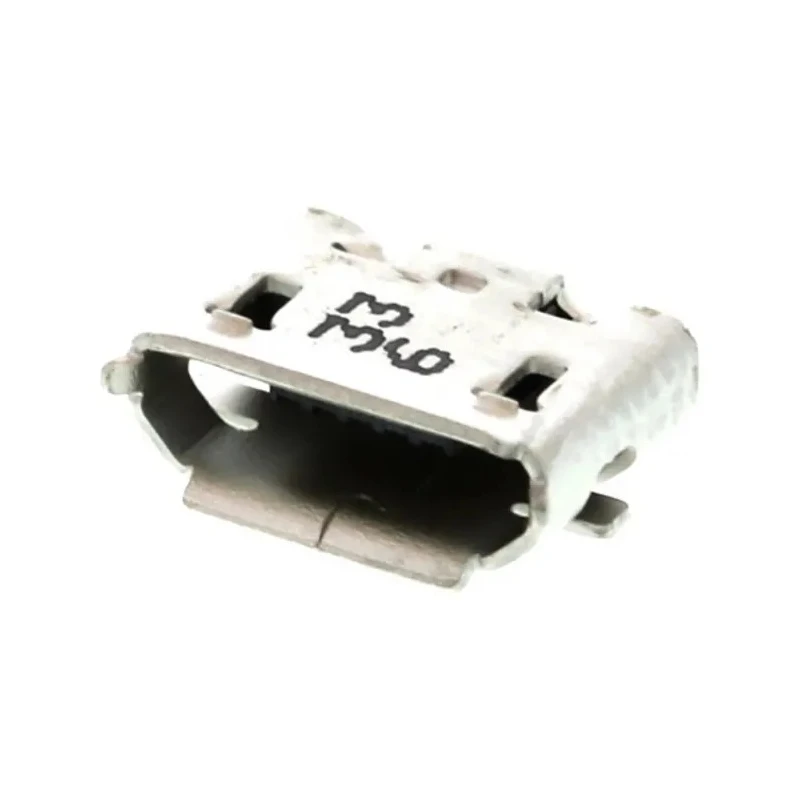

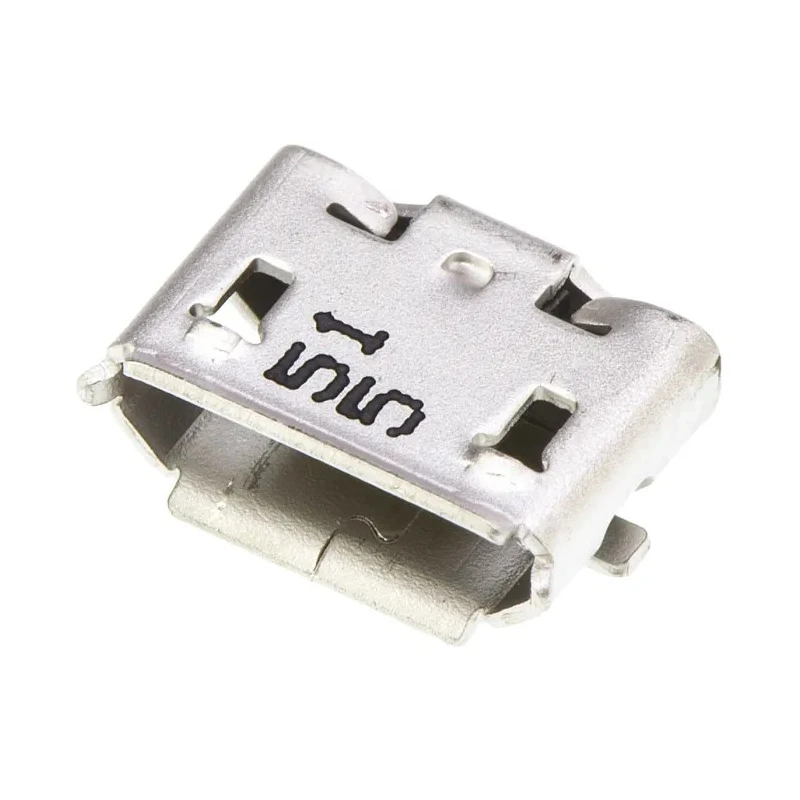

Molex Right Angle Surface Mount Female 1 Port Micro USB Type B Connector USB 2.0 47346-0001

Molex 47346-0001 is a precision-engineered right angle surface mount female USB connector designed for Micro USB Type B connections compliant with USB 2.0 standards. It is crafted to meet the demanding requirements of modern electronic components, power, and connector applications.

This connector is specifically built for surface mounting on printed circuit boards, providing reliable mechanical retention and electrical performance. It supports a maximum current of 1.8 amperes and a voltage rating of 30 volts, making it suitable for a range of electronic devices requiring durable and efficient connectivity solutions.

The termination of this connector uses solder, ensuring permanent and stable electrical connections. Its contacts are made from copper alloy, chosen for excellent conductivity and long-lasting use under various operating conditions.

Operating temperature ranges from -30°C to 85°C guarantee reliability in diverse environmental conditions typical of industrial, commercial, and consumer electronics manufacturing.

Its right angle orientation helps in optimizing the design layout by allowing efficient cable management and space utilization. This connector comes as a single-port unit, fitting applications where space and compact design are critical.

The Molex 47346-0001 is lead-free and RoHS compliant, adhering to environmental and safety standards expected in current electronics manufacturing. Constructed for surface mount on PCBs ensuring reliable mechanical stability.

Supports a current rating of 1.8A for efficient power delivery. Operates within a voltage limit of 30V suitable for various electronic devices. Designed with copper alloy contacts for excellent conductivity and durability.

Compatible with USB 2.0 specification for data transfer and connectivity. Features a right angle orientation to optimize PCB layout and cable routing. Operates safely within temperature range from -30°C to 85°C. Termination type is solder, providing secure electrical connections.

Single-port connector ideal for compact device applications. Manufactured following standard series 4734 with lead-free, RoHS compliant materials. This USB Connector is extensively used in electronics, communications, power connectors, automation, and manufacturing industries where precision and reliability are paramount.
