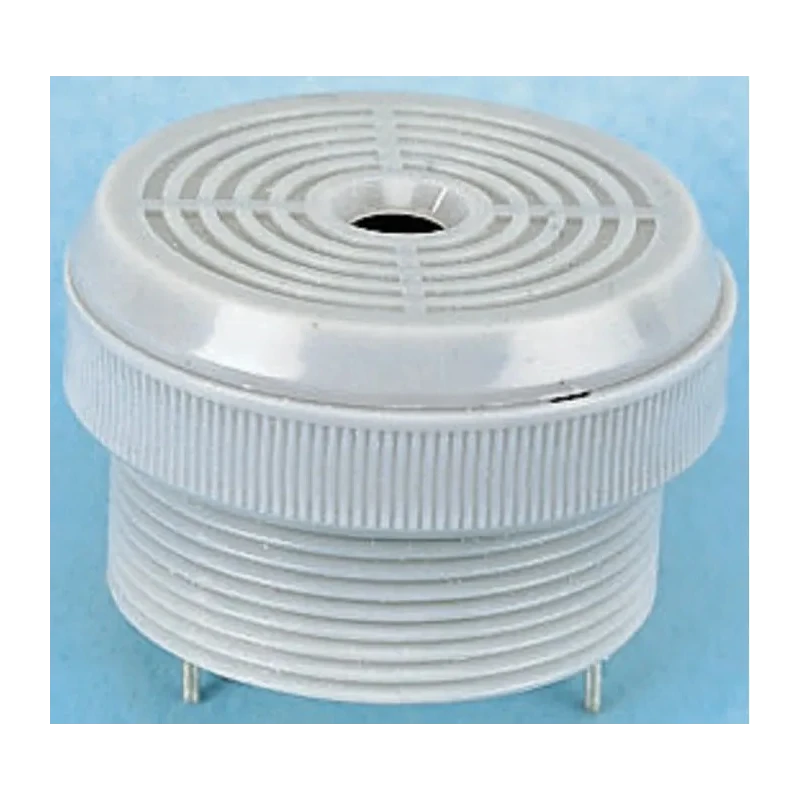

RS PRO 87 dB Panel Mount Continuous Internal Buzzer 4 V dc Min 28V dc Max 36.5mm Diameter 32mm Height 622-1528

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 87 dB Panel Mount Continuous Internal Buzzer 4 V dc Min 28V dc Max 36.5mm Diameter 32mm Height 622-1528

Name: RS PRO 87 dB Panel Mount Continuous Internal Buzzer 4 V dc Min 28V dc Max 36.5mm Diameter 32mm Height 622-1528
Brand: RS PRO
SKU: 199936
Price: 22.59 USD
Availability: InStock



Category Piezo Buzzers Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Diameter	36.5mm
Brand	RS PRO
Sound Level	87dB
Height	32mm
Model	622-1528
Drive Type	Internal
Mount Type	Panel Mount
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Maximum Frequency	4.1kHz
Maximum Supply Voltage	28V dc
Minimum Supply Voltage	4V dc
Supply Current	14mA
Tone Type	Continuous
Minimum Frequency	3100Hz

Key Features

Operates between 4 V dc minimum and 28 V dc maximum supply voltage for versatile use.
Produces sound at frequencies from 3.1 kHz minimum to 4.1 kHz maximum.
Compact dimensions of 36.5 mm diameter and 32 mm height facilitate easy panel mounting.
Low current consumption of 14 mA supports efficient energy use.
Designed to operate reliably in temperatures from -30°C to +85°C.
Panel mount design provides secure and convenient installation.
Ideal for use in electronic toys, automotive equipment, and various electronic devices.

Product Description

RS PRO 622-1528 Panel Mount Continuous Internal Buzzer is engineered for industrial and electronic applications requiring a reliable sound alert. This buzzer delivers an 87 dB sound level, ensuring audible alerts in noisy environments. It operates on a low supply current of 14 mA and supports a supply voltage range from 4 V dc to 28 V dc, making it adaptable to various electronic circuits.

The buzzer has a continuous tone with an internal drive, so no external circuitry is needed to generate sound. Its compact form factor, 36.5 mm in diameter and 32 mm in height, allows easy installation on panels using its panel mount design. This makes it suitable for integration into control panels, instrumentation, automotive dashboards, and alarms.

Capable of functioning reliably within a temperature range of -30°C to +85°C, it is suited for harsh environments in industrial, automotive, and consumer electronics sectors. Its frequency range from 3100 Hz to 4100 Hz supports clear and distinct alerts. The buzzer conforms to US and UK electrostatic discharge standards (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007), ensuring protection of sensitive equipment from static damage.

Operates on 4 V dc to 28 V dc supply voltage. Delivers sound at 87 dB loudness with continuous tone. Internal drive type requires no additional circuitry. Panel mount design for secure installation. Operating temperature range from -30°C to 85°C.

Current consumption only 14 mA for power efficiency. Diameter 36.5 mm and height 32 mm dimensionally compact. Conforms to ANSI/ESD and BS EN electrostatic discharge standards.

This buzzer is commonly used in industrial automation, electronic control panels, alarms, toys, and automotive applications where reliable audible output is critical. It is a robust component suitable for environments demanding durability and performance.
