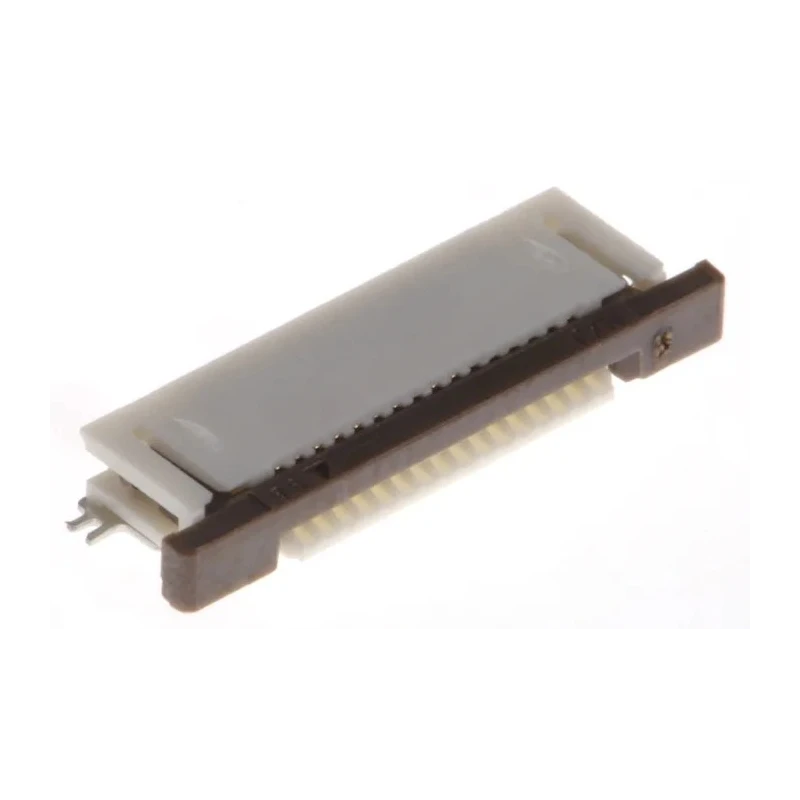

Molex 0.5 mm Pitch 16 Way Right Angle Female FPC Connector, Solder 52746-1671

Molex 52746-1671 is a 0.5 mm pitch, 16 way, right angle female FPC connector designed for surface mount technology with solder termination. Its Easy-On ZIF (Zero Insertion Force) slide type actuator ensures secure connection and ease of use in compact circuit packaging.

The connector features phosphor bronze contacts with gold plating over nickel for enhanced conductivity and corrosion resistance. Its right angle bottom contact position allows for space-saving PCB layouts, while solder tabs provide strain relief and secure mounting on the board.

Rated for 500 mA current and 50 V voltage, this connector operates reliably within a temperature range of -20°C to 85°C, suitable for various industrial and commercial applications.

The hinged actuator design of the 52746 series facilitates easy insertion and firm retention of flat flexible cables (FFC) and flat printed circuits (FPC), making it ideal for use in automotive navigation systems, consumer electronics such as digital cameras and smartphones, medical monitoring devices, and communication equipment.

The nylon housing material offers durability and stability under environmental stress, and the single-row 16-contact configuration at 0.5 mm pitch enables high-density interconnection in confined spaces.

Features a Zero Insertion Force (ZIF) actuator for minimal wear during repeated cycles. Slide type actuator provides secure FPC locking and easy insertion. Phosphor bronze contacts with gold over nickel plating for performance and longevity.

Right angle orientation optimizes PCB layout and wiring harness design. Solder tabs enhance PCB retention and reduce mechanical stress on connections. Suitable operating temperature range from -20°C to 85°C for industrial use.

Designed for automotive, consumer electronics, telecommunications, and medical applications. Space-saving design with single row of 16 contacts at 0.5 mm pitch.

This Molex 52746-1671 connector is ideal for signal and data transmission requiring high-density, reliable, and detachable connections. It complies with standard industrial practices for FPC Connectors and supports zero insertion force mechanisms that extend connector life and improve assembly efficiency.
