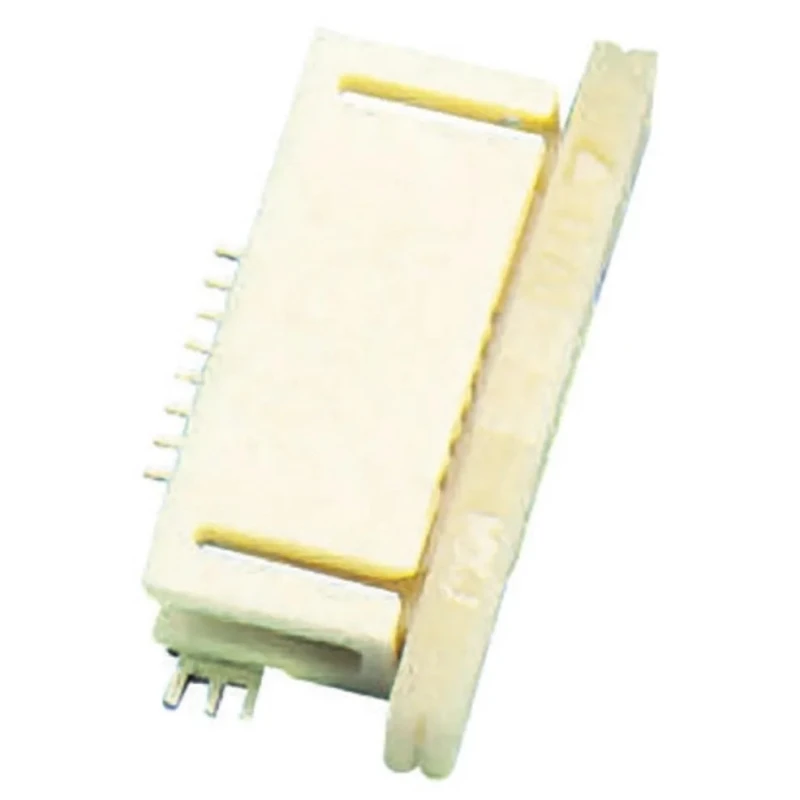

Molex 0.5 mm Pitch 18 Way Right Angle Female Easy-On FPC Connector Solder Termination 52746-1871
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Contact Material | Phosphor Bronze |
| Series | 52746 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features zero insertion force (ZIF) slider actuator for easy and reliable FPC insertion.
- Contacts are phosphor bronze with gold plating for durability and optimal conductivity.
- Designed for right angle orientation with bottom contact position and solder tail termination.
- Supports operating voltage of 50 V and current rating of 500 mA.
- Includes solder tabs for secure retention on PCB and strain relief.
- Suitable for a single row with 18 contacts, providing high-density interconnection.
- Operating temperature range from -20°C to 85°C for broad environmental use.
- Ideal for automotive, consumer electronics, medical devices, and communications applications.
Product Description
Molex 52746-1871 is a 0.5 mm pitch, 18 way right angle female FPC connector designed for high-density, space-constrained electronic assemblies. This Easy-On ZIF connector series offers reliable signal and data connections with a slide type actuator to ensure low insertion force and secure retention of flexible printed circuits.
The connector contacts, crafted from phosphor bronze and plated with gold, ensure excellent conductivity and durability under repeated insertion cycles. The right angle orientation with bottom contact position facilitates PCB layout optimization and flexible cable routing.
Featuring solder tail termination and solder tabs, the connector ensures robust mechanical retention and strain relief on the PCB, enhancing reliability during usage and vibration. It supports an operating voltage of 50 volts and a current rating of 500 milliamps, suitable for low-power signal applications.
The connector operates effectively within a temperature range of -20°C to 85°C, making it appropriate for automotive, consumer electronics, medical, and communication device environments. Its single-row 18-contact configuration allows compact connections in limited space.
Applications include automotive navigation and audio systems, digital cameras, home security devices, tablets, notebooks, patient monitors, GPS units, smartphones, and various other portable and embedded electronics.
Zero Insertion Force slide actuator provides easy and secure connection. Phosphor bronze contacts with gold plating ensure durability and conductivity. Solder tabs provide secure PCB retention and strain relief. Compact 0.5 mm pitch for space-saving PCB layout.
Right angle orientation facilitates flexible cable routing. Reliable contact retention with movable contact design. Explore this Molex FPC Connector and many more quality connector solutions at EnvMart for your industrial, automotive, communication, and consumer electronic integration needs.
