Preci-Dip 2.54 mm Pitch Vertical 8 Way Surface Turned Pin Open Frame DIL Socket 1A 110-87-308-41-105191

Free Delivery in India | Lowest Global Shipping Charges

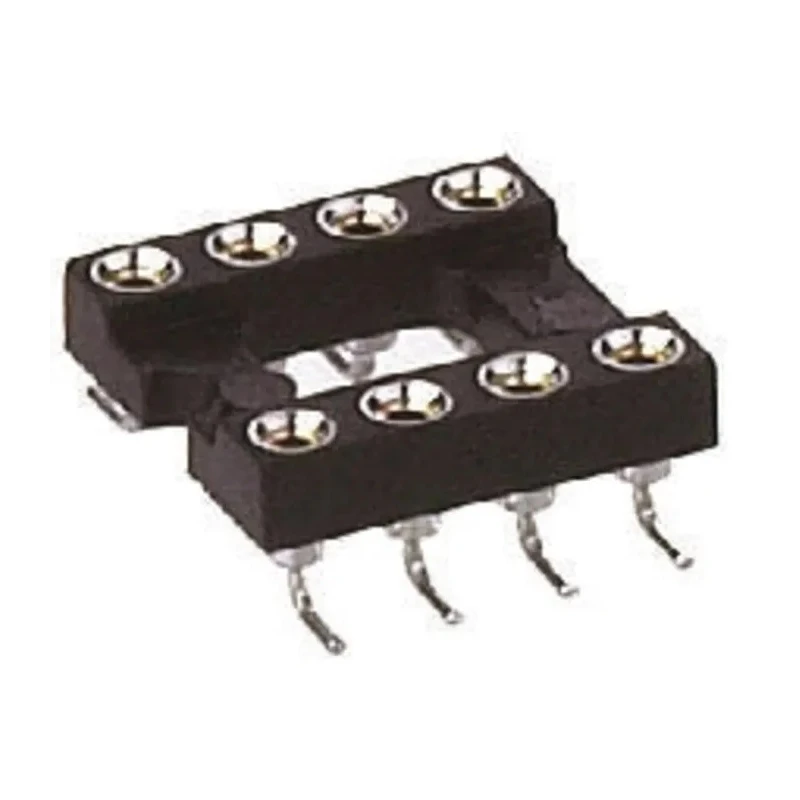

Preci-Dip 2.54 mm Pitch Vertical 8 Way Surface Turned Pin Open Frame DIL Socket 1A 110-87-308-41-105191

Name: Preci-Dip 2.54 mm Pitch Vertical 8 Way Surface Turned Pin Open Frame DIL Socket 1A 110-87-308-41-105191
Brand: Preci-Dip
SKU: 215613
Price: 3.83 USD
Availability: InStock



Category DIL Socket Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V dc
Brand	Preci-Dip
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	10.1mm
Depth	2.8mm
Width	10.1mm
Mount Type	Surface
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass, Beryllium Copper Alloy
Series	110
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Gold, Tin
Number of Contacts	8
Pin Type	Turned
Row Width	7.62mm
Stock numbers	702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar

Key Features

Features a vertical open frame design for easy circuit testing.
Constructed with brass and beryllium copper alloy contacts for durability.
Contact plating combines gold and tin for reliable conductivity.
Supports operating temperatures from -55°C to 125°C.
Designed for surface mounting with solder termination.
Offers 150V DC voltage rating suitable for electronic components.
Housing made from fibreglass reinforced polyethylene terephthalate for robustness.
Compact dimensions with 10.1mm length, width, and 2.8mm depth.

Product Description

Preci-Dip 110-87-308-41-105191 is a Vertical 8 Way Surface Turned Pin Open Frame DIL Socket featuring a 2.54 mm pitch, designed for use in electronics manufacturing and testing applications. It supports a nominal current of 1A and a voltage rating of 150V DC, making it suitable for various PCB mount designs.

This DIL socket utilizes brass and beryllium copper alloy contacts plated with gold and tin to ensure excellent conductivity and corrosion resistance. Its fibreglass reinforced polyethylene terephthalate housing offers mechanical strength and thermal stability within operating temperatures ranging from -55°C to 125°C.

Designed specifically for surface mounting with solder termination, the socket has a compact form factor measuring 10.1 mm in length and width, with a 2.8 mm depth, and a row width of 7.62 mm. Its open frame design facilitates vapor phase reflow soldering with gull wing terminations, greatly enhancing assembly ease and reliability.

Ideal for industrial electronics, laboratory instruments, and manufacturing processes requiring reliable IC socket connections, this Preci-Dip DIL socket series 110 offers robust performance and quality assurance with Swiss manufacturing standards.

Vertical 8 Way open frame design for through hole or SMD mounting. Contact clips are gold flash plated to provide high contact reliability. Supports ease of in-circuit testing due to vertical orientation. Compatible with various stock numbers for custom configurations.
