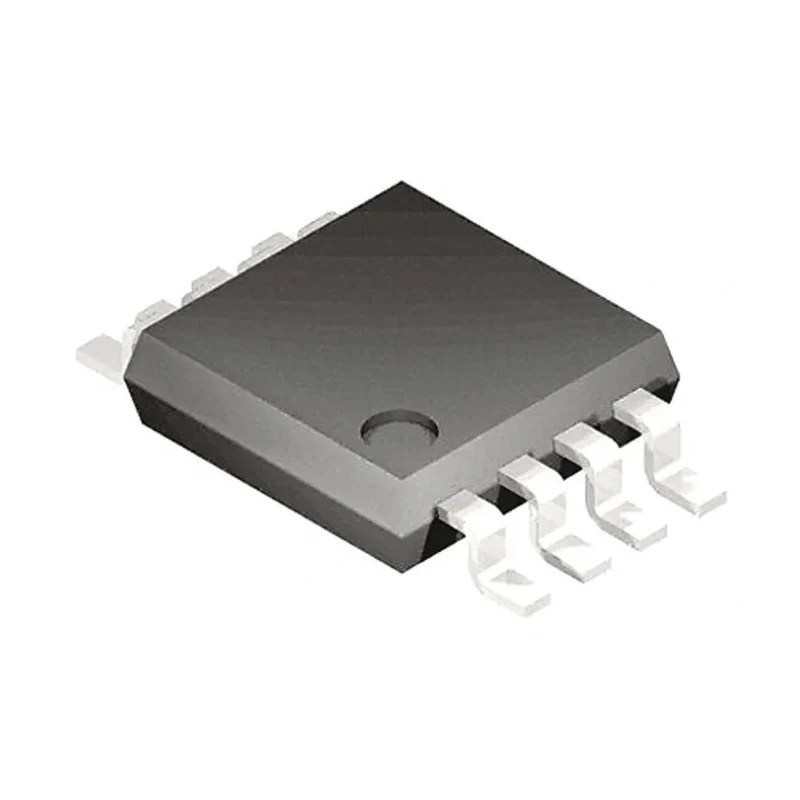

DiodesZetex Linear LED Driver IC 100V Input, 165mA Output Current, PWM Dimming, 8-Pin MSOP AL5812MP-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 3.05mm |
| Model | AL5812MP-13 |
| Width | 3.1mm |
| Mount Type | Through Hole |
| Series | AL5812 |
| Output Current | 165mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Maximum Output Power | 1.1W |
| Input Voltage | 100V |
| Maximum Output Voltage | 66V |
| Number of Pins | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Output Voltage | -0.3V |
| Dimming Operation | PWM |
Key Features
- Supports PWM dimming operation for efficient brightness control.
- Maximum output power is 1.1W ensuring efficient LED drive functionality.
- Compact 8-pin MSOP package with through-hole mount type for easy PCB integration.
- Designed to operate at temperatures from -40°C to 125°C for robust industrial applications.
- Compliant with automotive standard AEC-Q100 for quality assurance in automotive electronics.
- Physical dimensions include a length of 3.05mm, width of 3.1mm, and height of 1.1mm.
- Features a maximum output voltage of 66V and minimum output voltage of -0.3V for precise LED control.
Product Description
DiodesZetex AL5812MP-13 Linear LED Driver IC delivers reliable and efficient driving of low-current, high-brightness LEDs. Operating with a 100V input voltage and supporting output currents up to 165mA, this device is well suited for electronic component applications requiring effective LED control.
The IC facilitates Pulse Width Modulation (PWM) dimming operation that enables precise luminance regulation, making it ideal for display and lighting control in industrial and automotive electronics.
Packaged in a compact 8-pin MSOP package with through-hole mount type, the AL5812MP-13 simplifies PCB assembly and integration. It is designed to operate effectively across a wide temperature range from -40°C to 125°C, ensuring dependable performance under demanding environmental conditions.
Its compliance with the AEC-Q100 automotive standard attests to the quality and reliability demanded in automotive system applications. Supports PWM dimming operation for adjustable LED brightness. Maximum output power of 1.1W offers efficient LED driving capability.
Compact 8-pin MSOP package suited for through-hole mounting. Wide operating temperature range from -40°C to 125°C for industrial durability. Automotive standard AEC-Q100 certified for automotive-grade quality. Physical dimensions: 3.05mm length, 3.1mm width, and 1.1mm height.
Output voltage range from -0.3V minimum to 66V maximum for precise LED control.
This LED driver IC is ideal for applications in electronic components, power connectors, LED lighting components, automotive LED lighting, and other industrial LED driver solutions.
For detailed design and integration, technical documents, 3D mechanical models, schematics, and footprints are available. Explore EnvMart’s extensive catalog of LED Driver ICs and electronic components for reliable and optimized product selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 165mA.
It operates with an input voltage of up to 100V.
The physical dimensions are 3.05mm in length, 3.1mm in width, and 1.1mm in height.
The maximum output power is 1.1W, which supports efficient LED driving functionality.
It supports Pulse Width Modulation (PWM) dimming for adjustable LED brightness.
This unit is designed to operate within a temperature range of -40°C to 125°C.
It comes in a compact 8-pin MSOP package with a through-hole mount type.
It is compliant with the AEC-Q100 automotive standard, ensuring quality for automotive applications.
The maximum output voltage is 66V, while the minimum output voltage is -0.3V.
It is suitable for applications in electronic components, LED lighting components, and automotive LED lighting.
This LED driver IC features 8 pins.
The maximum operating temperature of 125°C ensures robust performance in industrial applications.
