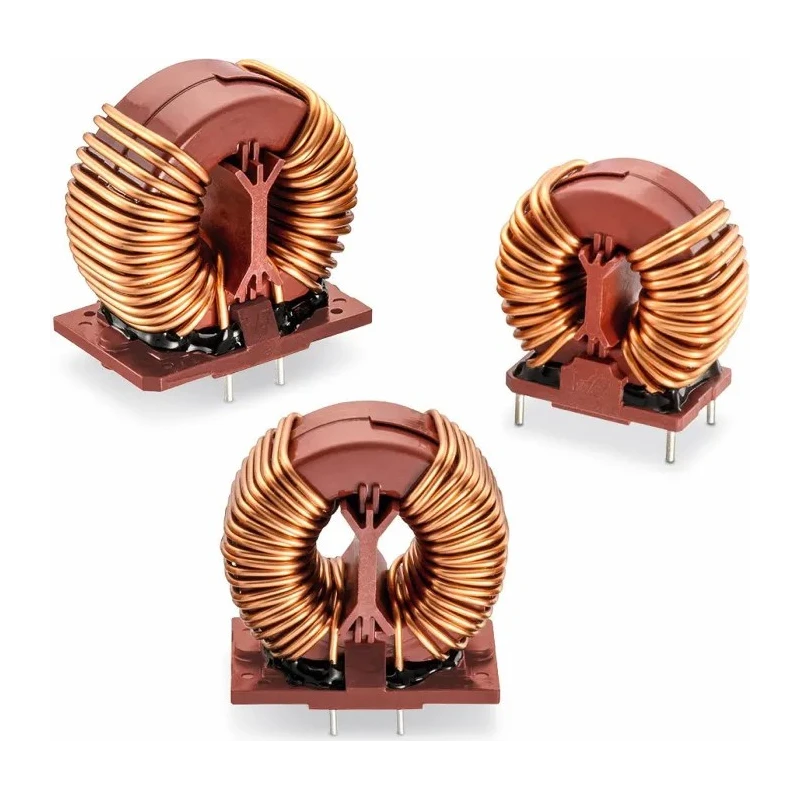

Wurth Elektronik 2 mH 18.5 A Common Mode Choke 5.5 mΩ 760V AC 744830010185
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 39.5mm |
| Length | 41.5mm |
| Depth | 23mm |
| Packaging | Tray & Carton |
| Mount Type | Through Hole |
| Series | WE-CMBHV |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Inductance | 2mH |
| Standards/Approvals | RoHS, REACH |
| Maximum DC Current | 18.5A |
| Maximum DC Resistance | 5.5mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder Pad |
| Choke Voltage | 760V ac |
Key Features
- Constructed with high permeability MnZn core material for enhanced performance.
- Designed for mains applications up to 760 V AC voltage.
- Features low maximum DC resistance of 5.5 mΩ for minimal power loss.
- Inductance tolerance is ±30 % ensuring reliable filtering.
- Suitable for through hole mounting with solder pad terminations.
- Operating temperature range from -40°C up to 125°C.
- Compact size with dimensions 41.5 mm length, 39.5 mm height, and 23 mm depth.
- Complies with RoHS and REACH environmental safety standards.
Product Description
Wurth Elektronik model 744830010185 is a 2 mH Common Mode Choke designed for power electronics and mains filtering applications. It supports a maximum DC current of 18.5 A and operates reliably within a temperature range from -40°C to 125°C.
This choke is constructed using a high permeability MnZn core material, optimizing performance in EMI suppression and noise filtering on power lines. It is specifically designed for mains applications with voltage ratings up to 760 V AC.
The device features a low maximum DC resistance of 5.5 mΩ, contributing to improved efficiency and minimal power loss during operation. The inductance tolerance is ±30 %, which ensures consistent filtering characteristics suitable for industrial and commercial electronics.
Mounting is via through hole with solder pad termination style, making it compatible with standard PCB assembly techniques. The choke has compact dimensions: 41.5 mm in length, 39.5 mm in height, and 23 mm in depth, making it adaptable to various circuit designs.
The product complies with RoHS and REACH environmental standards, ensuring safe use in electronics manufacturing and reducing hazardous substances. It is packaged in trays and cartons for secure handling during shipment and storage.
Typical applications include power-line input/output filters, radio interference suppression in motors, and common mode noise suppression in power electronics equipment. This product is manufactured in China by Wurth Elektronik, known for high-quality electronic components suitable for industrial, commercial, and power electronic applications.
Constructed with high permeability MnZn core material for enhanced performance. Supports mains applications up to 760 V AC voltage. Low maximum DC resistance of 5.5 mΩ for minimal power loss. Inductance tolerance ±30 % for reliable filtering.
Through hole mounting with solder pad terminations. Operating temperature range from -40°C to 125°C. Compact dimensions: 41.5 × 39.5 × 23 mm. Complies with RoHS and REACH environmental standards. Packaged in tray and carton for protection.
Explore more electronic components and EMI filters at EnvMart's Electronics & Electricals category.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 2 mH.
It supports a maximum DC current of 18.5 A.
The choke is designed for mains applications with a maximum operating voltage of 760 V AC.
The dimensions are 41.5 mm in length, 39.5 mm in height, and 23 mm in depth.
It has a low maximum DC resistance of 5.5 mΩ.
The operating temperature range is from -40°C to 125°C.
This model is designed for through hole mounting with solder pad terminations.
The inductance tolerance is ±30 %, ensuring reliable filtering characteristics.
It complies with RoHS and REACH environmental safety standards.
It is constructed with a high permeability MnZn core material for enhanced performance.
Typical applications include power-line input/output filters and common mode noise suppression in power electronics equipment.
It is packaged in trays and cartons for secure handling during shipment and storage.
