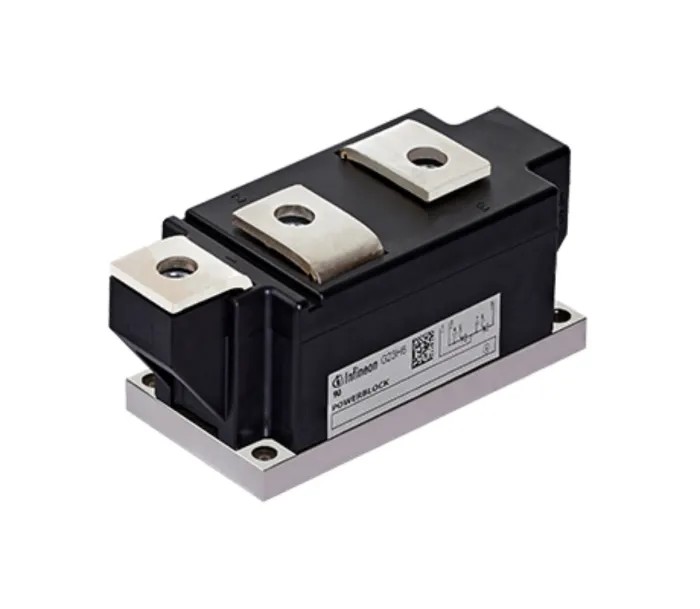

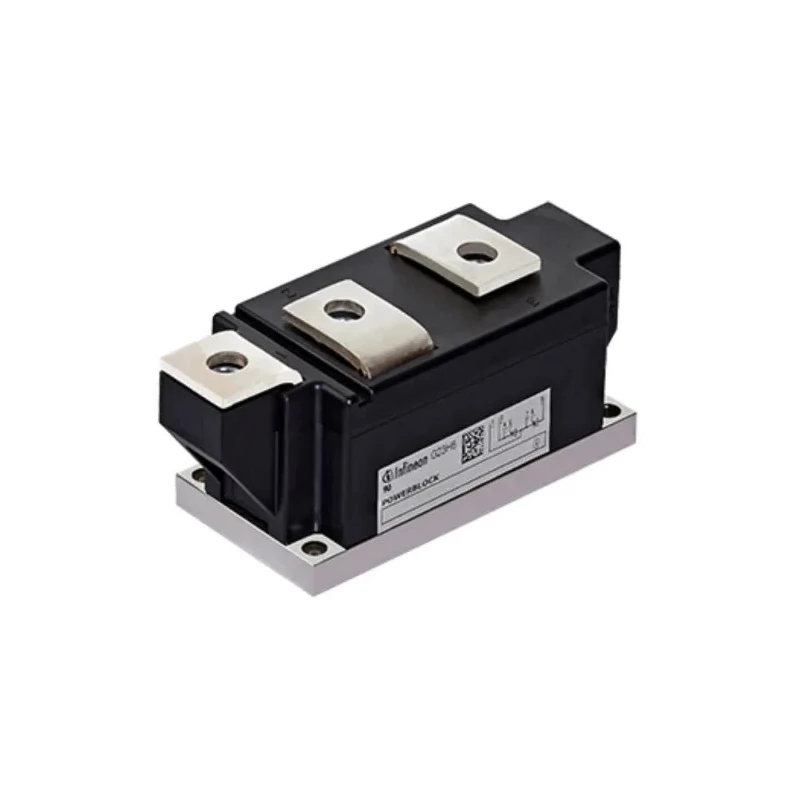

Infineon Thyristor Module 1800 V 20 kA 566 A 2 V Gate Trigger Voltage TD570N18KOFHPSA1

Infineon TD570N18KOFHPSA1 is a robust thyristor module designed for high power and industrial electronic applications. It features a repetitive peak reverse voltage of 1800 V and can handle surge currents up to 20 kA, making it ideal for demanding power control tasks.

This module supports a rated average on-state current of 566 A, enabling continuous current flow with high reliability. The gate trigger requirements include a voltage of 2 V and a maximum current of 250 mA, allowing precise control of the conduction state.

Designed to withstand operating temperatures up to 125°C and mounted on a 60 mm base plate chassis, this product provides enhanced heat dissipation and durability in harsh environments. Its peak on-state voltage of 1.38 V ensures efficient conduction with minimal power loss.

The maximum holding current of 300 mA and repetitive peak off-state current of 120 mA contribute to stable device operation and reduced leakage currents. While this product does not carry automotive certifications, its specifications support usage in a wide range of industrial electronics, machinery, manufacturing systems, and power semiconductor applications.

This thyristor module features a rated average on-state current of 566 A. Designed to operate with a maximum gate trigger current of 250 mA and gate trigger voltage of 2 V. Maximum holding current is 300 mA ensuring stable conduction.

The module supports a maximum operating temperature of 125°C for robust operation. Peak on-state voltage is 1.38 V for efficient conduction. Repetitive peak reverse voltage is rated at 1800 V, suitable for high voltage applications.

Repetitive peak off-state current rating is 120 mA ensuring minimal leakage. Chassis mount design with 60 mm base plate improves thermal management. No specific automotive or industry standard approvals are applicable to this model.

Ideal for use in industrial, power electronics, and manufacturing applications requiring high surge current capacity. This Infineon Thyristor Module is integral for advanced power control in automation, industrial machinery, power supply units, and related electronic industrial systems.
