ams OSRAM Multi TOPLED 860 nm Infrared LED PLCC 4 Surface Mount 2.4V SFH 7250

Free Delivery in India | Lowest Global Shipping Charges

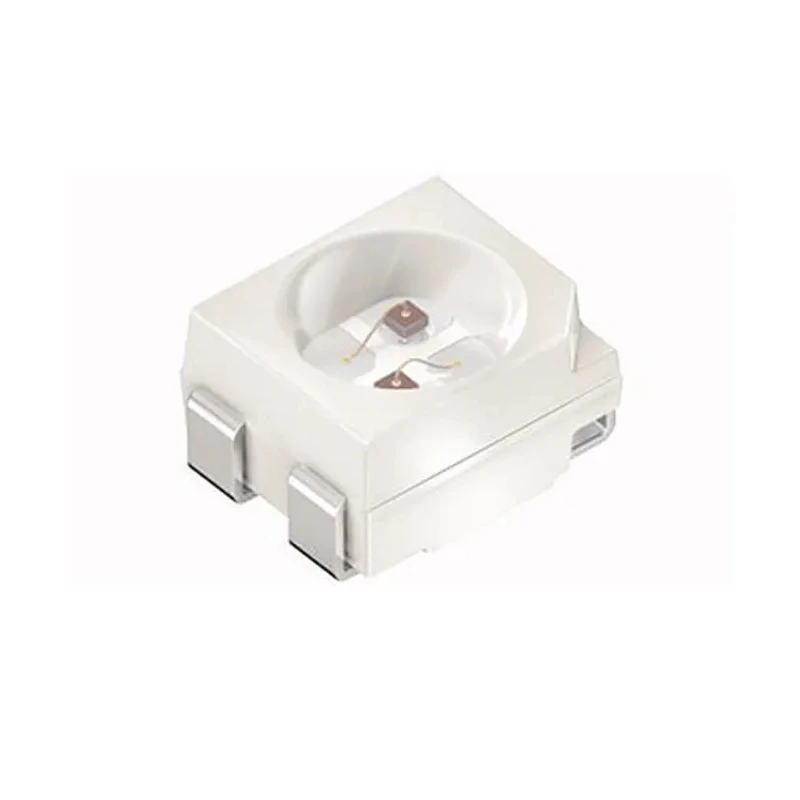

ams OSRAM Multi TOPLED 860 nm Infrared LED PLCC 4 Surface Mount 2.4V SFH 7250

Name: ams OSRAM Multi TOPLED 860 nm Infrared LED PLCC 4 Surface Mount 2.4V SFH 7250
Brand: ams OSRAM
SKU: 135264
Price: 0.74 USD
Availability: InStock



Category IR LED Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Model	SFH 7250
Packaging	Tape & Reel
Mount Type	Surface
Series	Multi TOPLED
Number Of Leds	1
Package Type	PLCC 4
Standards/Approvals	JEDEC
Number of Pins	4
Lens Shape	Round
Maximum Supply Voltage	2.4V
Peak Wavelength	860nm
Radiant Flux	40mW
Angle of half intensity	60°
Radiant Intensity	10mW/sr

Key Features

The LED delivers a radiant flux of 40mW and radiant intensity of 10mW/sr.
It features a round lens shape with a 60° angle of half intensity.
Maximum supply voltage rating is 2.4V ensuring reliable operation.
The component is packaged on tape and reel for automated assembly.
Single LED with 4 pins in a compact PLCC 4 package type.
MEETS JEDEC standards for consistent quality and performance.
Designed without automotive certification for general electronic applications.
Originates from Malaysia, manufactured to high industrial standards.

Product Description

ams OSRAM SFH 7250 is a combined infrared LED and phototransistor device housed in a compact PLCC 4 surface mount package. It operates at a peak wavelength of 860 nm, providing efficient infrared emission suitable for electronic and optoelectronic applications.

This Multi TOPLED device features a radiant flux output of 40 mW along with a radiant intensity of 10 mW/sr, delivering concentrated infrared light with a beam angle of 60° for precise illumination. The round lens shape enhances optical performance while the surface mount design facilitates easy integration onto PCBs.

The SFH 7250 supports a maximum supply voltage of 2.4 V and comes packaged on tape and reel, optimizing it for high-volume manufacturing and automated insertion processes. It includes 4 pins for electrical connections, making it compatible with standard SMT assembly lines.

Manufactured to JEDEC quality standards and originating from Malaysia, this device is intended for use in industrial electronics, electronic displays, sensors, remote control systems, and other applications requiring reliable infrared illumination without automotive certification needs.

The LED delivers a radiant flux of 40 mW and radiant intensity of 10 mW/sr. Compact PLCC 4 package with 4 pins for surface mounting. Peak wavelength of 860 nm suitable for infrared applications. Round lens shape with 60° angle of half intensity for focused emission.

Maximum supply voltage rating of 2.4 V ensures device integrity. Packaged on tape and reel for efficient production handling. Complies with JEDEC standards for quality assurance. Produced in Malaysia ensuring high manufacturing standards.

This ams OSRAM SFH 7250 infrared LED is ideal for industrial electronics, electronic components suppliers, laboratory devices, manufacturing automation, and electronic optoelectronic applications requiring reliable infrared light sources. Explore more components and devices with EnvMart’s comprehensive electronics catalog.
