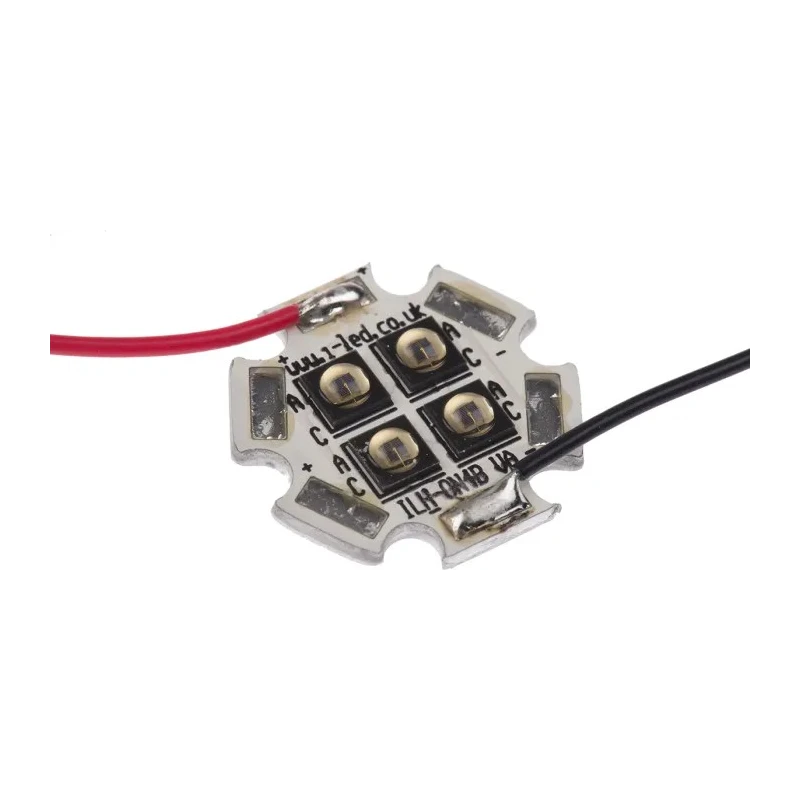

Intelligent LED Solutions OSLON Black PowerStar 850 nm IR LED Module PCB Surface Package ILH-IW04-85SL-SC211-WIR200.

Intelligent LED Solutions ILH-IW04-85SL-SC211-WIR200 is a high-performance infrared (IR) LED module designed for industrial and commercial applications requiring intense IR illumination. This module incorporates four OSRAM Oslon Black Series LEDs arranged on a durable aluminum PCB substrate allowing superior thermal management and power density in a compact 20 x 20 x 3.5 mm package.

The module operates at a peak wavelength of 850 nm delivering radiant flux and intensity of 4120 mW, suitable for surveillance cameras, night vision equipment, machine vision systems, and driver assistance technologies. Its integrated silicon dome lens projects IR light in a 75° half intensity angle for wide coverage.

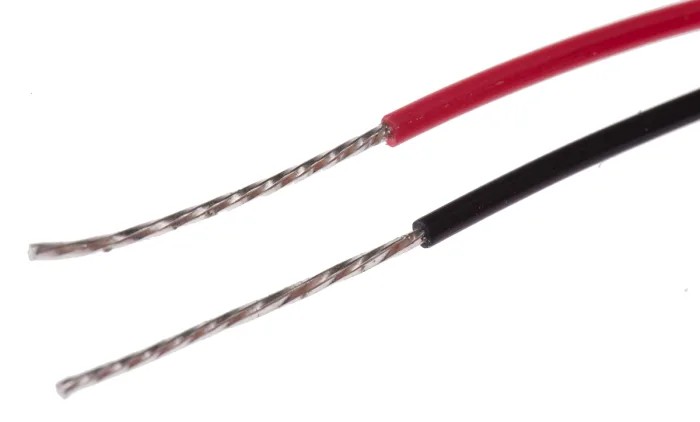

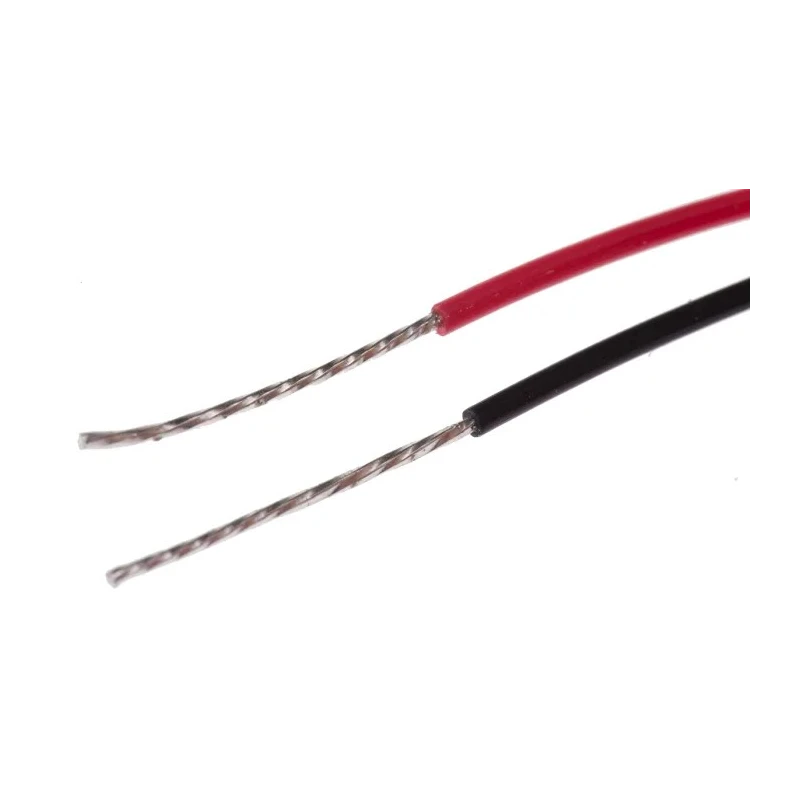

Designed for surface mounting on PCBs with secure M3 screw holes, the module is supplied with 200 mm connecting wires facilitating seamless integration. It supports a maximum supply voltage of 12.8 V DC and requires current-limited power supplies with an operational range of 100 to 1000 mA to prevent overheating and ensure longevity.

This LED module complies with an extensive range of international standards including IEC 61000-3-2, IEC 62471, IEC 61547, IEC/EN 62384, ENEC certification, EN 55015, IEC 60825-1, and CE marking, affirming its reliability and safety in varied industrial applications.

The compact design and high optical power density make it ideal for applications in security systems, IR illumination for cameras, night vision lighting, machine vision inspection, and automotive driver assistance systems. Integration with suitable heat sinks (not included) is recommended to avoid overheating and ensure optimal performance.

Set contains one IR LED module with four high-power IR LEDs, dome lens, aluminum PCB substrate, and 200 mm connecting wires. Features 4 high-power OSRAM Oslon Black Series LEDs for superior IR illumination. Compact PCB surface mount package with aluminum substrate for optimal thermal management.

Peak wavelength is 850 nm ideal for surveillance and machine vision applications. Supplied with 200 mm connecting wires standard for flexible integration. Offers radiant flux and radiant intensity of 4120 mW each for powerful IR output.

Integrated silicon dome lens provides a wide 75° half intensity angle. Operates safely up to a maximum supply voltage of 12.8 V DC. Complies with multiple IEC and EN standards ensuring industrial reliability. Designed for applications including security systems, night vision lighting, and driver assistance.

Durable construction on aluminum substrate ensures long operating life with heat sink attachment recommended. Explore more professional-grade IR LED modules and LED arrays at EnvMart for robust electronic component solutions.
