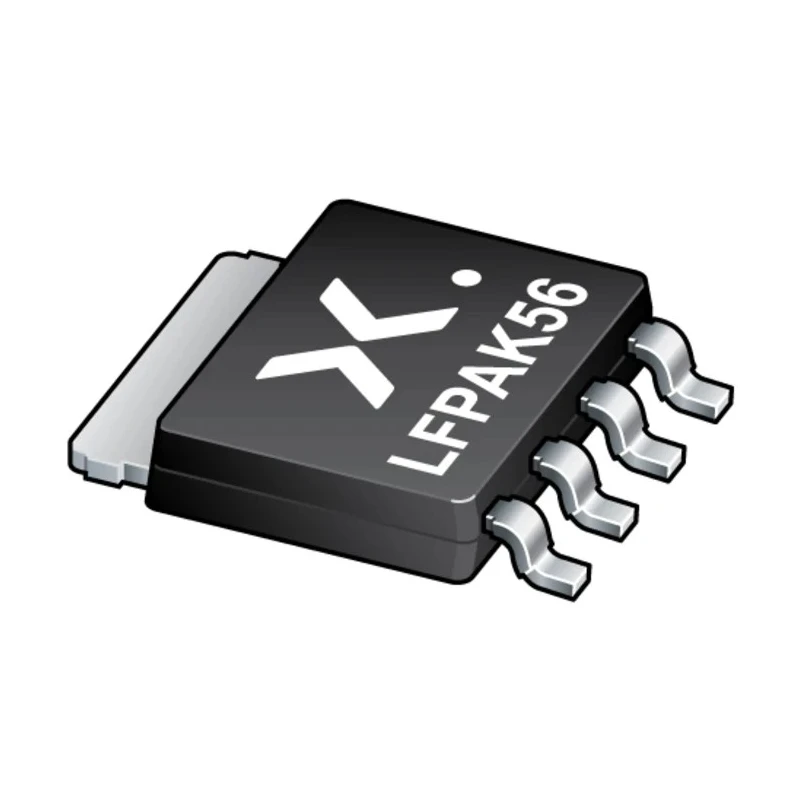

Nexperia High Power 60 V PNP Bipolar Transistor 6 A, Surface Mount, 4-Pin PHPT60606PYX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 5mm |
| Model | PHPT60606PYX |
| Width | 4.1mm |
| Mount Type | Surface |
| Series | PHPT60606PY |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Collector Emitter Voltage Vceo | -60V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -8V |
| Maximum Collector Base Voltage VCBO | -60V |
| Maximum Power Dissipation Pd | 25W |
| Maximum DC Collector Current Idc | -6A |
| Transistor Configuration | Single |
Key Features
- This transistor supports a maximum DC collector current of 6 A, suitable for high power applications.
- With a maximum collector-emitter voltage of 60 V, it can handle significant voltage stresses.
- Constructed as a surface mount device with 4 pins in a compact SOT669 package.
- Operates reliably in temperatures ranging from -55°C to 175°C, making it suitable for demanding environments.
- Features low saturation voltage for increased efficiency and reduced heat generation.
- RoHS compliant, ensuring adherence to environmental safety standards.
- Ideal for power management, load switching, linear regulators, backlighting, motor drive, and relay replacement applications.
Product Description
Nexperia PHPT60606PYX is a high power, PNP bipolar transistor designed for energy-efficient operation and high thermal power dissipation capability. It supports a maximum DC collector current of 6 A and a maximum collector-emitter voltage of 60 V, making it suitable for a range of industrial and commercial electronic applications.
This transistor comes in a compact surface-mount SOT669 (LFPAK56) package with 4 pins, which helps reduce printed circuit board (PCB) space requirements and enhances thermal management.
It operates reliably in harsh environments with an operating temperature range from -55°C up to 175°C, ensuring durability in high temperature applications. The device features a low collector-emitter saturation voltage, improving energy efficiency by minimizing power losses and heat generation during operation.
Compliant with RoHS standards, the PHPT60606PYX transistor supports environmentally responsible design objectives. Maximum DC collector current: 6 A. Collector-emitter voltage: 60 V. 4-pin surface mount package (SOT669/LFPAK56).
Operating temperature range: -55°C to 175°C. Low saturation voltage for high efficiency. High power dissipation capability (25 W). RoHS compliant.
This transistor is widely used in power management systems, load switching circuits, linear voltage regulators, backlighting applications, motor drives, and as a relay replacement. It excels in high power systems where efficient power dissipation and heat management are critical.
EnvMart offers this product as part of its Electronics & Electricals catalog, ideal for semiconductor and power transistor applications.
Explore more products in our Bipolar Transistors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for the Nexperia PHPT60606PYX is 6 A.
This transistor can handle a maximum collector-emitter voltage of 60 V.
It operates reliably within a temperature range from -55°C to 175°C.
This model comes in a compact surface-mount SOT669 package with 4 pins.
The maximum power dissipation capability is 25 W.
It is a PNP bipolar transistor.
The PHPT60606PYX is RoHS compliant, ensuring adherence to environmental safety standards.
The dimensions are 1.2 mm in height, 5 mm in length, and 4.1 mm in width.
It is suitable for power management, load switching, linear regulators, backlighting, motor drive, and relay replacement applications.
The maximum emitter-base voltage (VEBO) is -8 V.
The transistor configuration is single.
The maximum collector-base voltage (VCBO) is -60 V.
