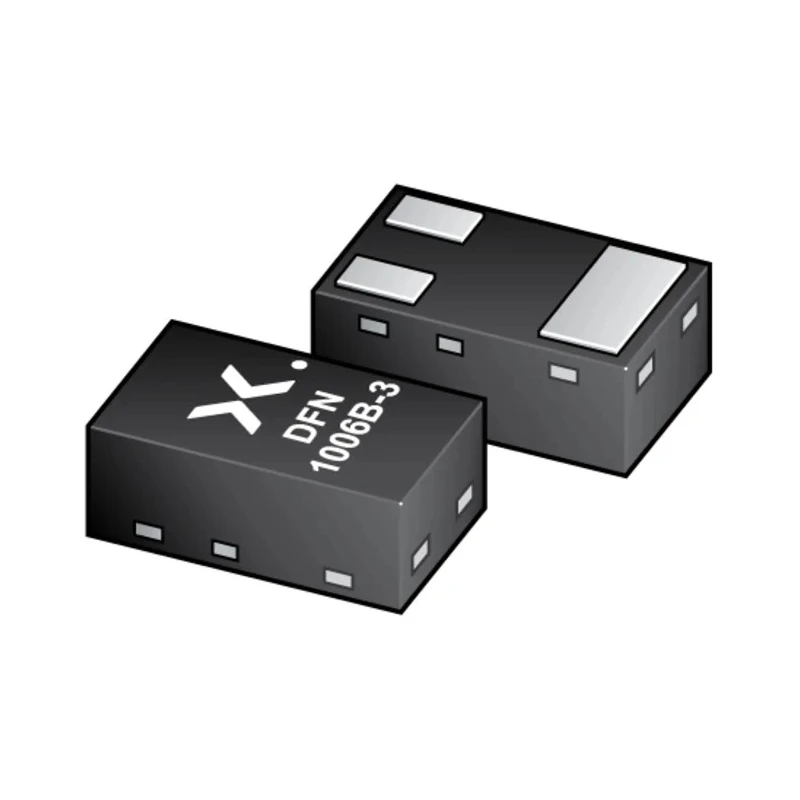

Nexperia 100 mA NPN Transistor 65 V 3-Pin DFN Surface-Mount BC846BMB,315

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 100 mA NPN Transistor 65 V 3-Pin DFN Surface-Mount BC846BMB,315

Name: Nexperia 100 mA NPN Transistor 65 V 3-Pin DFN Surface-Mount BC846BMB,315
Brand: Nexperia
SKU: 215041
Price: 0.06 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.36mm
Length	1.05mm
Model	BC846BMB,315
Width	0.65mm
Mount Type	Surface
Series	BC846BMB
Maximum Operating Temperature	150°C
Package Type	DFN
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	65V
Minimum DC Current Gain hFE	200
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	65V
Maximum Collector Base Voltage VCBO	80V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz

Key Features

Maximum DC Collector Current of 100 mA supports low current switching applications.
Maximum Collector Emitter Voltage of 65 V ensures robust performance in medium-voltage circuits.
Compact ultra-small DFN package with dimensions 1.05 mm length, 0.65 mm width, and 0.36 mm height for space-saving circuit designs.
Low package height of 0.37 mm provides excellent PCB space utilization.
Surface mount type enables automated assembly and reduces board footprint.
Maximum power dissipation of 250 mW supports efficient thermal management.
High minimum DC current gain (hFE) of 200 ensures reliable amplification.
Maximum transition frequency of 100 MHz suitable for RF and switching circuits.

Product Description

The Nexperia BC846BMB,315 is a single NPN bipolar transistor designed for general purpose switching and amplification in compact surface mount applications. Its 3-pin DFN package provides an ultra-small footprint with a length of 1.05 mm, width of 0.65 mm, and height of 0.36 mm making it ideal for space-constrained circuit boards.

With a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 65 V, this transistor is suitable for low-current and medium-voltage applications. It offers a maximum power dissipation rating of 250 mW ensuring efficient operation with thermal stability. The device features a minimum DC current gain (hFE) of 200 and a transition frequency of 100 MHz enabling reliable and high-speed performance.

This transistor complies with RoHS directives and meets automotive standard AEC-Q101, reflecting its high quality and reliability in automotive and industrial use cases. The wide operating temperature range from -65°C to 150°C supports use in harsh environments.

Typical applications include mobile devices, industrial controls, and low-power switching circuits where compact size and efficient switching are necessary. The surface mount DFN package facilitates automated assembly and compact design layouts.

Maximum DC Collector Current: 100 mA. Maximum Collector Emitter Voltage: 65 V. Maximum Collector Base Voltage: 80 V. Maximum Power Dissipation: 250 mW. Minimum DC Current Gain (hFE): 200. Maximum Transition Frequency: 100 MHz.

Operating Temperature Range: -65°C to 150°C. Package Dimensions: 1.05 mm x 0.65 mm x 0.36 mm. Pin Count: 3. Standards: RoHS, AEC-Q101. Explore more from Nexperia’s extensive portfolio of Bipolar Transistors available for diverse industrial, automotive, and consumer electronics designs right here on EnvMart.
