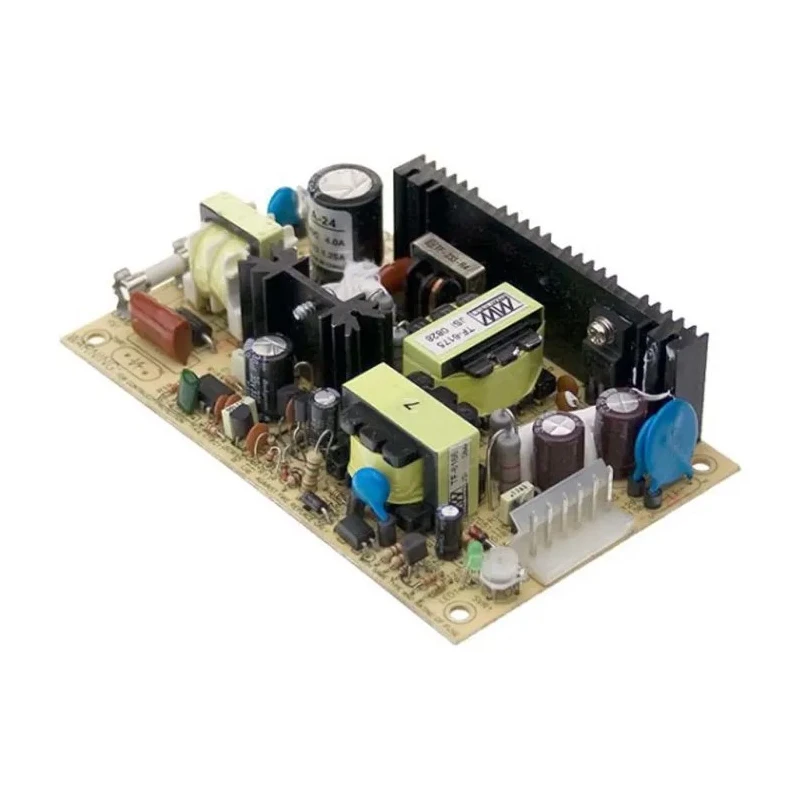

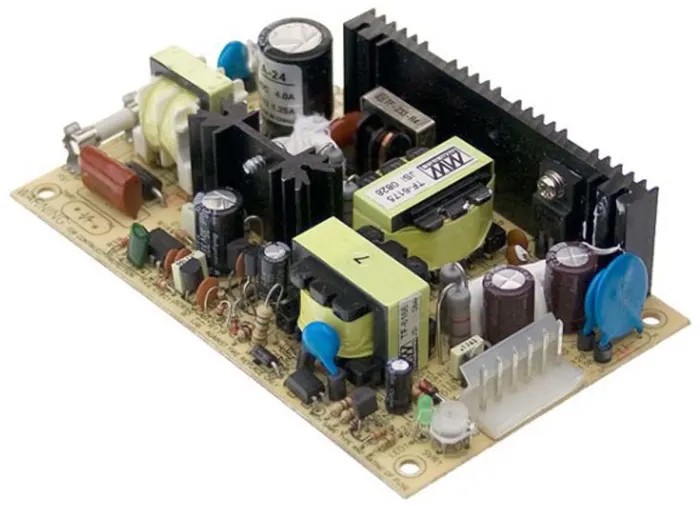

MEAN WELL 45W Single Output DC-DC Converter 5V dc Output, 18-24V dc Input, Chassis Mount, PSD-45B-05
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL PSD 45 DC/DC Converter, 5V dc/, 24V dc I |
| Brand | MEAN WELL |
| Efficiency | 77% |
| Length | 127mm |
| Model | PSD-45B-05 |
| Depth | 30mm |
| Gross Weight | 190g |
| Width | 30mm |
| Mount Type | Chassis |
| Series | PSD 45 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| MTBF | 329300h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 45W |
| Maximum Input Voltage | 24V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 9A |
| Output Voltage Adjustment Range | 5.5 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:12 |
| Input Ratio1 | 12 |
Key Features
- Supports a wide input voltage range from 18V to 24V dc.
- Provides a stable output current of up to 9 amperes.
- Features built-in protections against short circuit, overload, over-voltage, and reverse polarity.
- Compact chassis mount design with dimensions 127mm x 30mm x 30mm.
- Equipped with 1500Vac input/output isolation for safety.
- Operates reliably within a temperature range of -10°C to 60°C.
- Low ripple and noise output with 100mV peak-to-peak maximum.
- High reliability ensured by 329300 hours of MTBF.
Product Description
MEAN WELL PSD-45B-05 is a high quality 45W single output DC-DC converter featuring a compact chassis mount form factor. Designed for industrial, automotive, and battery backup applications, it provides a stable 5V output voltage with up to 9A output current from an input voltage range of 18V to 24V DC.
The converter incorporates robust protections including short circuit, overload, over-voltage, and reverse polarity safeguards, ensuring reliable operation in demanding environments. Isolation voltage of 1.5kV DC offers safety between input and output circuits. Its chassis mounting and compact dimensions of 127mm length, 30mm width, and 30mm depth allow versatile installation options.
With low ripple and noise (100mV peak-to-peak max) and high efficiency rating of 77%, the PSD-45 series DC-DC converters are suitable for precision electronic equipment and power sensitive applications. It operates safely over a temperature range of -10°C to 60°C, passively cooled by free air convection without additional cooling components.
The product meets a broad set of international standards and approvals including EN 55024, CE, EN 61000-4-2, EN 60950-1, TUV, and CB scheme certifications. The robust design is rounded off by a high MTBF of 329300 hours.
This converter is ideal for industrial, laboratory, construction, automotive, HVAC, manufacturing, and water treatment applications requiring reliable DC voltage conversion within a compact chassis package.
Supports a wide input voltage range from 18V to 24V dc. Provides a stable output current of up to 9 amperes. Features built-in protections against short circuit, overload, over-voltage, and reverse polarity. Compact chassis mount design with dimensions 127mm x 30mm x 30mm.
Equipped with 1500Vac input/output isolation for safety. Operates reliably within a temperature range of -10°C to 60°C. Low ripple and noise output with 100mV peak-to-peak maximum. High reliability ensured by 329300 hours of MTBF.
Compliance with international safety and electromagnetic standards including CE, TUV, EN certifications. Explore our extensive range of DC-DC converters and power solutions at EnvMart for high-performance industrial and electronic applications.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a wide input voltage range from 18V to 24V DC.
This model provides a stable output current of up to 9 amperes.
The output voltage is 5V DC.
It has compact dimensions of 127mm in length, 30mm in width, and 30mm in depth.
The efficiency rating is 77%.
It features built-in protections against short circuit, overload, over-voltage, and reverse polarity.
It is equipped with 1500Vac input/output isolation for safety.
It operates reliably within a temperature range of -10°C to 60°C.
The output has low ripple and noise with a maximum of 100mV peak-to-peak.
The mean time between failures (MTBF) is 329300 hours.
This model is designed for chassis mounting.
It is suitable for industrial, automotive, and battery backup applications requiring reliable DC voltage conversion.
