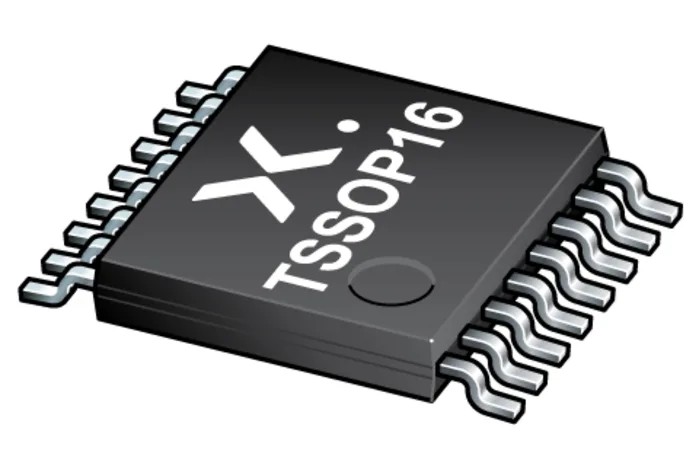

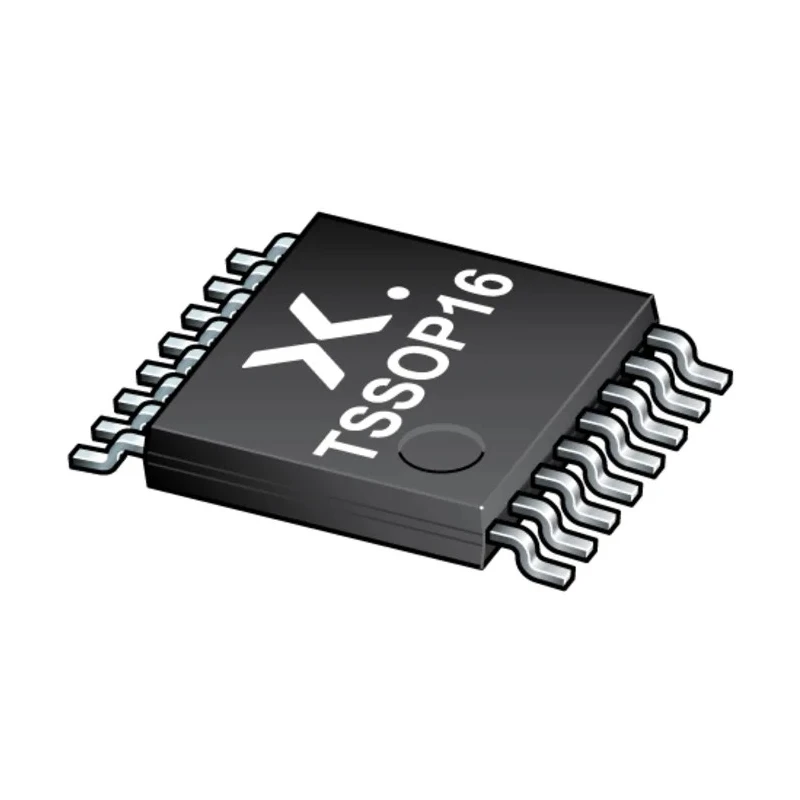

Nexperia 1 Surface Shift Register/Latch 74HCT TSSOP, 16-Pin 74HCT595PW-Q100,11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 5.1mm |
| Model | 74HCT595PW-Q100,11 |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | 74HCT595 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Pin Count | 16 |
| Number of Elements | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | 74HCT |
| Minimum Supply Voltage | 4.5V |
Key Features
- This device is a high-speed Si-gate CMOS 8-stage serial shift register with storage register and 3-state outputs.
- It is compliant with JEDEC standard No. 7A and is pin compatible with Low-power Schottky TTL (LSTTL).
- The package type is TSSOP with a compact size of 5.1mm length, 4.5mm width, and 1.1mm height.
- Supports a minimum supply voltage of 4.5V and a maximum of 5.5V.
- Maximum operating temperature is rated at 125°C making it suitable for automotive-grade applications.
- The shift register supports 8-bit serial input and 8-bit serial or parallel output with direct clear functionality.
- Designed according to automotive standard AEC-Q100 for enhanced reliability.
- Typical shift out frequency is 100 MHz, suitable for fast data handling in digital circuits.
Product Description
Nexperia 74HCT595PW-Q100,11 is a 1 surface mount shift register/latch in a TSSOP package featuring the 74HCT logic family, designed for efficient high-speed digital signal processing. It operates from 4.5V to 5.5V and supports a maximum operating temperature of 125°C, suitable for automotive and industrial electronics.
The device consists of an 8-stage serial shift register combined with a storage register with 3-state outputs, enabling versatile data manipulation and output control in complex electronic circuits.
It is pin-compatible with Low-power Schottky TTL (LSTTL) and complies with JEDEC standard No. 7A. The TSSOP package measures 5.1mm in length, 4.5mm in width, and 1.1mm in height, offering a compact footprint.
The 74HCT595PW-Q100,11 shift register supports separate clocks for the shift register and storage register for precise timing control. Data shifts on the positive edge of the shift register clock input and is transferred to the storage register on the positive edge of the storage register clock.
This automotive-grade device conforms to AEC-Q100 quality standards (Grade 1), ensuring high reliability under rigorous conditions. Its direct clear function and typical 100 MHz shift out frequency make it ideal for automotive electronics, industrial control systems, and high-speed data acquisition setups.
High-speed Si-gate CMOS 8-bit serial shift register with storage register. 3-state output capability enables multiplexing and bus sharing. Pin compatible with Low-power Schottky TTL (LSTTL) logic devices. Compliant with JEDEC standard No. 7A for reliable interoperability.
TSSOP 16-pin surface mount package with compact dimensions. Automotive qualified to AEC-Q100 standards for durability and performance. Operating voltage range from 4.5V to 5.5V. Maximum operating temperature rating of 125°C for harsh environments.
Typical shift out frequency up to 100 MHz for fast serial data processing.
This product is widely used in industrial electronics, automotive systems, manufacturing equipment, and embedded digital controllers where reliable high-speed serial-to-parallel data conversion is essential.
Explore more semiconductor components in the Shift Register category to complement your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is rated at 125°C, making it suitable for harsh environments, particularly in automotive applications.
It operates within a supply voltage range of 4.5V to 5.5V, allowing for flexibility in various electronic designs.
This device is packaged in a TSSOP (Thin Shrink Small Outline Package) format, which is compact and suitable for surface mounting.
The 74HCT595PW-Q100,11 features 16 pins, allowing for various input and output configurations.
It has a typical shift out frequency of 100 MHz, which is suitable for fast data handling in digital circuits.
Yes, it is designed according to the AEC-Q100 automotive standard, ensuring enhanced reliability for automotive applications.
The height of the TSSOP package is 1.1mm, contributing to its compact design.
It belongs to the 74HCT logic family, which is known for its high-speed capabilities in digital signal processing.
Yes, it supports 8-bit serial input and 8-bit serial or parallel output, along with a direct clear functionality.
The dimensions of this model are 5.1mm in length, 4.5mm in width, and 1.1mm in height, making it compact for various applications.
This model consists of 1 element, which is an 8-stage serial shift register with a storage register.
It is suitable for applications in automotive electronics, industrial control systems, and high-speed data acquisition setups due to its high-speed capabilities and reliability.
