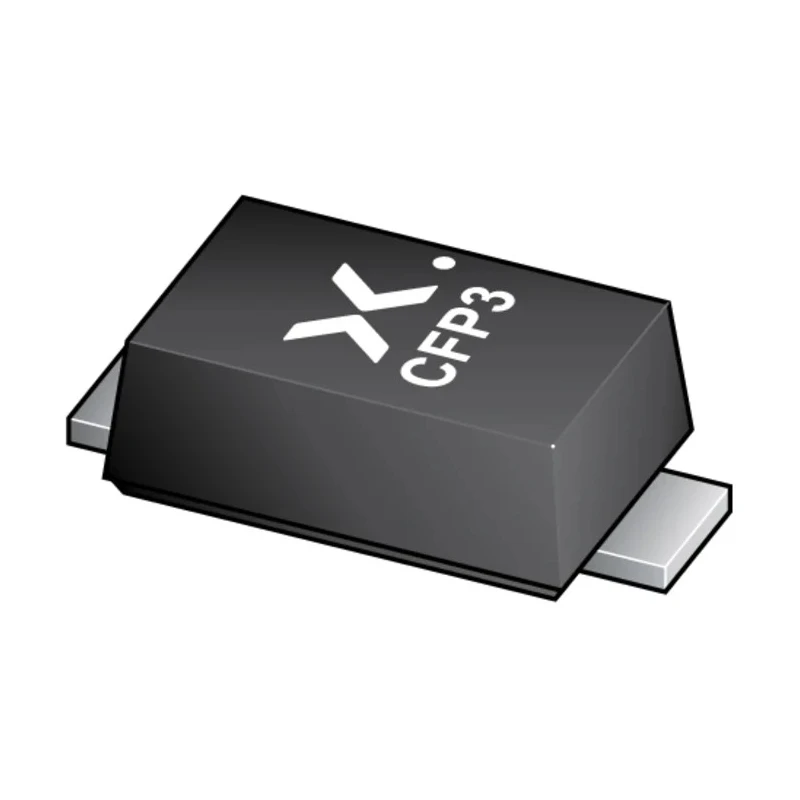

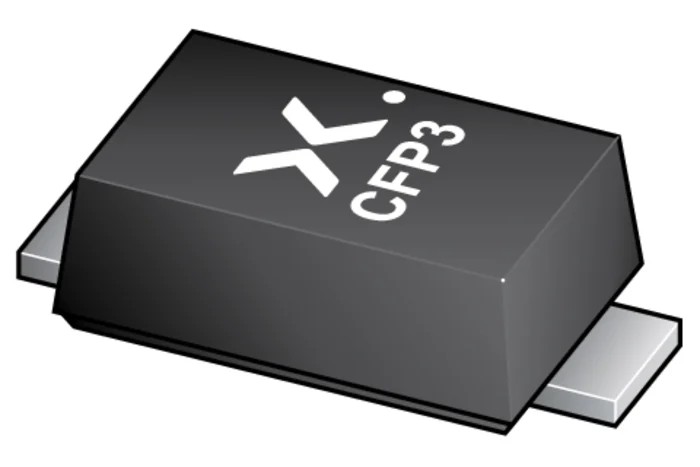

Nexperia Schottky Diode 100 V 2.8 A Surface Mount SOD-123W Package PMEG10020ELRX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG10020ELRX |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG10020ELR |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123W |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2.8A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 830mV |
| Peak Reverse Recovery Time trr | 3.7ns |
| Average forward current | IF(AV) ≤ 2 A |
| Reverse voltage | VR ≤ 100 V |
Key Features
- This diode offers low forward voltage of 830 mV for efficient power rectification.
- It supports a peak surge current of up to 50 A for transient load handling.
- The component operates reliably over a temperature range from -55°C to 175°C.
- Equipped with AEC-Q101 automotive qualification to ensure robust performance.
- The device length, width, and height measure 2.8 mm, 1.9 mm, and 1.1 mm respectively for space-saving designs.
- Reverse current leakage is extremely low at 500 µA, enhancing energy efficiency.
- Peak reverse recovery time is fast at 3.7 ns, improving switching performance in circuits.
- The diode has 2 pins with a single diode configuration, suitable for discrete semiconductor applications.
Product Description
Nexperia PMEG10020ELRX is a medium-power Schottky barrier rectifier diode designed for surface mount applications in SOD-123W package. It offers a maximum continuous forward current of 2.8 A and peak repetitive reverse voltage of 100 V, making it ideal for efficient power conversion and rectification tasks in industrial, automotive, and electronic equipment.
This Schottky diode features a low forward voltage drop of 830 mV which reduces power losses and heat generation. Its advanced clip-bonding technology supports high surge currents up to 50 A, lending robustness to demanding electrical environments.
The diode maintains excellent performance across a broad operating temperature range from -55°C to a maximum of 175°C, ensuring reliability in harsh conditions. It complies with AEC-Q101 automotive standards, making it suitable for automotive electronics and other high-reliability applications.
Low forward voltage minimizes power dissipation during conduction. High surge current capability for transient load resilience. Extremely low leakage current enhances energy efficiency. Compact SOD-123W package supports high-density PCB layouts.
Fast peak reverse recovery time reduces switching losses. Single diode configuration with 2 pins eases mounting and soldering. Qualified to automotive grade standards (AEC-Q101).
This diode is widely used in power supplies, voltage clamping, freewheeling diodes for inductive loads, and battery protection circuits. It is suitable for industrial, electronic, automotive, and power management applications where space and efficiency are critical factors.
Explore EnvMart’s comprehensive range of semiconductor components to complement this diode for robust electronic design solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2.8 A.
This diode has a peak reverse repetitive voltage rating of 100 V.
The forward voltage drop of this model is 830 mV.
It can handle a peak non-repetitive forward surge current of up to 50 A.
This diode operates reliably over a temperature range from -55°C to 175°C.
The diode is packaged in a SOD-123W surface mount package.
The peak reverse recovery time is 3.7 ns.
This model has 2 pins in a single diode configuration.
It complies with the AEC-Q101 automotive standard.
The reverse current leakage for this diode is extremely low at 500 µA.
The dimensions are 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
This diode is commonly used in power supplies, voltage clamping, and battery protection circuits.
