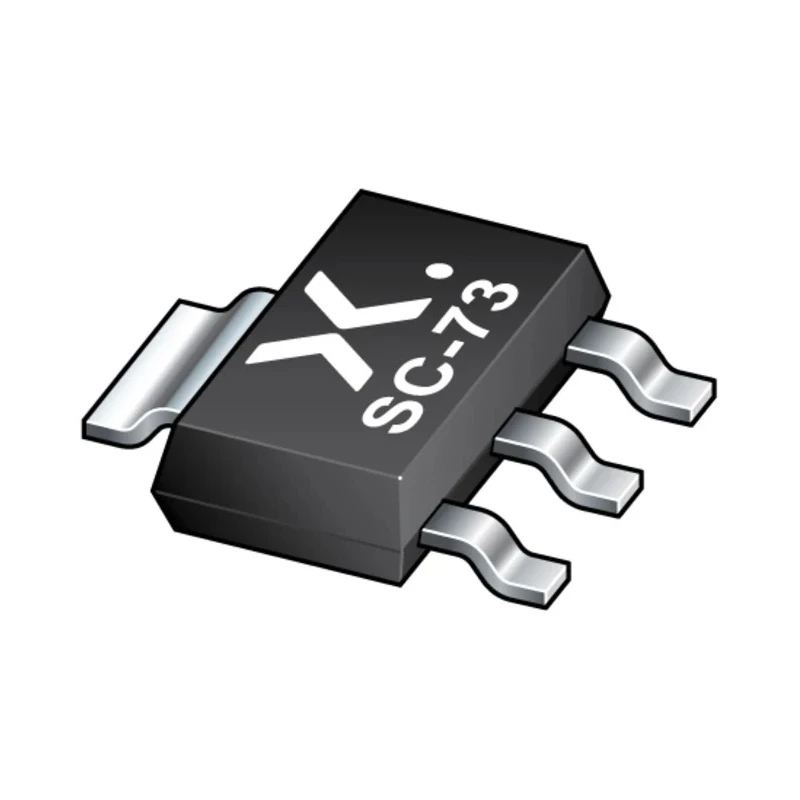

Nexperia 1 A NPN Transistor, 80 V, 3-Pin SOT-223 Surface Mount BCP56-16TX

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1 A NPN Transistor, 80 V, 3-Pin SOT-223 Surface Mount BCP56-16TX

Name: Nexperia 1 A NPN Transistor, 80 V, 3-Pin SOT-223 Surface Mount BCP56-16TX
Brand: Nexperia
SKU: 214883
Price: 0.1 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.65mm
Length	6.5mm
Model	BCP56-16TX
Width	3.5mm
Mount Type	Surface
Series	BCP56
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	80V
Minimum DC Current Gain hFE	40
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	100V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1.35W
Maximum DC Collector Current Idc	1A
Transistor Configuration	Single
Maximum Transition Frequency ft	180MHz
onsemi BCP56-16T1G Transistor, 1 A NPN, 80 V, 4-Pin SOT-223Brand	onsemi

Key Features

Maximum collector current of 1 A suitable for medium power applications.
Collector-emitter voltage rating is 80 V ensuring robustness in various circuits.
Compact SOT-223 plastic surface mount package with 3 pins for space-saving PCB designs.
High power dissipation capacity of 1.35 W allowing reliable operation under load.
Operating temperature range from -55°C to 150°C suitable for industrial environments.
NPN polarity with single transistor configuration for switching and amplification use cases.
Minimum DC current gain (hFE) of 40 providing stable transistor gain.
Automotive standard AEC-Q101 qualification ensures high reliability and quality.

Product Description

Nexperia BCP56-16TX is an NPN bipolar transistor designed for medium power switching and amplification applications, featuring a maximum DC collector current of 1 A and a collector-emitter voltage of 80 V. It is housed in a compact 3-pin SOT-223 surface mount plastic package, providing efficient heat dissipation and space-saving advantages for modern electronic circuits.

This transistor supports an operating temperature range from -55°C to 150°C, making it suitable for demanding industrial and automotive environments. It offers a high power dissipation of 1.35 W and a minimum DC current gain (hFE) of 40, ensuring stable performance in signal and power stages.

The device is AEC-Q101 certified, meeting automotive quality standards, and is RoHS compliant, confirming its environmental safety. The small package size of 6.5 mm length, 3.5 mm width, and 1.65 mm height makes it ideal for compact PCB layouts requiring reliable medium power transistors.

Maximum collector current of 1 A suitable for medium power applications. Collector-emitter voltage rating of 80 V supporting varied circuit requirements. 3-pin SOT-223 surface mount plastic package for compact assemblies.

High power dissipation of 1.35 W enabling reliable thermal management. Wide operating temperature range from -55°C to 150°C for industrial use. Single NPN transistor configuration with minimum current gain of 40. AEC-Q101 automotive qualification for enhanced quality assurance.

RoHS certified for environmentally friendly electronics. Compact dimensions of 6.5 x 3.5 x 1.65 mm aiding dense PCB designs.

This transistor is widely used in industrial, automotive, power management, and consumer electronics applications. It provides a robust switching element or amplifier stage in discrete semiconductor assemblies. Engineers looking for a reliable medium power bipolar transistor can rely on the Nexperia BCP56-16TX for efficient performance and compliance with automotive and environmental standards.
