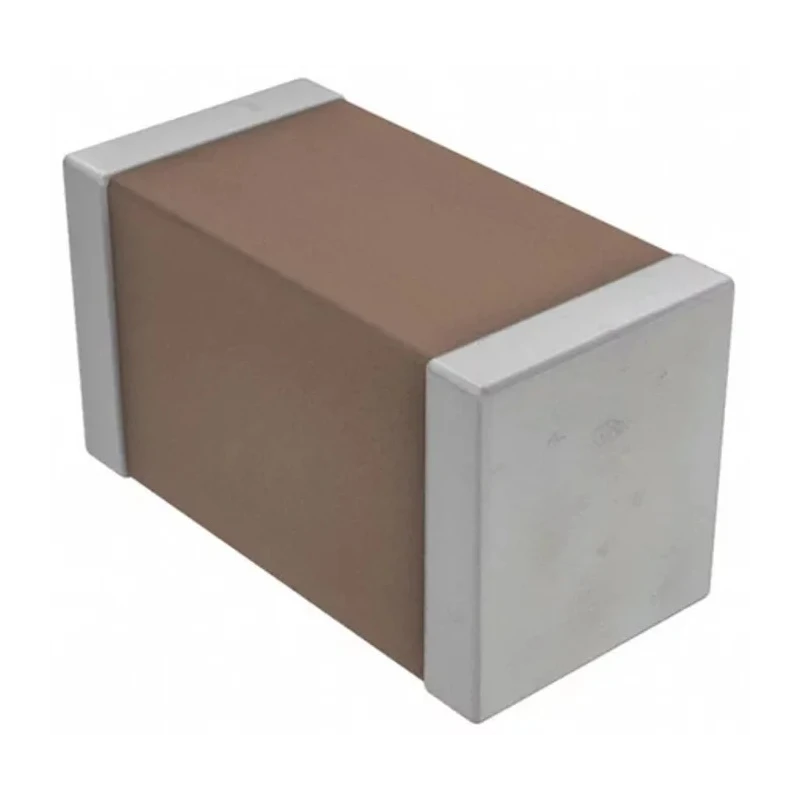

TDK Multilayer Ceramic Capacitor 470 nF, 25V DC, ±10 %, 0603 Surface Mount, X5R Dielectric CGA3E3X5R1E474K080AB

TDK CGA3E3X5R1E474K080AB Multilayer Ceramic Capacitor delivers high reliability for electronic applications requiring compact form, stable capacitance, and automotive-grade compliance. With a capacitance of 470 nF and rated voltage of 25V DC, this capacitor is constructed using X5R dielectric material, offering ±10 % tolerance for predictable performance across varying temperatures. Its 0603 package size makes it ideal for densely populated surface-mount PCBs, supporting automated high-accuracy mounting.

The CGA series utilizes precision multilayer ceramic technology, resulting in low ESR and excellent frequency characteristics with reduced self-heating and high ripple resistance. This part is AEC-Q200 qualified, ensuring it meets rigorous automotive-industry standards and can be deployed in critical battery line smoothing, sensor modules, engine control, anti-lock brake systems, infotainment devices, smart meters, smart grids, solar inverters, and AC-DC battery charger circuits.

Its compact size of 1.6 mm × 0.8 mm × 0.8 mm enables integration into space-limited designs, and solder terminations guarantee secure PCB connectivity. Tape and reel packaging facilitate efficient handling and pick-and-place operations during PCB assembly.

The X5R dielectric ensures stable operation over the temperature range - 55°C to 85°C. Class II suppression class further extends its suitability for noise and ripple filtering in demanding environments. Manufactured in Japan, this capacitor provides consistent quality for professional-grade electronics, automotive, and industrial circuits.

This highly reliable multilayer ceramic capacitor is essential for designers seeking a balance of performance, durability, and automated production readiness in advanced electronic, automotive, and energy systems.

Reliable 0603 size capacitor for surface mounting applications. Offers a capacitance of 470 nF and rated for 25V DC operation. Features X5R dielectric with ±10 % tolerance for stable performance. Automotive-grade AEC-Q200 compliant for demanding environments.

Operating temperature range from - 55°C to +85°C. Low ESR and low stray capacitance with excellent frequency characteristics. Supplied on tape and reel packaging for automated assembly. Compact dimensions: 1.6 mm length, 0.8 mm width, 0.8 mm height.

Solder termination type ensures stable connections. Browse more Multilayer Ceramic Capacitors and electronics components from TDK and explore industrial-grade passive solutions on EnvMart.
