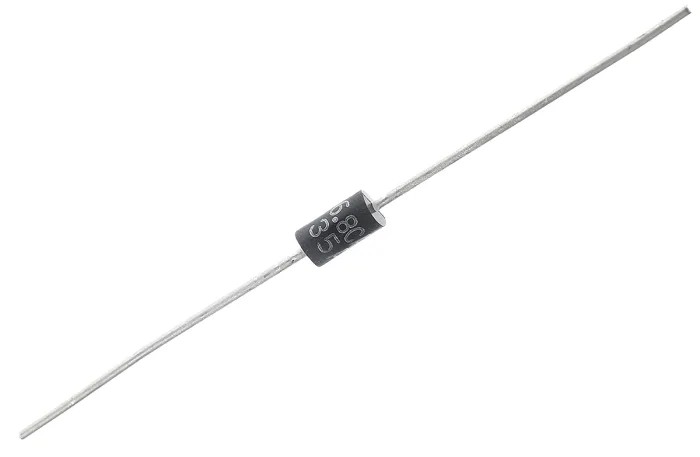

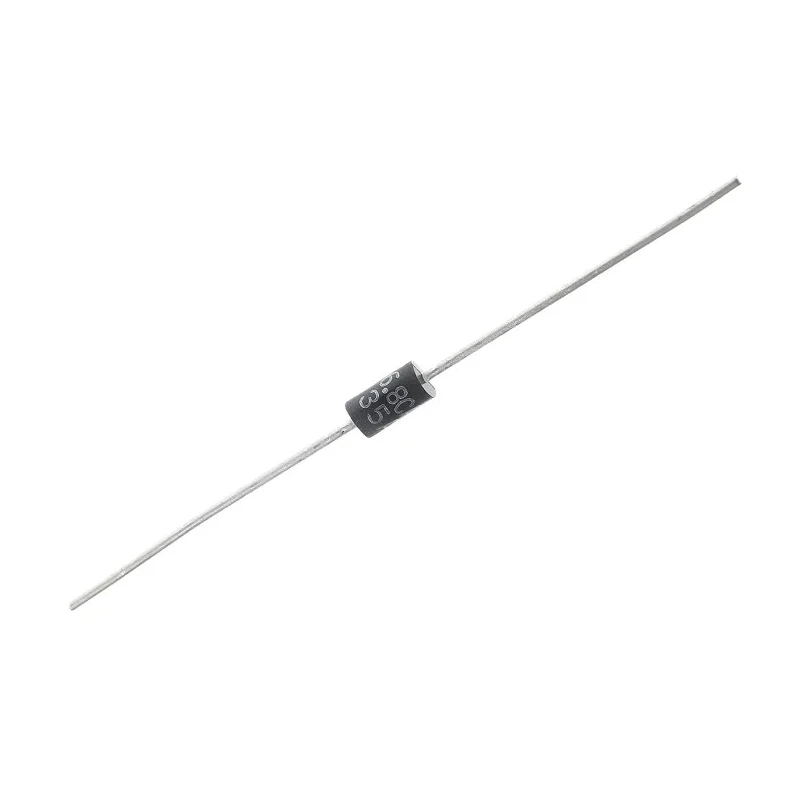

Vishay 1-Element Bi-Directional TVS Diode 600 W Peak Pulse Power, 2-Pin DO-15 Package P6KE6.8CA-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1-Element Bi-Directional TVS Diode 600 W Peak Pulse Power, 2-Pin DO-15 Package P6KE6.8CA-E3/54

Name: Vishay 1-Element Bi-Directional TVS Diode 600 W Peak Pulse Power, 2-Pin DO-15 Package P6KE6.8CA-E3/54
Brand: Vishay
SKU: 214110
Price: 0.68 USD
Availability: InStock



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	3.6mm
Brand	Vishay
Height	3.6mm
Length	7.6mm
Model	P6KE6.8CA-E3/54
Width	3.6mm
Mount Type	Through Hole
Series	TRANSZORB TVS
Maximum Operating Temperature	175°C
Package Type	DO-15
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	10.5V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	6.45V
Maximum Reverse Stand-off Voltage Vwm	5.8V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	10mA
Maximum Peak Pulse Current Ippm	57.1A
Maximum Reverse Leakage Current	1mA

Key Features

Single diode configuration suitable for bidirectional voltage protection.
Peak pulse power dissipation of 600 watts ensures robust surge handling.
Breakdown voltage minimum of 6.45 volts with clamping voltage at 10.5 volts.
Operating temperature range from -55°C to 175°C for wide industrial application.
Through-hole mount type with a compact DO-15 axial package.
Maximum reverse stand-off voltage is 5.8 volts for circuit protection accuracy.
Compliant with automotive standard AEC-Q101 ensuring reliability under automotive conditions.
Maximum peak pulse current of 57.1 amperes for high transient current capability.

Product Description

Vishay P6KE6.8CA-E3/54 is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from transient voltage spikes by clamping excessive voltage and absorbing surges. Rated at 600 W peak pulse power dissipation, this device offers reliable safeguarding of sensitive components in industrial, automotive, and consumer electronic applications.

Featuring a single diode configuration with bi-directional voltage protection, it supports transient suppression in either polarity. The device has a minimum breakdown voltage (Vbr) of 6.45 V and clamps at 10.5 V, making it effective for protecting low-voltage circuits. The maximum reverse stand-off voltage (Vwm) is 5.8 V, ensuring the diode does not conduct under normal operating voltages.

Its small through-hole DO-15 axial package measuring 7.6 mm in length and 3.6 mm in diameter and width allows easy integration into PCB designs. The diode operates reliably over a broad temperature range from -55°C up to a maximum of 175°C, conforming to the stringent automotive AEC-Q101 standard which validates its suitability for automotive electronics.

The P6KE6.8CA-E3/54 diode supports a peak pulse current (Ippm) of 57.1 A, capable of handling high transient surges without damage. Its low maximum reverse leakage current of 1 mA helps maintain circuit efficiency without significant leakage losses.

This TVS diode is ideal for transient voltage suppression in industrial electronic controls, automotive systems, telecommunications, power supplies, and other applications requiring robust, fast-acting voltage protection. The product enhances circuit protection, extends the service life of components, and helps prevent operational disruptions caused by voltage spikes.

Single-element, bi-directional TVS diode for transient voltage suppression. 600 W peak pulse power dissipation for handling surges. Breakdown voltage of 6.45 V and clamping voltage 10.5 V. Wide temperature operation from -55°C to 175°C.

DO-15 through-hole axial package for easy PCB integration. Meets AEC-Q101 standard for automotive reliability. Maximum reverse stand-off voltage of 5.8 V. 57.1 A peak pulse current tolerance. Low maximum reverse leakage current of 1 mA.

Explore our extensive range of semiconductor TVS Diodes at EnvMart for reliable electronic protection solutions suitable to your industrial, automotive, and commercial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Vishay P6KE6.8CA-E3/54 has a peak pulse power dissipation of 600 watts, allowing it to handle significant surge events effectively.

The maximum reverse stand-off voltage (Vwm) for this diode is 5.8 volts, ensuring it does not conduct under normal operating conditions.

This diode has a minimum breakdown voltage of 6.45 volts, which is crucial for its transient voltage suppression capability.

The clamping voltage for the P6KE6.8CA-E3/54 is 10.5 volts, which helps protect circuits from voltage spikes.

It can tolerate a maximum peak pulse current of 57.1 amperes, making it suitable for high transient current applications.

The DO-15 package of this diode measures 7.6 mm in length and has a diameter of 3.6 mm, allowing for easy integration into PCB designs.

This model operates reliably within a temperature range of -55°C to 175°C, suitable for various industrial applications.

The maximum reverse leakage current is 1 mA, which helps maintain circuit efficiency by minimizing leakage losses.

Yes, it complies with the automotive standard AEC-Q101, ensuring reliability under automotive conditions.

The Vishay P6KE6.8CA-E3/54 uses a through-hole mount type, facilitating straightforward installation on PCBs.

This model features a single diode configuration with bi-directional voltage protection, allowing it to suppress transients in either polarity.

This diode is suitable for applications in industrial electronic controls, automotive systems, telecommunications, and power supplies, where robust voltage protection is required.
