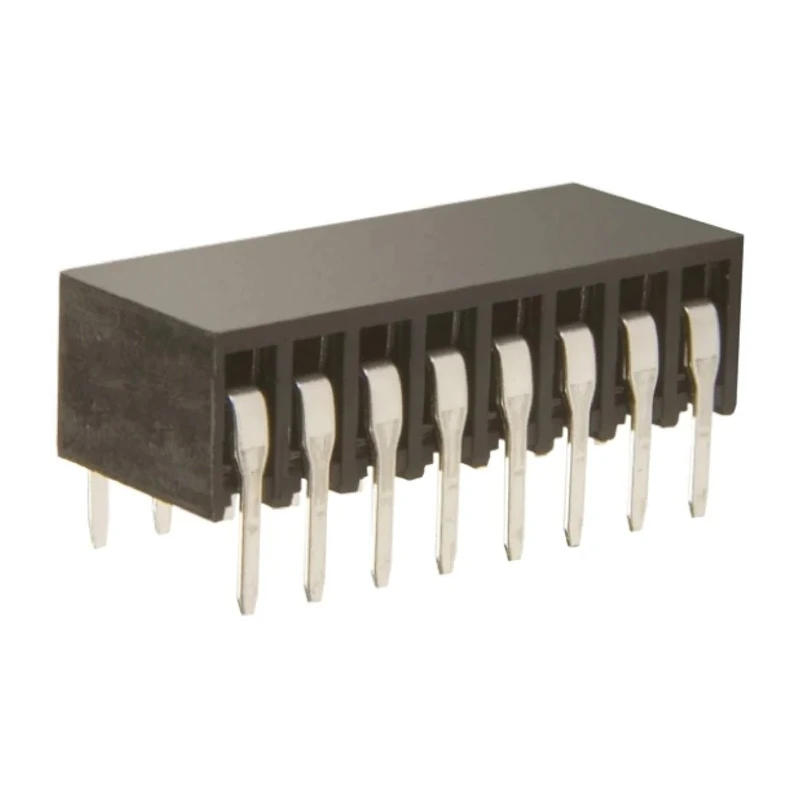

HARWIN M20 Series Right Angle Through Hole PCB Socket 16-Contact 2 Row 2.54 mm Pitch M20-7880846
Specifications
| Country of Origin | China |
|---|---|
| Brand | HARWIN |
| Orientation | Right Angle |
| Current | 12A |
| Model | M20-7880846 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact right angle through hole PCB socket with 16 contacts for high-density applications.
- Features a 2-row configuration with 2.54 mm pitch for reliable connections.
- Constructed with durable nylon housing and bronze female contacts.
- Supports a current rating of up to 12A per contact with tin over nickel plating.
- Operates in a temperature range of -40°C to 105°C for demanding environments.
- Socket utilizes high temperature UL94V-0 Liquid Crystal Polymer housings for heat resistance.
- Dual beam contact design ensures enhanced electrical connection reliability.
- Suitable for consumer electronics, industrial monitoring, and embedded PC systems.
Product Description
HARWIN M20-7880846 Right Angle Through Hole PCB Socket is a 16-contact, 2-row board-to-board connector featuring a 2.54 mm pitch designed for use in high-density PCB applications. The socket’s robust construction includes nylon housing rated UL94V-0 and bronze female contacts plated with tin over nickel, delivering excellent durability and electrical performance.
The connector supports a maximum operating temperature of 105°C and a minimum of -40°C, making it suitable for demanding industrial and commercial environments. It is engineered for a current rating up to 12A per contact and sustains up to 300 mating cycles, ensuring longevity and reliability in critical applications.
The dual beam contact design enhances electrical connection and reliability, making this socket ideal for embedded PCs, motherboards, consumer electronics, industrial monitoring systems, communication devices, and manufacturing controls. The right angle orientation and through hole mounting simplify assembly and integration on PCBs with height constraints.
Manufactured in China, this M20 series connector is recognized for compact size and high quality, meeting the requirements for increased PCB density while maintaining excellent connection integrity. The socket’s thermoplastic housings withstand standard reflow soldering processes.
Compact right angle through hole PCB socket with 16 contacts. Durable UL94V-0 rated nylon housing and bronze contacts plated with tin over nickel. Supports 12A current rating per contact and wide temperature tolerance from -40°C to 105°C.
Dual beam contact design improves connection reliability and up to 300 mating operations. Ideal for industrial, consumer electronics, communication, and embedded PC applications.
This product is part of EnvMart’s Electronics Components category, offering reliable PCB connectors for industrial and commercial uses. Browse more from HARWIN and M20 series connectors in our catalog.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 12A per contact.
The socket features a 2.54 mm pitch between contacts.
It is constructed with a nylon housing and bronze female contacts, which are plated with tin over nickel.
The HARWIN M20-7880846 operates within a temperature range of -40°C to 105°C.
This model has a total of 16 contacts arranged in a 2-row configuration.
It utilizes a solder termination type for connections.
This socket is designed with a right angle orientation for mounting.
It can sustain up to 300 mating cycles, ensuring longevity in applications.
The housing is rated UL94V-0, indicating high heat resistance.
It is a board-to-board connector system, suitable for high-density applications.
This product is manufactured in China.
It is suitable for consumer electronics, industrial monitoring, and embedded PC systems.
