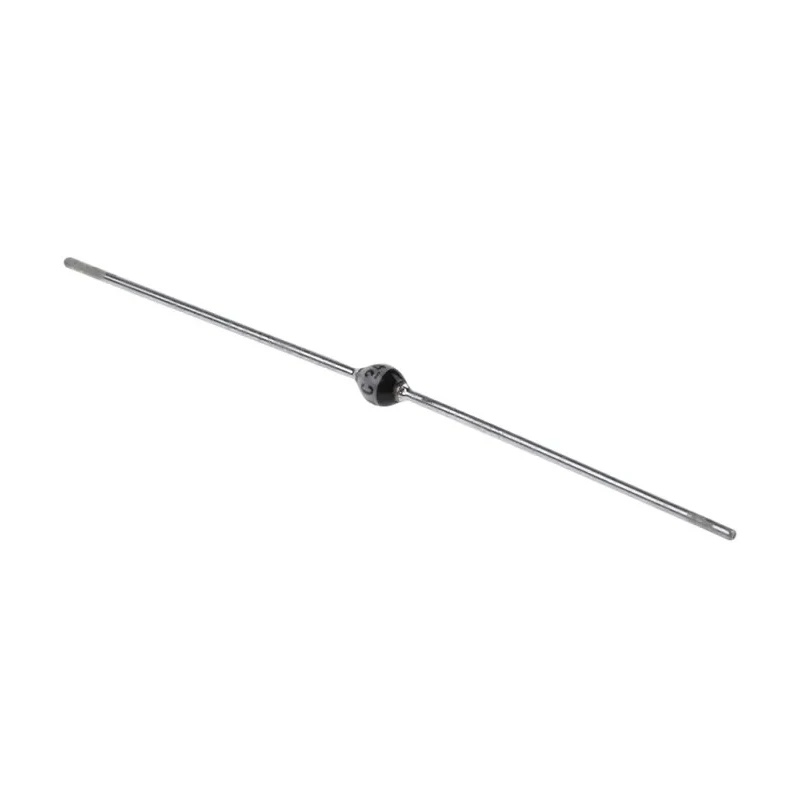

Vishay 24 V Zener Diode Single 3.25 W Through Hole 2-Pin SOD-57 BZT03C24-TAP

Vishay BZT03C24-TAP Zener Diode Single 3.25 W Through Hole 2-Pin SOD-57 offers robust voltage regulation and transient suppression capabilities for industrial and electronic applications. It is engineered for use in semiconductor circuits requiring precise voltage reference with enhanced electrical stability and durability.

This single diode configuration features a nominal Zener voltage of 24 V with a tolerance of ±6%, making it suitable for stabilized voltage supply designs and transient voltage suppression. Manufactured in the SOD-57 package, it supports through-hole mounting, facilitating secure placement in printed circuit boards and industrial hardware.

The device is capable of dissipating a maximum power of 3.25 W and can operate reliably within a temperature range up to 175°C. Its low maximum reverse leakage current of 1 μA ensures energy efficiency, while the maximum Zener impedance of 15 Ω contributes to consistent voltage regulation. The test current for validation is specified at 25 mA.

Compact dimensions of 3.6 mm height and 4 mm length allow integration into space-constrained designs. Its transient suppressor nature offers protective features against voltage spikes, enhancing circuit longevity in applications such as power supplies, industrial automation, and electronic instrumentation.

The design and technical precision make it ideal for use in various industrial sectors, including manufacturing, HVAC controls, automotive electronics, and laboratory equipment. The device's durability and reliable performance support high-quality manufacturing standards.

This diode has a nominal Zener voltage of 24 V with ±6% tolerance. It features a single diode configuration with one element per chip. The device uses a through-hole mount type and comes in SOD-57 package. Maximum power dissipation is rated at 3.25 W ensuring reliable operation under load.

The maximum operating temperature is 175°C, suitable for high-temperature environments. Pin count is 2, facilitating easy circuit integration. Maximum reverse leakage current is low at 1 μA, minimizing losses. Test current is 25 mA, with maximum zener impedance of 15 Ω.

The device is a transient suppressor type offering circuit protection. Height and length dimensions are 3.6 mm and 4 mm respectively, compact for various applications. Explore more Vishay semiconductor components and Zener diode solutions for precision electronics at EnvMart.
