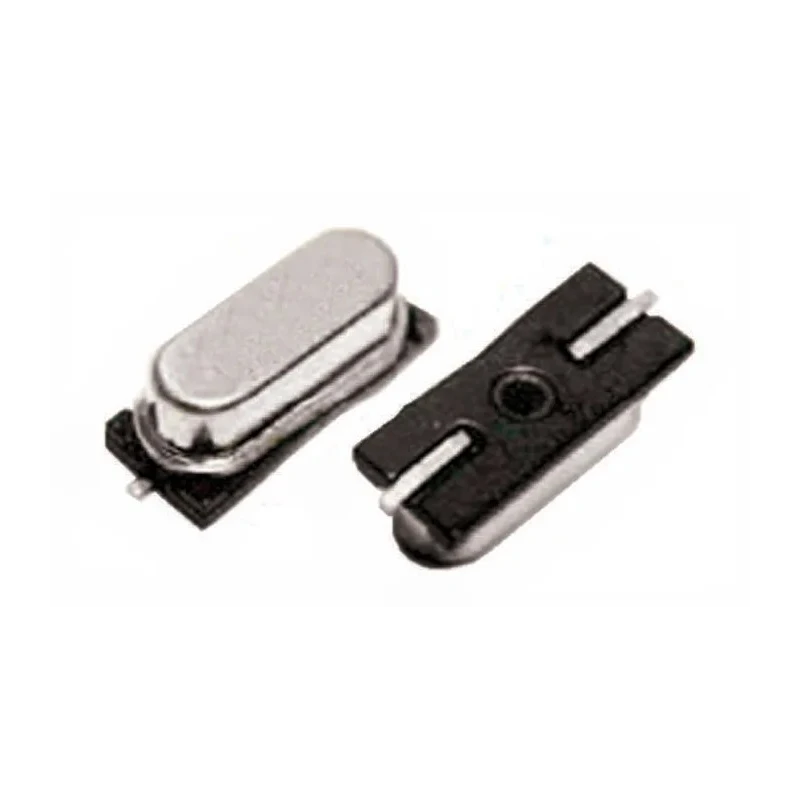

Euroquartz 3.6864 MHz Crystal Surface Mount 2-Pin 12.4mm x 4.5mm x 4.2mm ±30 ppm 18pF 3.6864MHz 49USMX/30/50/-40+85/18pF/ATF

Euroquartz presents the 3.6864MHz 49USMX/30/50/-40+85/18pF/ATF Crystal, a precision surface mount oscillator designed for electronic component applications requiring high frequency stability and reliability.

This crystal unit offers a standard frequency of 3.6864MHz with a narrow tolerance of ±30 ppm, guaranteeing accurate timing for sensitive circuits.

Designed for surface mounting, it provides a low-profile footprint with dimensions of 12.4 mm length, 4.5 mm width, and 4.2 mm height, allowing integration into compact PCB layouts.

The load capacitance of 18 pF is ideal for balanced oscillation, while the component features a two-pin design optimized for soldering on SMT boards.

It operates efficiently across a broad temperature range from -40°C to 85°C, making it suitable for industrial, automotive, and general electronic applications exposed to variable environments.

Euroquartz has ensured the crystal meets RoHS compliance, ensuring reduced environmental impact and compatibility with global electronics manufacturing standards. This crystal features a compact surface mount design suitable for SMT applications.

It has a frequency tolerance of ±30 ppm ensuring stable performance. Load capacitance is rated at 18 pF to match circuit requirements. The component is designed with a two-pin configuration for easy installation. Operating temperature ranges from -40°C to 85°C for versatile use.

Dimensions measure 12.4 mm in length, 4.5 mm in width, and 4.2 mm in height. Series resistance of 150 Ω is suitable for standard oscillator circuits. Compliant with RoHS standards for safe environmental use.

This crystal unit is ideal for electronics manufacturing, laboratory applications, automotive electronics, communication devices, and other precision timing circuits requiring reliable frequency generation.
