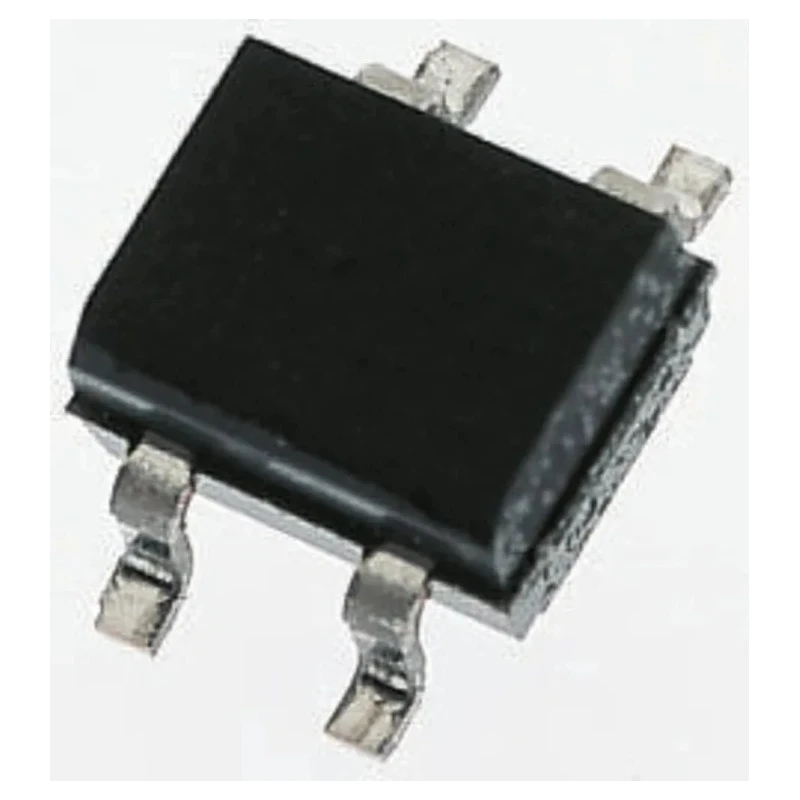

Broadcom Solid State Relay ASSR-4110-003E, 0.12 A Load Current, PCB Mount, 400 V Load Voltage, 1.7 V Control Voltage

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Solid State Relay ASSR-4110-003E, 0.12 A Load Current, PCB Mount, 400 V Load Voltage, 1.7 V Control Voltage

Name: Broadcom Solid State Relay ASSR-4110-003E, 0.12 A Load Current, PCB Mount, 400 V Load Voltage, 1.7 V Control Voltage
Brand: Broadcom
SKU: 213209
Price: 3.99 USD
Availability: InStock



Category Solid State Relay Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	2mm
Length	4.3mm
Model	ASSR-4110-003E
Width	4.4mm
Mount Type	PCB
Output type	MOSFET
Series	ASSR-4110
Maximum Operating Temperature	+85°C
Contact Configuration	SPST
Package Type	SOP-4
Minimum Operating Temperature	-40°C
Terminal type	4-Pin
Switching Function	AC/DC Switching
Maximum Load Current	0.12A
Standards/Approvals	CSA, IEC, RoHS, UL
Maximum Load Voltage	400V
Minimum Load Voltage	-400V
Minimum Control Voltage	1.1V
Maximum Control Voltage	1.7V
Off State Leakage Current	1μA
On State Resistance	5.5Ω

Key Features

Compact SOP-4 package with PCB mount type suitable for high-density circuits.
Operates reliably between -40°C and +85°C temperature range.
Uses MOSFET output type with low on-state resistance of 5.5 ohms.
Supports AC/DC switching with a control voltage range of 1.1 V to 1.7 V.
4-pin terminal configuration providing Single Pole Single Throw (SPST) contact system.
Very low off-state leakage current of 1 μA ensuring power efficiency.
Compliant with CSA, IEC, RoHS, and UL standards for industrial safety.

Product Description

Broadcom ASSR-4110-003E Solid State Relay is a reliable and compact PCB-mounted device designed for switching AC and DC loads up to 0.12 A with a maximum load voltage of 400 V. Featuring a low on-state resistance of 5.5 ohms and a MOSFET output type, it ensures efficient current management and minimal power loss.

Housed in a small SOP-4 package measuring 4.3 mm by 4.4 mm by 2 mm, this relay's 4-pin terminal configuration supports a SPST contact system. It operates effectively across a temperature range from -40°C to +85°C, making it suitable for industrial, automation, and control applications.

The control voltage range of 1.1 V to 1.7 V allows for precise activation via an infrared LED driver circuit. The device offers very low off-state leakage current of only 1 μA, reducing energy waste in non-activated conditions.

It meets multiple international standards including CSA, IEC, RoHS, and UL, guaranteeing compliance with safety and environmental requirements. The solid state construction ensures silent operation and high mechanical durability compared to electromechanical relays.

Compact PCB mount SOP-4 package for efficient space usage. Capable of switching AC/DC currents up to 0.12 A at 400 V load voltage. Low loss MOSFET output stage and low on-state resistance (5.5 Ω). 4-pin SPST contact configuration suitable for a wide range of applications.

Wide operating temperature range: -40°C to +85°C. High reliability with no mechanical parts, ensuring silent and durable operation. RoHS compliant and meets multiple certification standards for safety and environmental friendliness.

This solid state relay is ideal for industrial automation systems, electronic control circuits, and other electrical equipment requiring reliable and fast switching of small AC/DC loads. It facilitates improved production efficiency and safe load control in various electronics and electrical installations.
