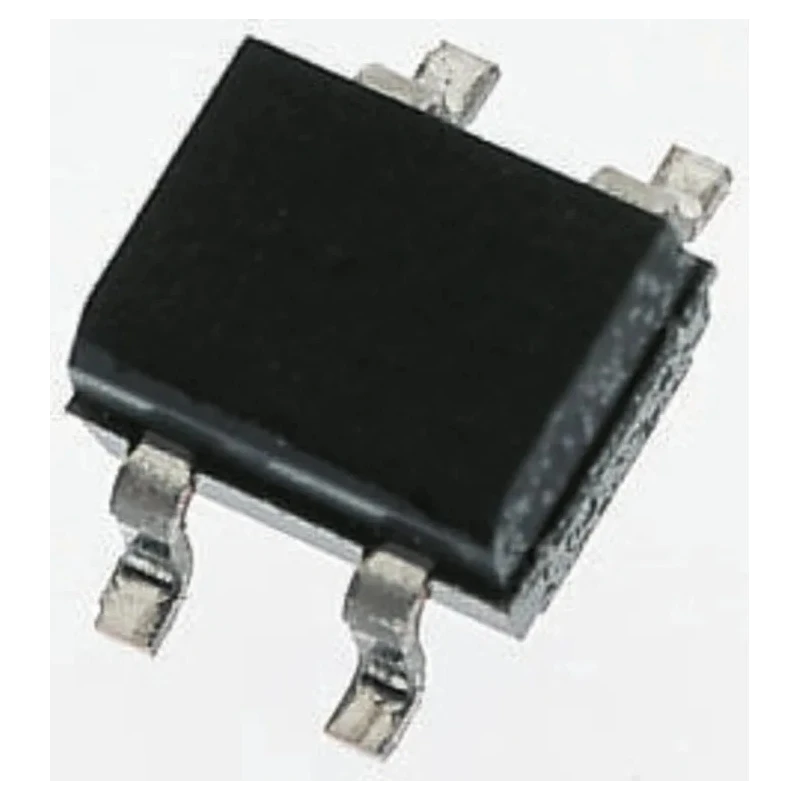

Broadcom Solid State Relay, PCB Mount, ASSR-4110 Series, 0.12 A Load Current, 400 V Load Voltage, 1.7V ASSR-4110-003E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 2mm |
| Length | 4.3mm |
| Model | ASSR-4110-003E |
| Width | 4.4mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | ASSR-4110 |
| Maximum Operating Temperature | +85°C |
| Contact Configuration | SPST |
| Package Type | SOP-4 |
| Minimum Operating Temperature | -40°C |
| Terminal type | 4-Pin |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 0.12A |
| Standards/Approvals | CSA, IEC, RoHS, UL |
| Maximum Load Voltage | 400V |
| Minimum Load Voltage | -400V |
| Minimum Control Voltage | 1.1V |
| Maximum Control Voltage | 1.7V |
| Off State Leakage Current | 1μA |
| On State Resistance | 5.5Ω |
Key Features
- PCB mount package type enables easy integration in electronic circuits.
- Maximum load current of 0.12 amperes suitable for low power applications.
- Operates with control voltage range of 1.1V to 1.7V for precise switching.
- Constructed with MOSFET output for efficient solid-state operation.
- Compact SOP-4 package measures 4.3mm length, 4.4mm width, and 2mm height.
- Wide operating temperature range from -40°C to +85°C ensures reliability.
- Low off state leakage current of 1μA minimizes power loss.
- Single pole single throw (SPST) contact configuration supports simple switching needs.
Product Description
Broadcom ASSR-4110-003E solid state relay is a PCB mount device from the ASSR-4110 series designed for industrial and electronic applications requiring reliable AC and DC switching. It supports a maximum load current of 0.12 amperes and a load voltage up to 400 volts, controlled by a low voltage input signal ranging between 1.1V to 1.7V. The device uses a MOSFET output stage allowing efficient switching with low power loss.
The relay is housed in a compact SOP-4 package measuring 4.3 mm length, 4.4 mm width, and 2 mm height, making it suitable for densely populated circuit boards. Its operational temperature range from -40°C to +85°C ensures stable performance under harsh environmental conditions. The low off state leakage current of 1 microampere enhances energy efficiency, while the on state resistance of 5.5 ohms optimizes conduction.
This relay is equipped with a 4-pin terminal and features a single pole single throw (SPST) contact configuration, providing straightforward switching control. The product maintains certifications for CSA, IEC, RoHS, and UL standards, making it suitable for industrial, automation, and control system applications.
PCB mount type for compact integration. Supports 0.12A maximum load current. Load voltage rating up to 400V AC or DC. Control voltage from 1.1 to 1.7 volts. MOSFET output technology for efficient switching. Temperature operation from -40°C to +85°C.
Extremely low off state leakage current (1µA). SPST contact configuration for simple switching. Compact SOP-4 package dimensions (4.3 × 4.4 × 2 mm). Certified to CSA, IEC, RoHS, and UL standards.
The Broadcom ASSR-4110-003E solid state relay is ideal for use in industrial automation systems, control circuits, HVAC equipment, manufacturing processes, and other electronic control applications. It offers efficient switching capabilities, high reliability, and compliance with relevant safety standards.
Explore the full range of Solid State Relays and other electrical components in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.12 amperes, making it suitable for low power applications.
It supports a maximum load voltage of up to 400 volts, applicable for both AC and DC switching.
The control voltage range for this model is between 1.1 volts and 1.7 volts, allowing for precise switching.
The SOP-4 package measures 4.3 mm in length, 4.4 mm in width, and 2 mm in height.
The off state leakage current is 1 microampere, which helps minimize power loss.
This model uses a MOSFET output stage, which allows for efficient solid-state operation.
It operates within a temperature range of -40°C to +85°C, ensuring reliable performance in various environments.
This relay features a single pole single throw (SPST) contact configuration, suitable for simple switching needs.
It is certified to CSA, IEC, RoHS, and UL standards, making it compliant with relevant safety regulations.
This model is designed for PCB mounting, facilitating easy integration into electronic circuits.
The on state resistance is 5.5 ohms, which optimizes conduction during operation.
It is suitable for industrial automation systems, control circuits, HVAC equipment, and other electronic control applications.
