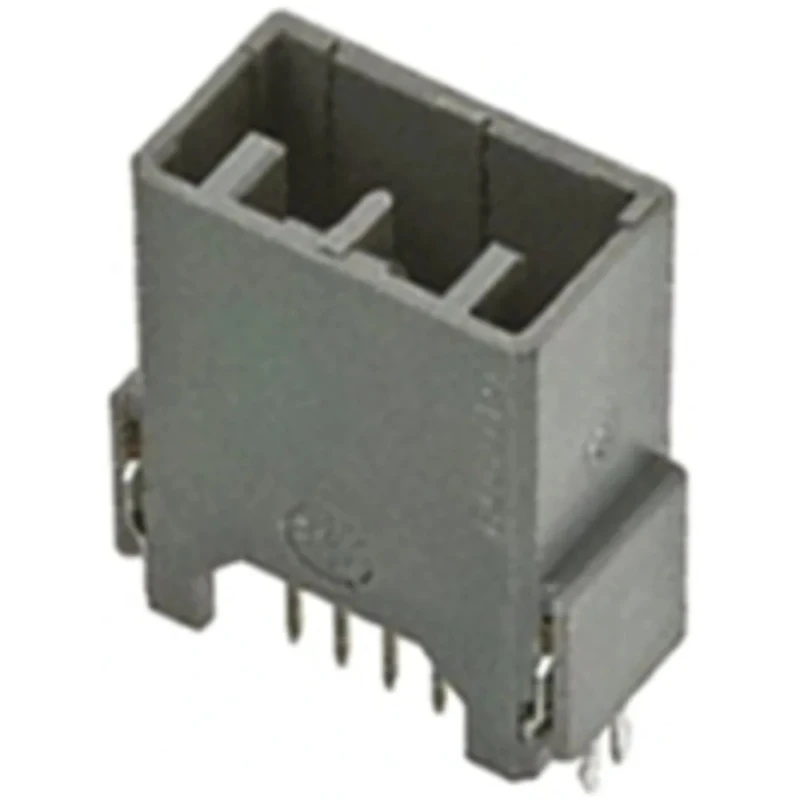

JAE MX34 Series Straight Through Hole Shrouded PCB Header 5 Contacts 2.2 mm Pitch 3A MX34
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Current | 3A |
| Model | MX34 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Syndiotactic Polystyrene |
| Contact Material | Brass |
| Series | MX34 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.2mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Shrouded design ensures secure and reliable connector mating.
- Single row configuration with 5 male contacts.
- Made with brass contacts plated with tin for corrosion resistance.
- Housing constructed from glass filled syndiotactic polystyrene for durability.
- Suitable for automotive and general electronic applications.
- Through-hole mounting type for robust PCB connection.
- Operates reliably between -40°C to 85°C temperature range.
- Features a solder termination type for secure assembly.
Product Description
JAE MX34 Series MX34 Straight Through Hole Shrouded PCB Header with 5 contacts and a 2.2 mm pitch delivers a reliable electrical interface solution suitable for automotive and general electronics industries. This single row, wire-to-board connector uses brass contacts plated with tin mounted through-hole on printed circuit boards for robust electrical and mechanical integrity.
The housing is made of glass filled syndiotactic polystyrene, providing mechanical strength and chemical resistance suitable for demanding environments. Its operational temperature range extends from -40°C to 85°C, ensuring dependable performance in extreme conditions.
The connector features a shrouded design which enhances mating security and contact protection. The male contact gender configuration with a solder termination type ensures easy and effective PCB assembly. This product uses JAE's MX34 series proven double locking mechanism to prevent incomplete insertions and enhance reliability.
This connector series suits automotive applications by reducing mating and unmating forces to 80N or less and improving workability. The box type pin header construction also resists external forces and twisting, thanks to the double leaf spring contact design.
The MX34 series represents a compact and high-performance choice for connecting printed circuit boards in automotive, industrial, and consumer electronic equipment. Shrouded 5 contact straight through hole PCB Header. 2.2 mm pitch with single row configuration.
Brass contacts plated with tin for reliable conductivity. Glass filled syndiotactic polystyrene housing for durability. Wire-to-board connector system with solder termination. Mating retention with double locking mechanism.
Operating temperature range from -40°C to 85°C. Suitable for automotive and industrial use cases. Proven resistance to mechanical and external forces. Easy insertion with secure locking and contact protection. Explore our Electronics & Electricals category for more high-quality PCB connector solutions to support your industrial, automotive, and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JAE MX34 Series PCB header has a maximum current rating of 3A.
This model features a pitch size of 2.2 mm between the contacts.
It operates reliably within a temperature range of -40°C to 85°C.
The contacts are made of brass plated with tin, while the housing is constructed from glass filled syndiotactic polystyrene.
This connector features a total of 5 male contacts.
The JAE MX34 Series uses a solder termination type for secure assembly.
This model utilizes a through-hole mounting type for robust PCB connection.
It is suitable for automotive and general electronic applications, providing reliable electrical interfaces.
Yes, it features a shrouded design that enhances mating security and contact protection.
The contacts are oriented in a straight configuration.
It incorporates a double locking mechanism to prevent incomplete insertions and enhance reliability.
The country of origin for this PCB header is India.
