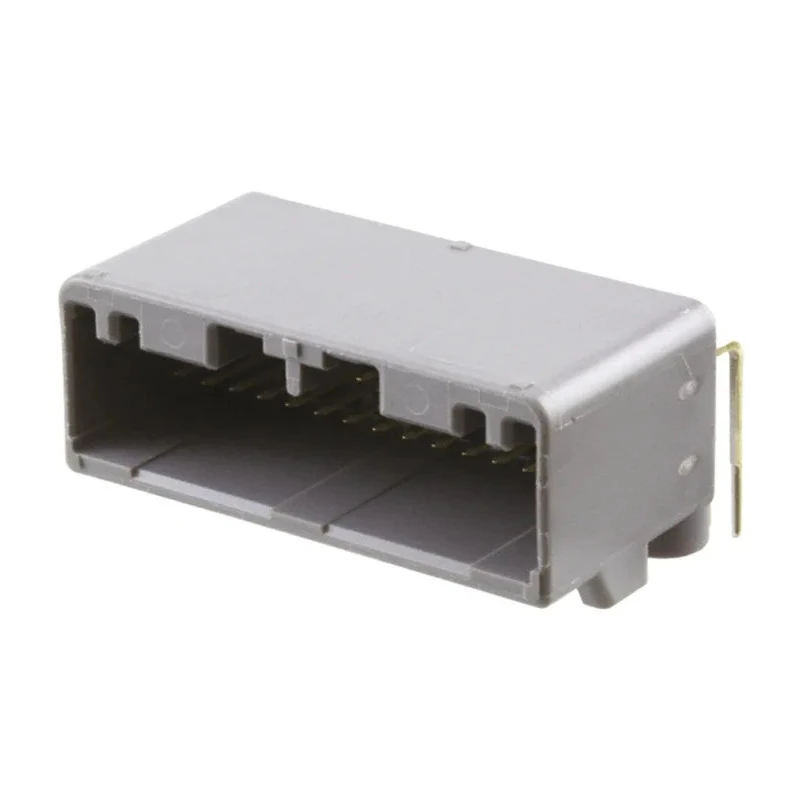

JAE MX34 Series Right Angle Through Hole PCB Header, 28 Contacts, 2.2 mm Pitch, 2 Rows, Shrouded MX34

Free Delivery in India | Lowest Global Shipping Charges

JAE MX34 Series Right Angle Through Hole PCB Header, 28 Contacts, 2.2 mm Pitch, 2 Rows, Shrouded MX34



Category PCB Header Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Current	3A
Model	MX34
Mount Type	Through Hole
Housing Material	Glass Filled Syndiotactic Polystyrene
Contact Material	Brass
Series	MX34
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.2mm
Contact Plating	Tin
Number of Contacts	28
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
For MX34 socket housings see typical stock numbers	690-9852

Key Features

Supports a maximum current of 3A for various electronic applications.
Constructed with glass filled syndiotactic polystyrene housing for durability and performance.
Features brass contacts plated with tin to ensure good conductivity and corrosion resistance.
Right angle orientation facilitates convenient PCB mounting and space optimization.
Designed with a shrouded connector system and through-hole mount type for secure solder termination.
Operates reliably between -40°C to 85°C for diverse environmental conditions.
Includes a durable double locking mechanism and box type pin header for secure mating.
Suitable for automotive use with up to 40 poles to reduce mating force and improve workability.

Product Description

JAE MX34 Series Right Angle Through Hole PCB Header MX34 features a compact design with 28 electrical contacts arranged in 2 rows with a 2.2 mm pitch, optimized for automotive and industrial electronics applications.

The housing is made from glass filled syndiotactic polystyrene, providing high durability and resistance to environmental conditions. The brass contacts plated with tin ensure reliable electrical connections and corrosion resistance. This connector is shrouded and employs a right-angle orientation enabling efficient PCB layout and assembly.

With a current rating of 3A and operating temperature range from -40°C to 85°C, this PCB header is suitable for demanding environments including automotive, industrial, and manufacturing sectors. The connector utilizes a through-hole mount type facilitating solder termination and strong mechanical bond to PCB.

The MX34 series includes a preset-type double locking mechanism and box type pin header, which reduces mating force to less than 80N and enhances operational workability. The contacts are reinforced with a double leaf spring and lock spring bridge to safeguard against external mechanical loads and twisting.

Supports up to 28 contacts for complex circuit interfacing. Ensures reliable electrical performance with tin-plated brass contacts. Right angle, shrouded design for space saving and protection. Preset double locking mechanism guarantees secure housing retention.

Durable contact design resists external forces and enhances lifespan. Suitable for automotive and industrial applications requiring robust connectors. Operating temperature range covers typical usage in harsh conditions.

Compatible with MX34 socket housings (stock number 690-9852) for full connector assembly.

This PCB header is part of the JAE MX34 series, renowned for quality and reliability in electronic components for automotive and industrial connectors. It facilitates secure and efficient board-to-wire connections in complex electronic systems. Explore the range of PCB Headers and connectors available at EnvMart for your design and production needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a maximum current of 3A, making it suitable for various electronic applications.

It operates reliably between -40°C to 85°C, accommodating diverse environmental conditions.

This connector features 28 electrical contacts arranged in 2 rows with a pitch of 2.2 mm.

The housing is made from glass filled syndiotactic polystyrene, while the contacts are brass plated with tin for conductivity and corrosion resistance.

It employs a through-hole mount type, facilitating solder termination for a strong mechanical bond to the PCB.

The JAE MX34 Series features a right angle orientation, which aids in efficient PCB layout and assembly.

Yes, it is designed for automotive use and can handle demanding environments with its robust features.

The preset-type double locking mechanism ensures secure housing retention and reduces mating force to enhance operational workability.

It utilizes a wire-to-board connector system, facilitating secure and efficient board-to-wire connections.

The contacts in this model are male, designed for secure mating with compatible sockets.

It is compatible with MX34 socket housings, typically referenced by stock number 690-9852.

The contacts are reinforced with a double leaf spring and lock spring bridge to protect against external mechanical loads and twisting.
