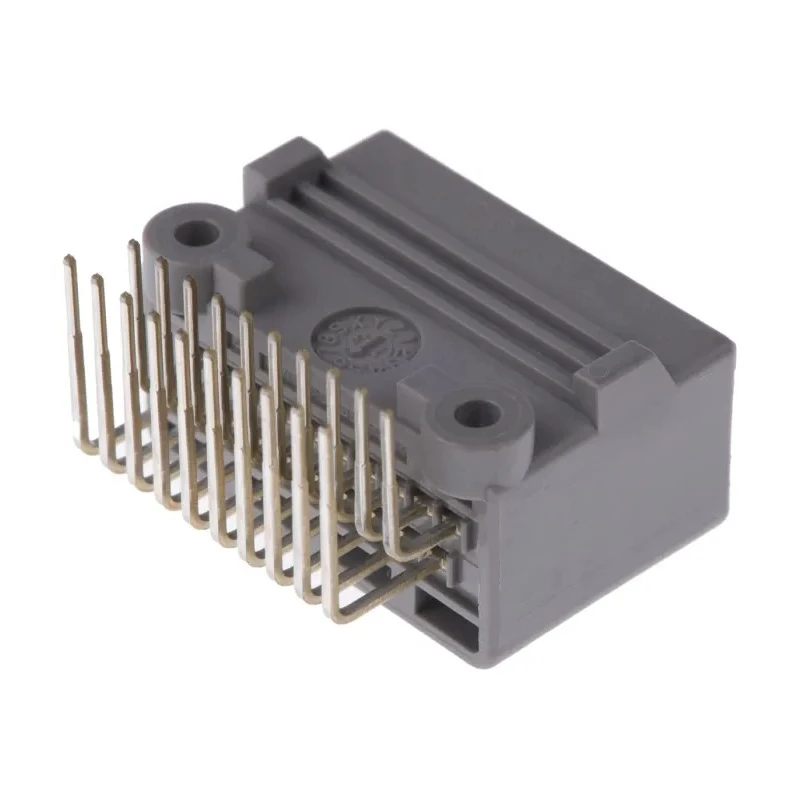

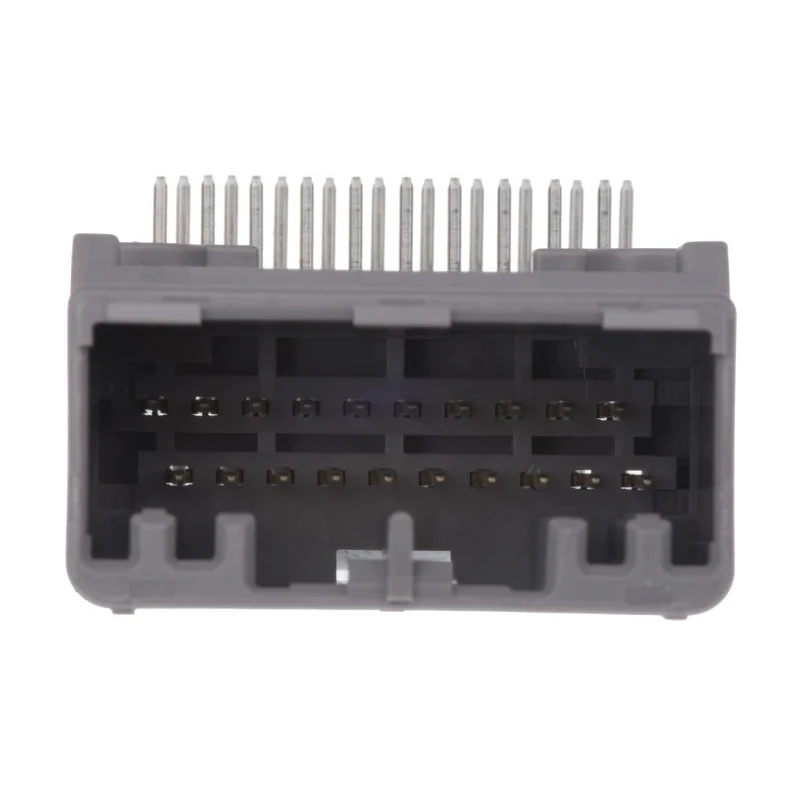

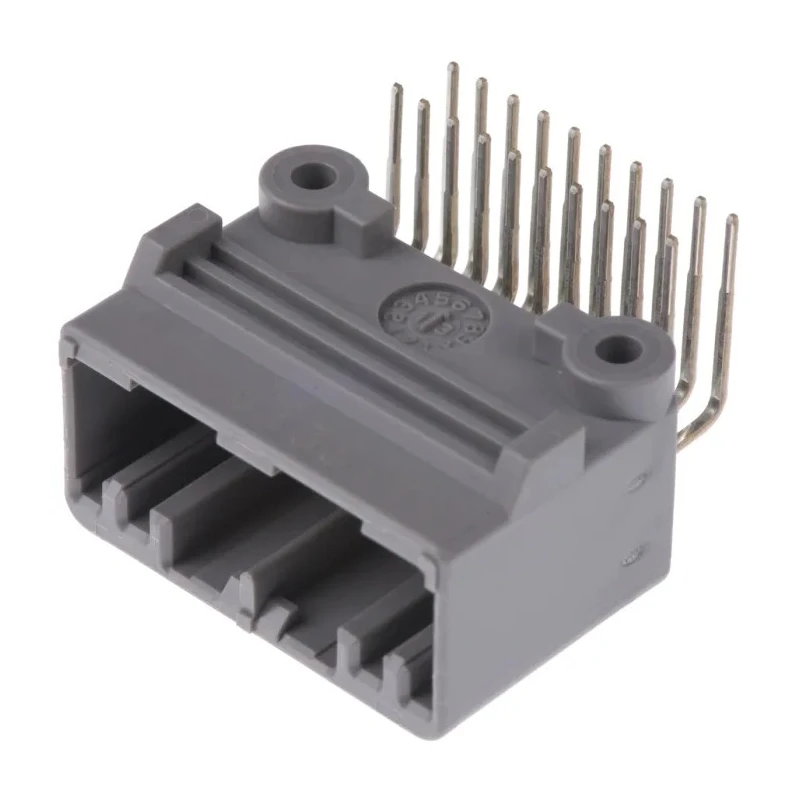

JAE MX34 Series Right Angle Through Hole PCB Header 20 Contact 2.2 mm Pitch 2 Row Shrouded

JAE MX34020NF1 MX34 Series Right Angle Through Hole PCB Header consists of 20 contacts arranged in 2 rows with a 2.2 mm pitch, designed for reliable wire-to-board connections in industrial and automotive electronics.

The housing material is glass filled syndiotactic polystyrene, providing robust mechanical and thermal properties suitable for demanding environments. It supports a current rating of 3A per contact, enabling efficient power handling within compact PCB spaces.

This shrouded header provides protection for the contacts and ensures secure mating with corresponding MX34 series socket housings, leveraging a preset double locking mechanism and a box-type pin header design to resist external mechanical stresses reliably.

The brass contacts with tin plating assure excellent solderability and corrosion resistance. Its right angle orientation facilitates neat PCB layout configurations, often essential in automotive and industrial electronic assemblies.

The connector operates effectively within a temperature range of -40°C to 85°C, enabling usage in harsh environmental conditions typical in automotive and industrial applications. Contact gender is male, designed for mated combinations with MX34 socket housings, such as those in RS stock number 690-9852.

Features such as a double leaf spring enhance resistance against twisting and external forces, contributing to the connector's durability. The locking spring bridge protects contacts from external loads, ensuring long-lasting electrical performance.

This product is ideal for automotive, industrial, manufacturing, and electronic component assembly applications requiring a high-reliability, low-force connector solution. The connector supports a maximum current rating of 3A for each contact.

Housing is made from glass filled syndiotactic polystyrene ensuring durability. Suitable for automotive applications with operating temperatures from -40°C to 85°C. Contacts are brass with tin plating for reliable solder termination.

Features a double locking mechanism and box type pin header for secure connections. The right angle orientation facilitates compact PCB layout designs. Shrouded design provides added protection against mishandling and mis-mating.

Male contact gender suitable for mating with MX34 socket housings. The connector system is wire-to-board for flexible cable assembly. Designed to reduce mating/unmating forces enhancing workability in manufacturing. Explore a wide range of PCB connectors and headers at EnvMart for industrial, automotive, and electronics manufacturing needs.
