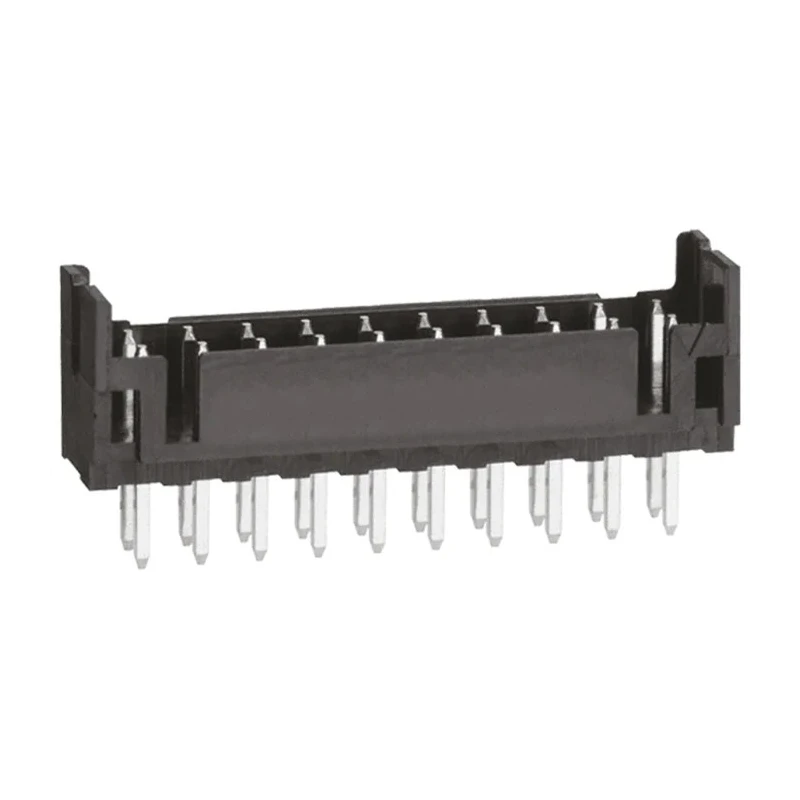

Hirose DF11 Series Straight Through Hole PCB Header 20 Contact 2 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact double row design with less than 5 mm depth saves PCB space.
- Robust four wall shrouded housing prevents incorrect insertion and twisting.
- Locking mechanism ensures secure mating with connector housing.
- Metal fittings increase retention on PCB and prevent solder peeling.
- Suitable for both through hole mounting and multiple signal applications.
- Operates within temperature range of -30°C to 85°C reliably.
- Current rating of 2A with a voltage rating of 250V AC for standard electronics use.
- Housing made of durable polyamide and contacts plated with tin over copper alloy.
Product Description

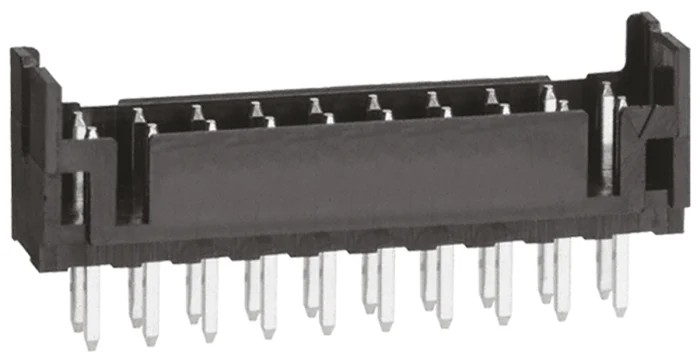

Hirose DF11-20DP-2DSA(24) Straight Through Hole PCB Header connector offers a 20 contact configuration arranged in 2 rows with a 2 mm pitch and a compact depth of less than 5 mm. This connector features a robust four wall shrouded polyamide housing that provides mechanical protection and prevents incorrect insertion during mating.
The header uses tin-plated copper alloy contacts designed for a reliable electrical connection with a current rating of 2 Amperes and voltage rating of 250 Volts. Its through-hole mounting style, combined with metal fittings, enhances PCB retention and resistance to solder peeling, making it ideal for applications requiring durable and secure connections.
The locking mechanism assures secure mating with the corresponding DF11 connector housings, suitable for both board-to-board and wire-to-board systems. Operating temperature range from -30°C to 85°C ensures reliable performance in various industrial and commercial environments.
This connector is widely used in compact digital electronics devices such as digital cameras, LCD panels, digital video recorders, automotive navigation systems, access control units, and electronic measurement instruments where space-saving and high reliability are critical.
Compact and space-efficient double row 2 mm pitch design. Shrouded housing with guide ribs to prevent mismating. Locking mechanism for secure connector retention. Metal fittings for enhanced PCB solder joint strength. Through-hole mounting suitable for board-to-board and wire-to-board use.
Current rating: 2A, voltage rating: 250V AC. Operating temperature range: -30°C to 85°C. Contact material is copper alloy with tin plating. Housing constructed from durable polyamide material. Explore more connectors and electronic components for your industrial and commercial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF11 Series PCB header has a current rating of 2 Amperes and a voltage rating of 250 Volts AC.
This model features a 2 mm pitch and has a total of 20 contacts arranged in 2 rows.
The housing is made from durable polyamide, and the contacts are constructed from copper alloy with tin plating.
It operates reliably within a temperature range of -30°C to 85°C.
The locking mechanism ensures secure mating with the corresponding DF11 connector housings, preventing accidental disconnection.
This unit supports through-hole mounting, suitable for both board-to-board and wire-to-board applications.
The compact design of this connector has a depth of less than 5 mm, saving PCB space.
It is widely used in compact digital electronics devices such as digital cameras, LCD panels, and automotive navigation systems.
The connector features a straight orientation for easy installation.
The termination type for this PCB header is solder, allowing for secure connections to the PCB.
The country of origin for this PCB header is Malaysia.
This connector system supports both board-to-board and wire-to-board configurations.
