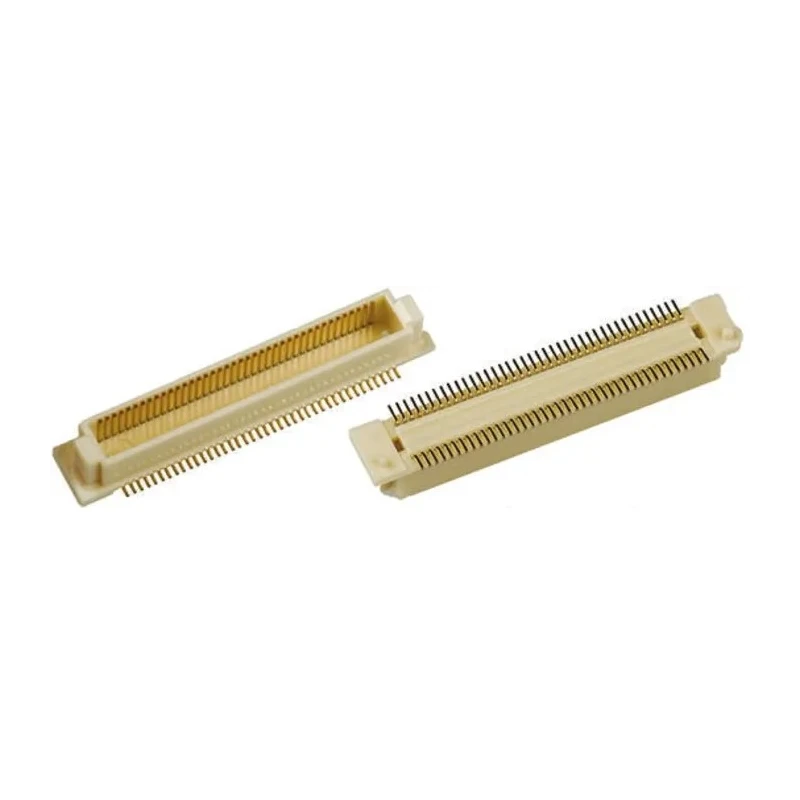

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 120 Contact(s), 0.6 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8C |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Provides high-speed transmission up to 3.125 Gbit/s for reliable signal integrity.
- Includes built-in guide ribs allowing +/- 0.6 mm misalignment for easy mating.
- Features bosses for PCB alignment to prevent misinsertion.
- Contacts are gold-plated phosphor bronze with spring deflection design for enhanced durability.
- Supports operating temperature range from -55°C to 85°C.
- Compact 0.6 mm pitch with 2-row layout for space-efficient board-to-board connection.
- Housing made from durable polyphenylene sulphide material.
- Designed for industrial, medical, broadcast, and POS terminal applications.
Product Description
Hirose FX8C-120P-SV1(91) PCB Header from the FunctionMAX FX8C Series is designed for high-speed, reliable board-to-board connectivity with 120 contacts arranged in 2 rows at a 0.6 mm pitch. This shrouded, straight surface mount header features gold-plated phosphor bronze contacts ensuring excellent durability and signal integrity up to 3.125 Gbit/s transmission speed. The housing is made from robust polyphenylene sulphide, ensuring long-term performance across a wide temperature range of -55°C to 85°C.
Its built-in mating guide ribs provide a tolerance of +/- 0.6 mm for easy and flexible alignment during assembly, while the PCB bosses help prevent misinsertion ensuring reliable connections. The contact spring deflection design enhances mechanical reliability and electrical continuity, aided by a 2 mm wiping distance for consistent contact performance. With SMT coplanarity tolerance less than 0.1 mm, the header supports tight manufacturing tolerances and assembly precision.
The FunctionMAX FX8C Series is well suited for industrial equipment, medical devices, servers, broadcast equipment, and POS terminals, making it a versatile connector for advanced electronic applications. This product is manufactured in Japan, guaranteeing quality and precision engineering.
High-speed transmission speed of 3.125 Gbit/s provides excellent signal integrity. Built-in guide ribs provide +/- 0.6 mm alignment tolerance for easy mating. Bodies include alignment bosses on PCB to prevent misinsertion.
2 mm wiping distance ensures strong electrical continuity. Contacts have spring deflection design for increased reliability. SMT coplanarity tolerance at solder area is less than 0.1 mm. Wide stacking height range between 5 mm to 16 mm for FX8C series.
Shrouded male contacts for secure board-to-board coupling. Housing made from high-quality polyphenylene sulphide for durability. Supports industrial, medical, broadcast, and POS terminal applications.
Choose Hirose FunctionMAX FX8C Series PCB headers for dependable industrial-grade connectivity solutions. Explore more in the PCB Headers category at EnvMart for high-performance connectors and electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FunctionMAX FX8C Series PCB header supports a maximum transmission speed of 3.125 Gbit/s, ensuring reliable signal integrity.
This model features a compact pitch size of 0.6 mm, allowing for space-efficient board-to-board connections.
The operating temperature range for this PCB header is from -55°C to 85°C, making it suitable for various applications.
This header has 120 contacts arranged in 2 rows, facilitating multiple connections in a compact design.
The contacts are made from gold-plated phosphor bronze, while the housing is constructed from polyphenylene sulphide.
The current rating for this model is 400 mA, suitable for various electronic applications.
This header utilizes solder termination, which is standard for secure connections on PCBs.
It includes built-in guide ribs that allow for a +/- 0.6 mm alignment tolerance, facilitating easy mating during assembly.
The SMT coplanarity tolerance at the solder area is less than 0.1 mm, ensuring high assembly precision.
This model is designed for use in industrial equipment, medical devices, servers, broadcast equipment, and POS terminals.
The connector system type for this PCB header is board-to-board, allowing for direct connections between two circuit boards.
This product is manufactured in Japan, ensuring quality and precision engineering.
