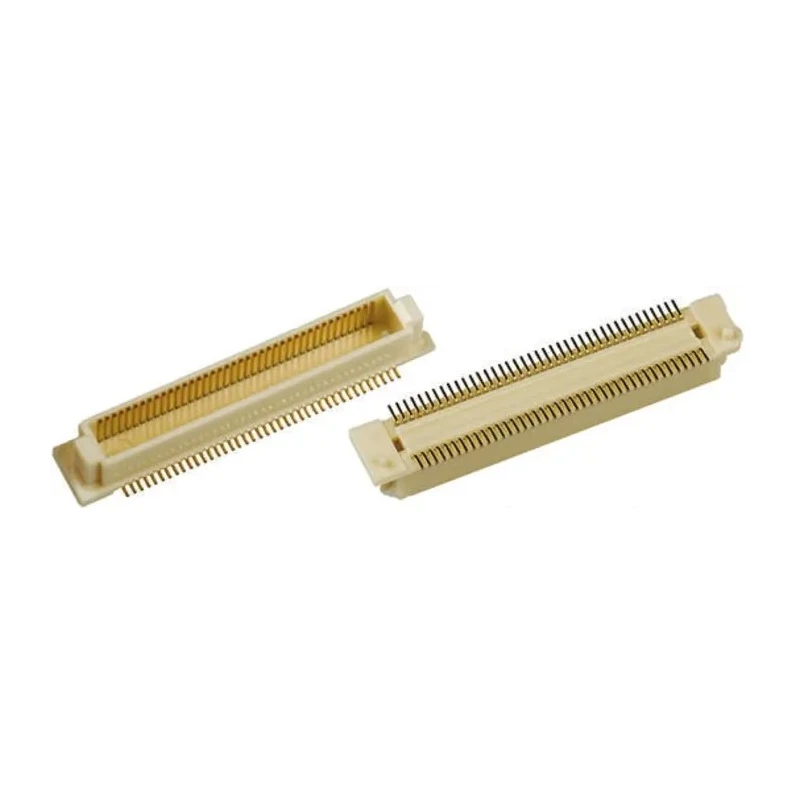

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 80 Contacts, 0.6 mm Pitch, 2 Row, Shrouded

Hirose FX8C-80P-SV(91) FunctionMAX FX8C Series Straight Surface PCB Header provides a high-quality, high-speed board-to-board connector solution with 80 contacts spaced at 0.6 mm pitch. It features a 2-row, shrouded, straight orientation housing made of polyphenylene sulphide, ensuring mechanical stability and robust performance in industrial, server, broadcast, medical, and POS terminal equipment environments.

This connector supports a maximum operating current of 400mA and voltage of 100V, enabling efficient electrical transmission with excellent reliability. The phosphor bronze contacts are gold-plated for enhanced conductivity and resistance to corrosion. Its spring deflection contact design improves connection reliability, while the integrated guide ribs provide +/- 0.6 mm self-alignment tolerance, simplifying mating operations.

The housing is surface mount type with a 0.6 mm contact and row pitch, designed specifically for compact PCB applications and ease of placement. This connector tolerates operating temperatures from -55°C to 85°C, suitable for a wide range of industrial and commercial use cases.

High-speed data transmission capability up to 3.125 Gbit/s ensuring signal integrity. Built-in guide ribs and bosses aid PCB alignment and prevent misinsertion. Wiping distance of 2 mm maintains strong electrical continuity.

Surface mount technology (SMT) with coplanar tolerance less than 0.1 mm for precise soldering. Wide stacking height options provide flexible design integration. Applications include servers, industrial and medical equipment, as well as POS terminals requiring compact, high-performance connectors.

Choose Hirose FunctionMAX FX8C Series PCB Headers for superior board-to-board connectivity in demanding industrial and commercial electronic applications. Browse the EnvMart catalog for more Hirose connectors and related electronic components.
