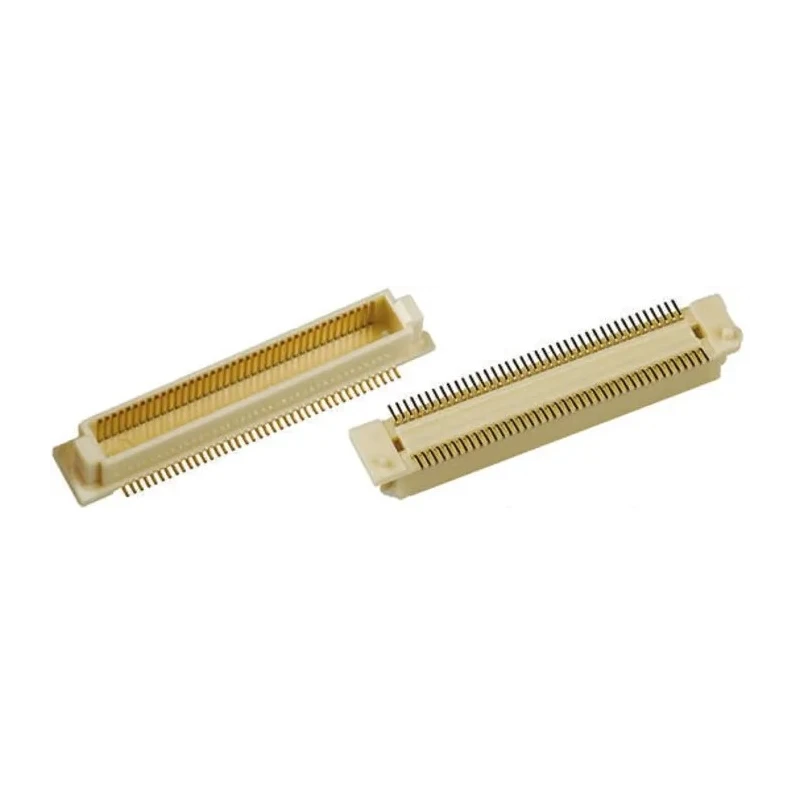

Hirose FunctionMAX FX8C Series Straight Surface PCB Header 80 Contacts 0.6 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8C |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Designed for high-speed transmission up to 3.125 Gbit/s.
- Features 2 rows with a shrouded straight surface mount design.
- Constructed with polyphenylene sulphide housing for durability.
- Gold-plated phosphor bronze contacts ensure superior conductivity.
- Supports operating temperatures from -55°C to 85°C.
- Incorporates built-in guide ribs for easy mating and alignment tolerance of +/- 0.6 mm.
- Optimized spring deflection contacts increase reliability and electrical continuity.
- Compact 0.6 mm pitch and surface mount technology for efficient PCB integration.
Product Description
Hirose FX8C-80P-SV(91) PCB Header is a high-performance FunctionMAX FX8C series connector designed for board-to-board applications requiring 80 contacts arranged in 2 rows with a precise 0.6 mm pitch. It features a straight surface mount orientation and shrouded design for enhanced protection and durability.
This connector supports high-speed data transmission rates up to 3.125 Gbit/s, making it suitable for demanding industrial, medical, and telecommunications environments. The housing is made of robust polyphenylene sulphide material, ensuring mechanical stability and resistance to environmental stress.
The gold-plated phosphor bronze contacts offer excellent conductivity and corrosion resistance, backed by an optimized spring deflection design for improved contact reliability and a 2 mm wiping distance to maintain electrical continuity. Operating temperature ranges from -55°C to 85°C, highlighting its suitability for harsh conditions.
Built-in guide ribs allow for an alignment tolerance of ±0.6 mm, easing the mating process while preventing misinsertion with uniquely positioned guide posts. The connector’s compact 0.6 mm pitch and surface mount technology enable effective PCB space utilization and efficient assembly.
Applications include servers, broadcast equipment, industrial machinery, medical devices, and POS terminals, where reliable high-speed connections are critical. Supports high-speed transmission up to 3.125 Gbit/s for efficient data transfer.
Built-in guide ribs ensure easy mating and alignment tolerance. Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance. Shrouded, straight surface mount design for protection and durability.
Wide operating temperature range from -55°C to 85°C for versatile environments. Compact 0.6 mm pitch and 2-row contact arrangement optimize PCB space. Spring deflection contact design enhances reliability and electrical continuity.
Boasts a 2 mm wiping distance to reduce contact resistance and maintain connection integrity. Ideal for industrial, medical, server, POS, and broadcast equipment applications. Explore the Hirose connector range on EnvMart for additional board-to-board interface solutions and advanced industrial connector systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports high-speed data transmission rates up to 3.125 Gbit/s, making it suitable for demanding applications.
The contact pitch is 0.6 mm, which allows for compact PCB integration.
It operates effectively within a temperature range of -55°C to 85°C, suitable for harsh environments.
This model features 80 contacts arranged in 2 rows.
The housing is made from polyphenylene sulphide, while the contacts are constructed from gold-plated phosphor bronze for excellent conductivity.
It uses a solder termination type for secure connections.
The current rating for this model is 400 mA.
It incorporates built-in guide ribs that provide an alignment tolerance of ±0.6 mm, facilitating easy mating and preventing misinsertion.
This connector has a straight orientation, designed for surface mounting.
It is suitable for applications in servers, broadcast equipment, industrial machinery, medical devices, and POS terminals.
It is a board-to-board connector system, designed for reliable connections between PCBs.
The contacts are gold-plated to ensure superior conductivity and corrosion resistance.
