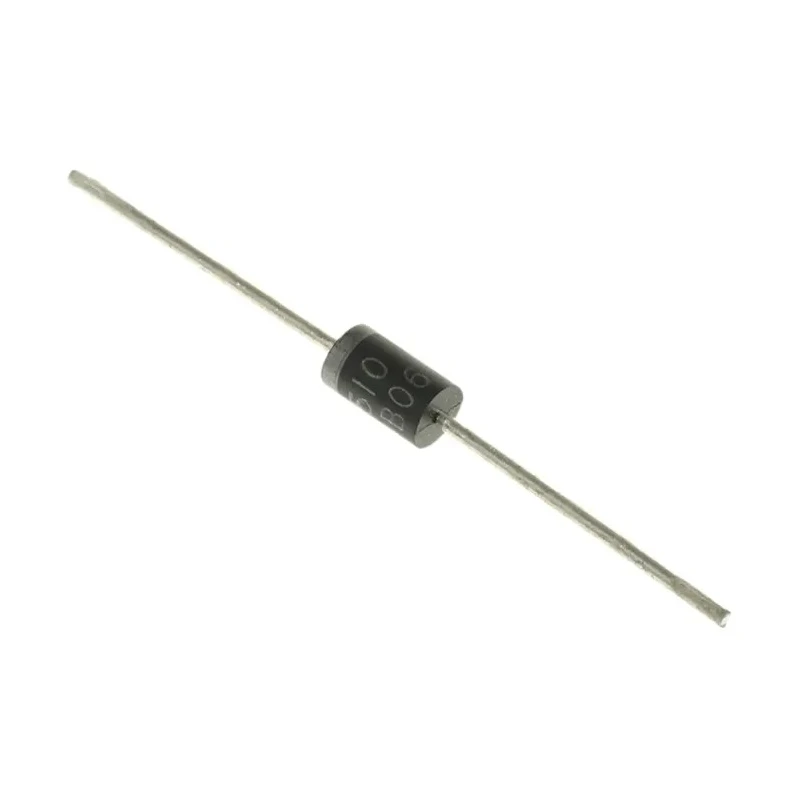

Taiwan Semiconductor 100V 5A Schottky Diode Through Hole DO-201AD SR510

Taiwan Semiconductor SR510 Schottky Diode is a robust and reliable electronic component designed for industrial and automotive applications requiring efficient rectification with low power loss.

This diode supports a maximum continuous forward current of 5 amperes and a peak reverse repetitive voltage of 100 volts, housed in a durable DO-201AD through hole package that facilitates easy PCB mounting and stable operation.

Featuring a low forward voltage drop of 0.85 volts, the SR510 reduces power dissipation and heat generation, enhancing energy efficiency in power supply circuits and switching applications.

The diode demonstrates excellent performance under harsh conditions with an operating temperature range from -65°C to 150°C and a high peak surge current capacity of 120 amperes, making it suitable for transient load handling.

Its compact dimensions (diameter 5.6mm, length 9.5mm) combined with compliance to the AEC-Q101 automotive standard affirm its high reliability for use in automotive electronics and demanding industrial environments.

Applications include power rectification, voltage clamping, freewheeling diodes in power converters, and protection circuits where efficient switching and low forward voltage are essential.

Rated for maximum continuous forward current of 5 amperes. Peak reverse repetitive voltage of 100 volts. Low forward voltage drop of 0.85 volts. Rectifier type is Schottky with single diode configuration. Through hole mounting in DO-201AD package.

Operating temperature range -65°C to 150°C. Peak non-repetitive forward surge current 120 amperes. Compact size with 5.6mm diameter and 9.5mm length. Meets AEC-Q101 automotive standard. Explore the Electronics & Electricals category for premium semiconductor and diode solutions from Taiwan Semiconductor and other top manufacturers at EnvMart.
