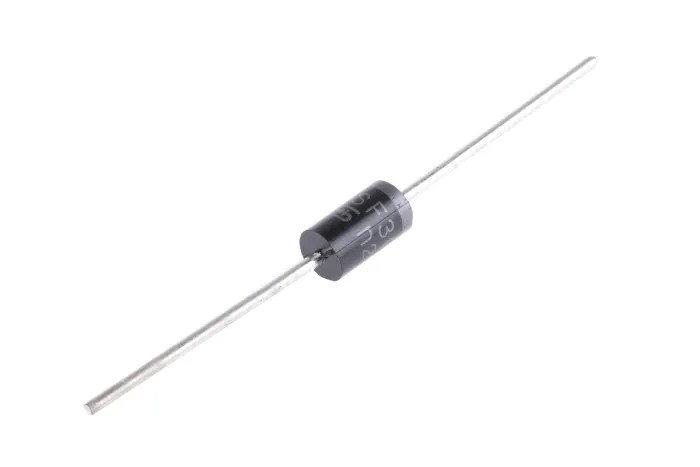

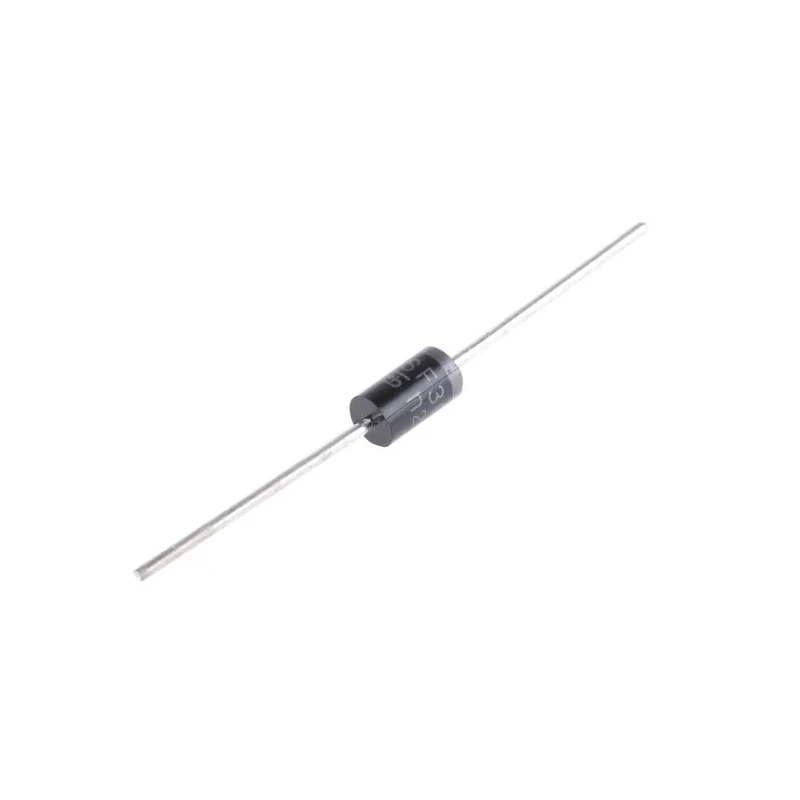

Taiwan Semiconductor 400 V 3 A Single Switching Diode Through Hole DO-201AD SF36G R0

Taiwan Semiconductor SF36G R0 is a robust single switching diode designed for industrial electronic applications. It comes in a DO-201AD through hole package with 2 pins, facilitating easy PCB mounting and integration. This rectifier diode handles maximum continuous forward current of 3 amperes and withstands peak reverse repetitive voltages up to 400 volts.

Its peak non-repetitive forward surge current rating of 125 amperes allows it to absorb transient surges, enhancing circuit durability. The forward voltage drop is limited to 1.3 volts, ensuring efficient conduction and minimal heat generation. The ultra-fast peak reverse recovery time of 35 nanoseconds makes it suitable for high-speed switching scenarios in power management, signal rectification, and protection circuits.

Operating reliably in environments from -65°C to +125°C, this diode supports a wide range of industrial, commercial, and laboratory electronic designs. The package dimensions of 9.5 mm length and 5.6 mm diameter conform to the DO-201AD standard, ensuring compatibility with many PCB layouts requiring through hole mounting.

Taiwan Semiconductor Diodes are known for quality and performance in semiconductor switching applications. This device features a low peak reverse current of 5 microamperes, improving efficiency in voltage blocking conditions. It is not rated for automotive use and has no special standards or approvals.

The diode has a 2-pin through hole mounting suitable for robust circuits. Maximum continuous forward current is 3 amperes for reliable performance. Peak reverse repetitive voltage rated at 400 volts ensuring blocking of high voltage spikes.

Peak non-repetitive forward surge current is 125 amperes, allowing tolerance for brief surges. Maximum forward voltage drop of 1.3 volts minimizing power loss during conduction. Peak reverse recovery time of 35 nanoseconds enables fast switching operations.

Operating temperature range spans from -65°C to +125°C for use in harsh environments. Physical dimensions include 9.5 mm length and 5.6 mm diameter, typical for DO-201AD package. The diode features low peak reverse current of 5 microamperes, enhancing efficiency.

No automotive standards or certifications are applicable to this device.

This diode is ideal for use in industrial electronic assemblies, power control systems, laboratory equipment, HVAC controllers, and manufacturing automation involving rectification and switching tasks. Discover more quality semiconductor components at EnvMart to support your design and production needs.
