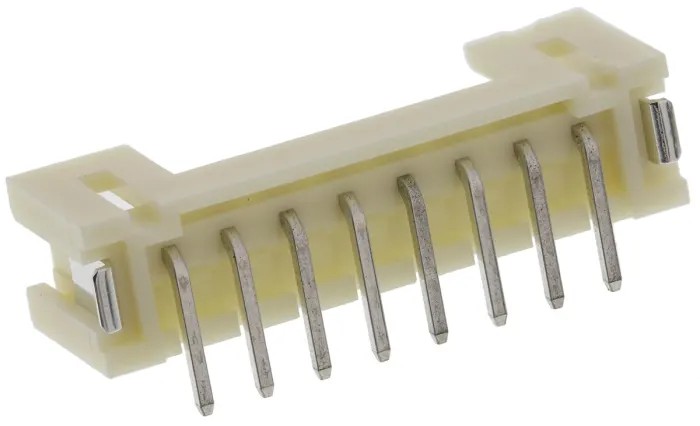

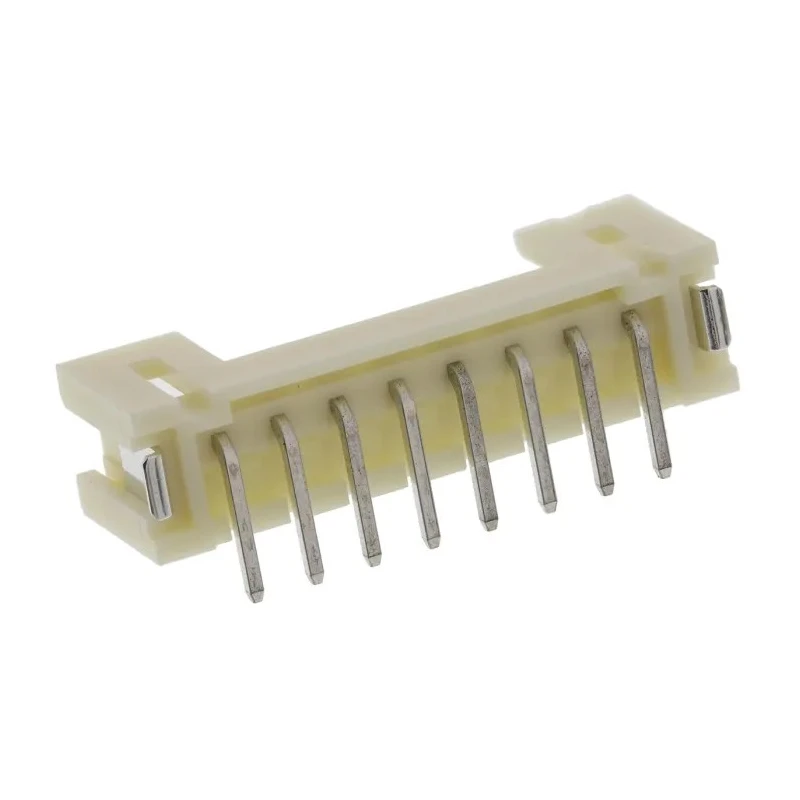

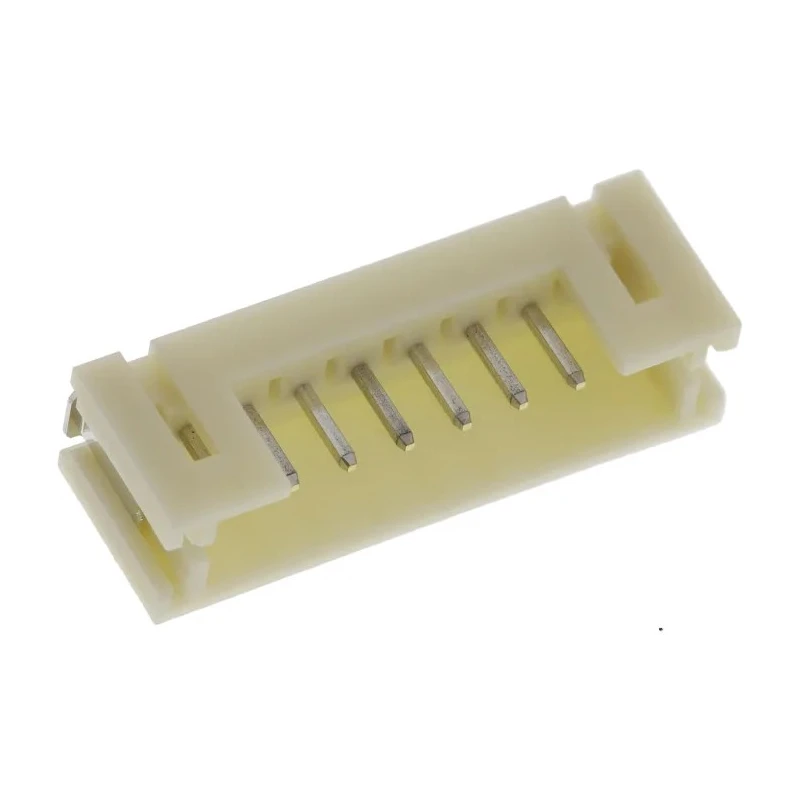

JST PH Series Straight Surface PCB Header 8 Contact 2 mm Pitch 1 Row Shrouded B8B-PH-SM4-TB(LF)(SN)

JST B8B-PH-SM4-TB(LF)(SN) PH Series Straight Surface PCB Header is an 8-contact, 2 mm pitch, shrouded header designed for surface mount wire-to-board connections in electronic assemblies. This connector is ideal for applications requiring compact, reliable, and high-density internal wiring to printed circuit boards.

The polyamide housing provides durability and insulation, while the copper alloy male contacts with tin plating ensure low insertion force and corrosion resistance. Rated for 2A current and 100V AC voltage, it supports a wire size range from 32 AWG to 24 AWG and operates reliably across a temperature range of -25°C to 85°C.

The fully shrouded design protects contacts from damage and helps prevent misalignment during assembly. It features a top entry termination type with solder mount technology, offering solid mechanical and electrical connection to the PCB.

Commonly used across industrial electronics manufacturing, laboratory instruments, and consumer electronics assembly, this PCB Header meets the needs for compact and robust electronic interconnects.

Designed for high density internal wire to PCB connections. Compact and cost-effective with reliable contact performance. Current rating of 2A and voltage rating of 100V AC. Constructed with polyamide housing and copper alloy male contacts.

Surface mount with solder termination for secure assembly. Operating temperature range from -25°C to 85°C. Fully shrouded header preventing misalignment and damage. Compatible with wire sizes from 32 AWG to 24 AWG. Tin-plated contact surfaces for corrosion resistance.

Wire-to-board connector system with 2 mm row pitch.

This product complements PCB connector families and is suitable for electronic assemblies requiring reliable and precise wire-to-board mating. Browse additional JST connectors and electronics components for comprehensive solutions in your manufacturing or repair projects.
