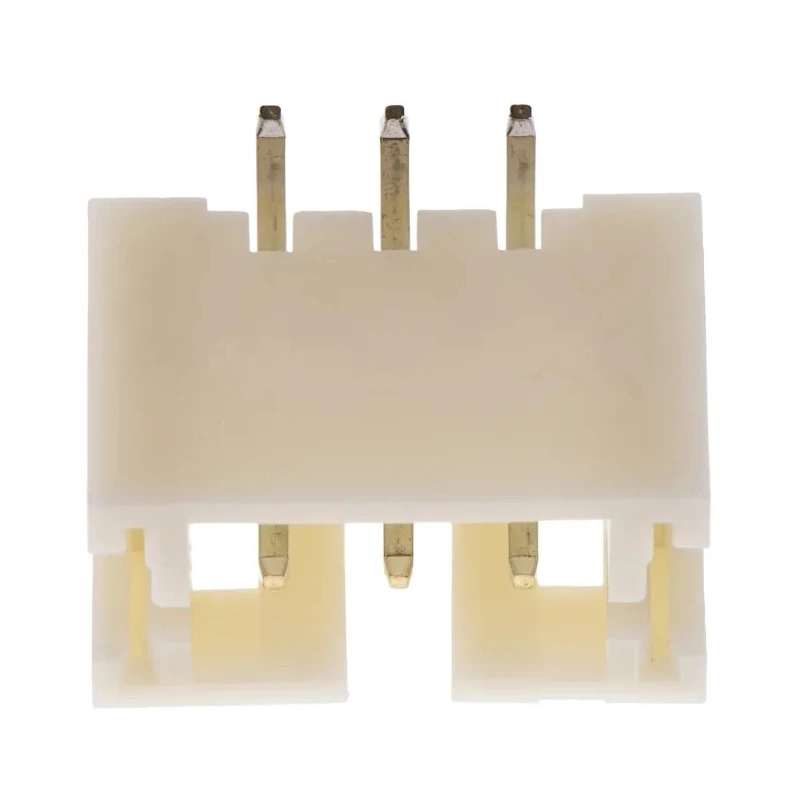

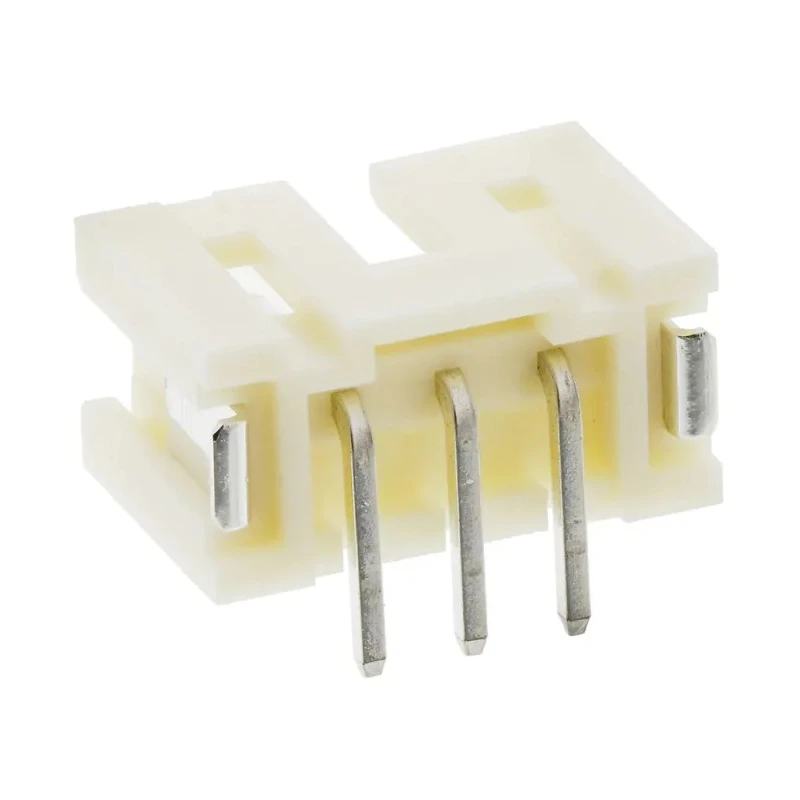

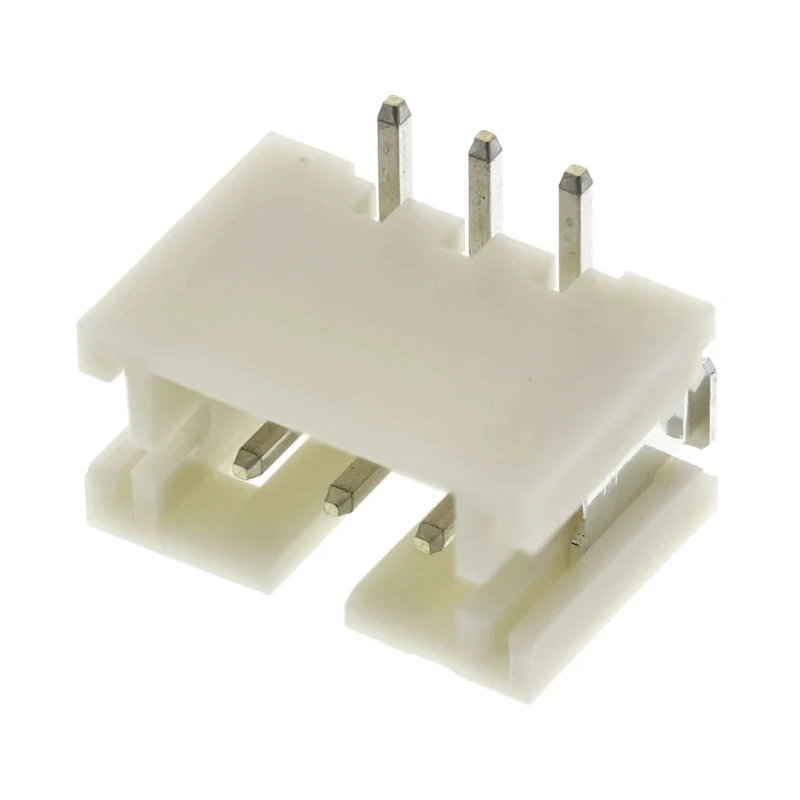

JST PH Series Straight Surface PCB Header 3 Contact 2 mm Pitch 1 Row Shrouded B3B-PH-SM4-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Straight Surface PCB Header 3 Contact 2 mm Pitch 1 Row Shrouded B3B-PH-SM4-TB(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	100V
Brand	JST
Orientation	Straight
Current	2A
Model	B3B-PH-SM4-TB(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This component is a shrouded, single-row, straight surface mount PCB header.
It supports a current rating of 2 amperes with a voltage rating of 100 volts AC.
The housing is made of durable polyamide with copper alloy contacts plated in tin.
Designed for operating temperatures from -25°C up to 85°C, suitable for various industrial environments.
The header features a low insertion force top entry and a PCB retention mechanism.
Connector system is wire-to-board with solder termination type and male contact gender.
It is ideal for compact, high-density internal PCB wiring applications.
Originating from Malaysia, this part ensures quality and reliability.

Product Description

The JST B3B-PH-SM4-TB(LF)(SN) PH Series Straight Surface PCB Header is a shrouded, single-row connector with three contacts, designed for reliable wire-to-board connections on printed circuit boards. Featuring a 2 mm pitch and a compact form factor, it is suitable for high-density PCB applications, widely used in electronics manufacturing, industrial equipment, and telecommunications.

Constructed from robust polyamide housing with copper alloy contacts plated in tin, this PCB header ensures excellent conductivity and durability. It operates safely within a temperature range of -25°C to 85°C and is rated for 2 amperes current and 100 volts AC, making it suitable for various industrial and commercial electronics applications.

The connector system uses a low insertion force, top entry, surface mount style, providing efficient assembly and excellent PCB retention. Its shrouded design protects the contacts, enhancing reliability and safety in electrical connections.

This PCB header is notably utilized in industrial manufacturing, electronic assembly, telecommunications equipment, and various electronics applications requiring secure, compact, and dependable wire-to-board connections.

This component is a shrouded, single-row, straight surface mount PCB header. It supports a current rating of 2 amperes with a voltage rating of 100 volts AC. The housing is made of durable polyamide with copper alloy contacts plated in tin.

Designed for operating temperatures from -25°C up to 85°C, suitable for various industrial environments. The header features a low insertion force top entry and a PCB retention mechanism. Connector system is wire-to-board with solder termination type and male contact gender.

It is ideal for compact, high-density internal PCB wiring applications. Originating from Malaysia, this part ensures quality and reliability. Explore additional JST PH Series PCB Headers and related connectors on EnvMart for comprehensive electronic component solutions.
