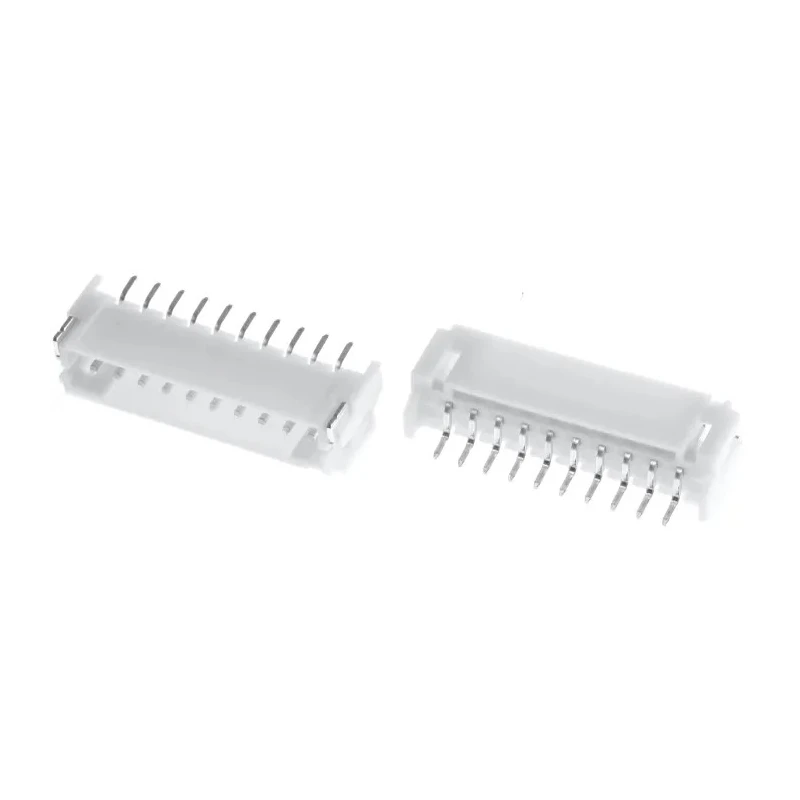

JST PH Series Right Angle Surface PCB Header 10 Contact 2 mm Pitch 1 Row Shrouded S10B-PH-SM4-TB(LF)(SN)

JST S10B-PH-SM4-TB(LF)(SN) PH Series Right Angle Surface PCB Header provides a highly reliable, compact wire-to-board connection solution with 10 contacts arranged in a single row at 2 mm pitch. Its shrouded construction protects contacts and improves durability for various electronics assembly applications.

This surface mount header features low insertion force (LIF) for easier connector mating and a side entry design facilitating efficient PCB layouts. The connector is rated for 2A current and 100V operating voltage, suitable for moderate power electronic circuits.

The contacts are made of copper alloy with tin plating, providing excellent electrical and corrosion resistance. The product operates reliably within a temperature range from -25°C to 85°C, making it suitable for various industrial and commercial electronic assemblies.

Designed to support wire sizes from 32 AWG to 24 AWG, this JST PH series header includes a secure PCB retention mechanism to maintain stable connection during operation. Its right angle orientation ensures efficient space utilization on printed circuit boards.

Applications include industrial controllers, instrumentation, communications equipment, and other electronic devices requiring compact and reliable wire-to-board interfaces. The fully shrouded, male contact header facilitates easy and safe connections while maintaining high signal integrity.

The header features low insertion force with a side entry design for easier assembly. It supports a current rating of 2A and voltage rating of 100V. Constructed from copper alloy contact material with tin plating for corrosion resistance.

Suitable for operating temperatures from -25°C up to 85°C. Designed for surface mount with solder termination and male contact gender. JST PH series provides a compact and highly reliable solution for high-density connections.

It incorporates a printed circuit board retention mechanism ensuring secure mounting. Compatible wire sizes range from 32 AWG to 24 AWG. Fully shrouded design offers protection to contacts and enhances connector durability.

This product is ideal for manufacturers, repair technicians, and designers working in electronics manufacturing, telecommunications, industrial automation, and instrumentation. Explore more JST PH series PCB Headers in EnvMart for an extensive selection of high-quality connectors designed to improve assembly efficiency and system reliability.
