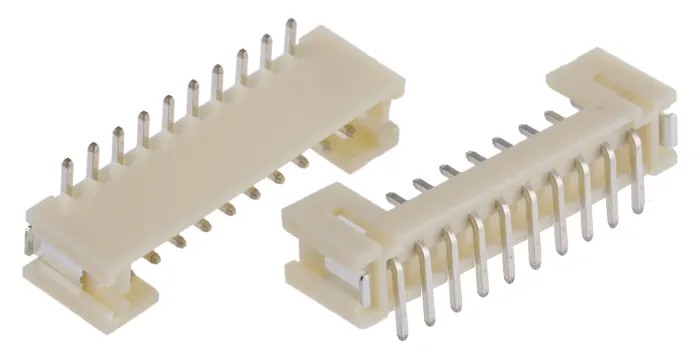

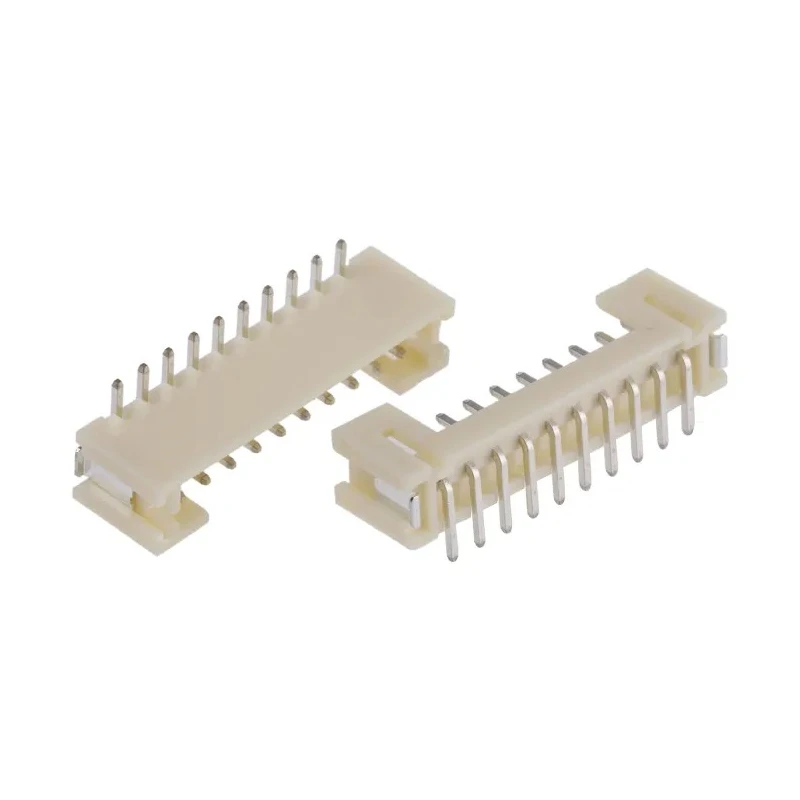

JST PH Series Straight Surface PCB Header 10 Contact, 2 mm Pitch, 1 Row, Shrouded B10B-PH-SM4-TB(LF)(SN)

JST B10B-PH-SM4-TB(LF)(SN) is a PH Series Straight Surface PCB Header featuring 10 male contacts arranged in one row with 2 mm pitch. It is a shrouded, surface mount type connector designed for wire-to-board applications, providing high reliability and compact design.

The header is made with polyamide housing that offers robust durability and copper alloy contacts plated with tin to ensure excellent electrical conductivity and corrosion resistance. It supports a current rating of 2A and a voltage rating of 100 V AC, making it suitable for low power circuitry.

The solder termination and surface mount configuration contribute to efficient PCB assembly and soldering processes. This header operates within a temperature range from -25°C to 85°C, ensuring stable performance under varying industrial and commercial conditions.

Its fully shrouded construction helps protect the contacts and prevents misalignment during mating. Compatible with wire sizes between 32 AWG and 24 AWG, it is ideal for connecting internal wiring in electronics, automation systems, and communication devices.

This JST PCB Header includes a printed circuit board retention mechanism to secure the connector firmly to the PCB during use, enhancing durability and mechanical stability. Compact PH Series header supports 10 male contacts in a single row.

2 mm pitch ensures dense connector placement on PCB. Constructed with polyamide housing and copper alloy contacts with tin plating. Current rating of 2A and voltage rating of 100 V AC suitable for low power applications.

Surface mount type with solder termination enhances manufacturing efficiency. Operational temperature range from -25°C to 85°C ensures usability in varied environments. Fully shrouded design improves connector protection and mating reliability.

Compatible with wire sizes from 32 AWG to 24 AWG. Designed to retain the printed circuit board securely during operation. Ideal for electronics, industrial automation, and communication equipment assemblies.

These connectors are widely used in industrial, electronics manufacturing, automation, and communication applications where compact, reliable, and efficient wire-to-board connections are required. Browse more PCB connectors and headers to find compatible components that meet your design specifications at EnvMart.
