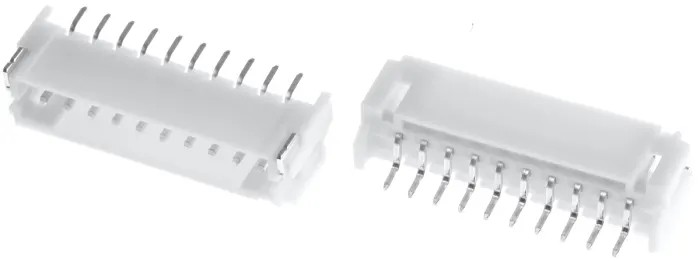

JST PH Series Right Angle Surface Mount PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded S10B-PH-SM4-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

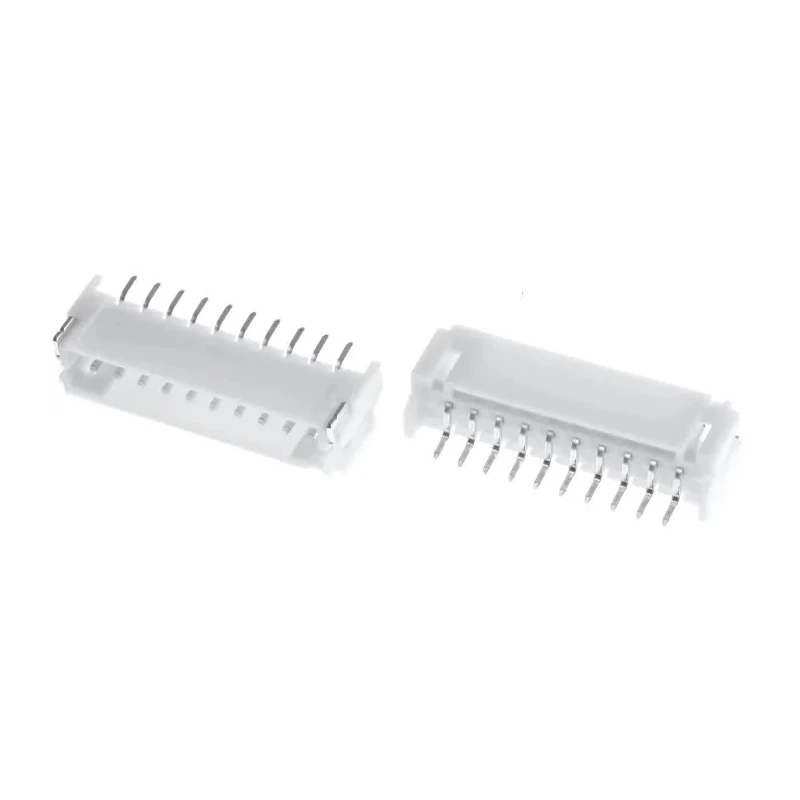

JST PH Series Right Angle Surface Mount PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded S10B-PH-SM4-TB(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Right Angle
Current	2A
Model	S10B-PH-SM4-TB(LF)(SN)
Mount Type	Surface
Contact Material	Copper Alloy
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Designed for high-density internal wire to PCB connections.
Fully shrouded housing ensures reliable contact protection.
Rated for 2A current and 100V operating voltage.
Surface mount termination type suitable for soldering.
Wide operating temperature range from -25°C to 85°C.
Constructed with copper alloy contacts and tin plating for durability.
Compatible with wire sizes 32 AWG to 24 AWG.
Low insertion force design to facilitate efficient assembly.

Product Description

JST S10B-PH-SM4-TB(LF)(SN) is a PH Series right angle surface mount printed circuit board (PCB) header with 10 male contacts arranged in a single row with a 2 mm pitch. This shrouded header is designed to deliver reliable and compact wire-to-board connectivity in electronic assemblies.

The connector is built from copper alloy contacts plated with tin to ensure lasting conductivity and corrosion resistance. It supports a current rating of 2A and a maximum operating voltage of 100V, suitable for a wide range of electronics applications.

Operating effectively between -25°C and 85°C, it provides robust performance under varied thermal conditions. The surface mount solder termination allows efficient PCB assembly with low insertion force functionality that reduces connector wear.

This header accommodates wire sizes from 32 AWG to 24 AWG, making it versatile for multiple wiring harnesses and electronic component setups requiring dense interconnections within limited spaces.

Its fully shrouded design protects the contacts from accidental shorts and enhances connection reliability during operation. This product finds extensive use in industrial electronics, power connectors, telecommunications equipment, and control systems.

Reliable and compact high-density wire-to-PCB connections. Fully shrouded housing protects contacts and improves durability. Current rating of 2A and voltage rating of 100V AC. Surface mount solder termination with low insertion force design.

Wide operating range from -25°C to 85°C for diverse applications. Contacts made of copper alloy with tin plating for corrosion resistance. Supports wire sizes 32 AWG to 24 AWG compatible with many harnesses. Ideal for electronic components, power connectors, and PCB wiring assemblies.

Explore the wide range of JST connectors and related PCB Header solutions available at EnvMart to meet demanding industrial and electronics manufacturing needs.
