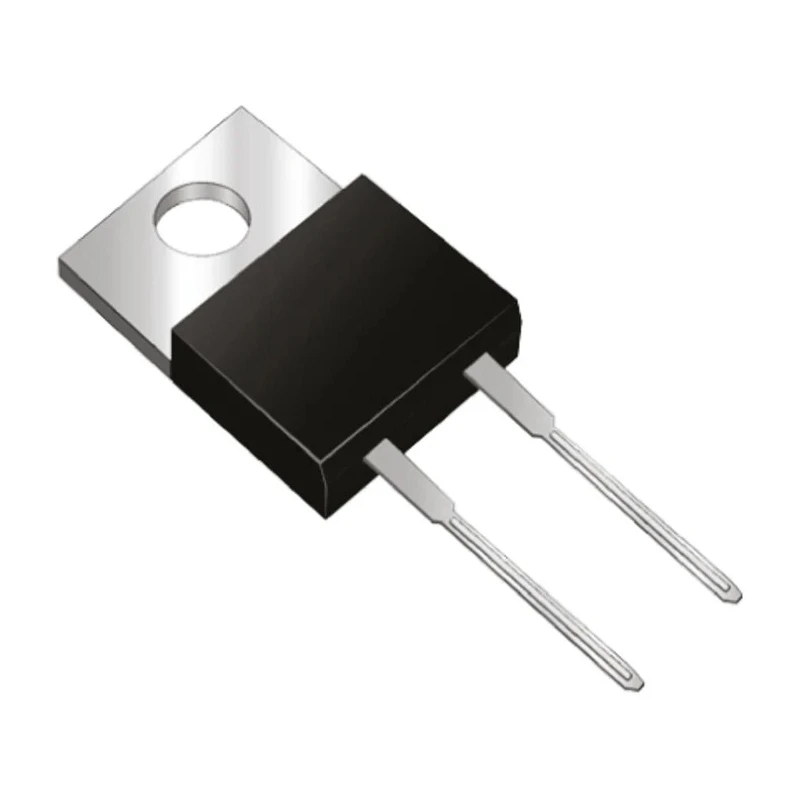

STMicroelectronics 1200 V 8 A Diode Switching 2-Pin TO-220 STTH812DI
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH812DI |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH812 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 8μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 2.2V |
| Peak Reverse Recovery Time trr | 100ns |
Key Features
- Through Hole mount type suitable for robust, high power applications.
- Made with switching rectifier technology for fast recovery time.
- Maximum forward voltage of 2.2 V ensures efficient conduction.
- Peak non-repetitive forward surge current of 80 A supports transient loads.
- Operating temperature ranges from -65°C to 175°C for wide environment tolerance.
- RoHS compliant ensuring environmentally safe manufacturing standards.
- Peak reverse recovery time of 100 ns suited for high speed switching circuits.
- Pin count of 2 pins designed for easy integration into electronic designs.
Product Description
STMicroelectronics STTH812DI is a high-performance diode designed for switching applications requiring a maximum reverse voltage of 1200 V and continuous forward current of 8 A. Housed in a durable TO-220 through-hole package, it offers excellent electrical characteristics such as low forward voltage drop of 2.2 V and minimal peak reverse current of 8 μA. Its fast recovery time of 100 ns makes it ideal for power rectification in industrial and electronic circuits requiring high switching speeds.
The diode operates reliably over a wide temperature range from -65°C to 175°C, allowing for use in harsh industrial environments, power supplies, and automotive electronics. Its construction provides a peak non-repetitive forward surge current rating of 80 A, ensuring transient load handling capability during power surges.
Compact physical dimensions (9.3 mm height, 10.4 mm length, 4.6 mm width, and pin diameter of 3 mm) allow for easy integration into various circuit boards. The device is RoHS compliant, which guarantees it meets environmental regulations for hazardous substances.
Through Hole mount type suitable for robust, high power applications. Switching rectifier design optimizes performance and lifecycle in demanding circuits. Peak reverse recovery time of 100 ns supports fast switching in power systems.
Wide operating temperature range from -65°C to 175°C enhances reliability. Compact TO-220 package aids in heat dissipation and mechanical robustness. Peak forward surge current of 80 A safeguards against electrical spikes.
Low maximum forward voltage drop of 2.2 V reduces power loss in conduction. Minimal peak reverse current of 8 μA ensures low leakage and high efficiency. Designed for use in industrial, automotive, power supply, and electronic control applications.
This diode is essential for designers seeking a reliable, high-voltage switching diode to improve efficiency and performance in power electronic circuits. For further components and semiconductor devices, browse EnvMart’s Electronics & Electricals section.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage for the STMicroelectronics STTH812DI diode is 1200 V.
This diode has a continuous forward current rating of 8 A.
The STTH812DI is housed in a TO-220 package type.
The peak non-repetitive forward surge current rating for this diode is 80 A.
The maximum forward voltage drop for the STTH812DI is 2.2 V.
This diode features a peak reverse recovery time of 100 ns.
The operating temperature range for the STTH812DI is from -65°C to 175°C.
The STTH812DI has a pin count of 2 pins.
The peak reverse current for the STTH812DI is 8 μA.
Yes, the STTH812DI is RoHS compliant, ensuring it meets environmental regulations for hazardous substances.
The STTH812DI is classified as a switching rectifier.
The dimensions of the STTH812DI are 9.3 mm in height, 10.4 mm in length, and 4.6 mm in width.
