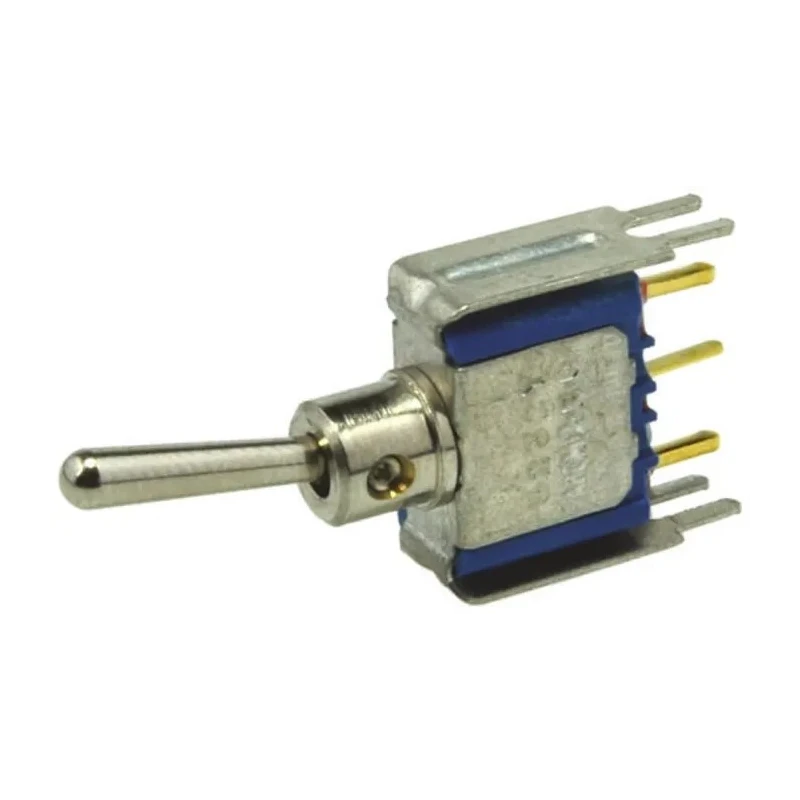

APEM Toggle Switch PCB Mount On-Off-On SPST PC Terminal 24 V dc 20 V ac 5239YCDB

APEM 5239YCDB Toggle Switch is a precision-engineered PCB mount switch featuring an On-Off-On SPST operation configuration, rated for 24 V dc and 20 V ac. The actuator is constructed from nickel-plated brass, enhancing durability and performance under various industrial conditions.

This switch is designed for mounting on printed circuit boards with PC terminals to ensure stable and reliable electrical connections. It supports a contact current of 400 mA, making it suitable for low-power switching circuits.

The toggle switch has a compact size, with a panel cutout requirement of 6.5 mm and physical dimensions measuring 36 mm in height, 14 mm in length, and 12 mm in width. It efficiently operates within a temperature range of -40°C to 85°C, ensuring reliability in harsh environments.

Engineered for longevity, the switch boasts a mechanical life of 100,000 operations, assuring dependable on/off switching over extended periods. Additionally, this product complies with multiple rigorous standards, including RoHS, UL, NFVDE, CSA, and CECC, confirming its quality and safety credentials.

The APEM 5239YCDB is widely employed in electrical, automation, and electronic applications such as industrial control panels, instrumentation, and circuit control modules. Its robust construction and reliable switching operation make it a preferred choice for engineers and designers seeking durable toggle switches.

This toggle switch features a single-pole single-throw (SPST) contact configuration. It operates with an On-Off-On switch configuration for versatile switching needs. Built with nickel-plated brass actuator material for durability and reliability.

Designed to mount on printed circuit boards with PC terminals for secure connections. Operates reliably in temperatures ranging from -40°C to 85°C ensuring broad environmental tolerance. Mechanical life rated for 100,000 operations, ensuring long-lasting performance.

Panel cutout size is 6.5 mm, with physical dimensions of 36 mm height, 14 mm length, and 12 mm width. Certified with RoHS, UL, NFVDE, CSA, and CECC standards for safety and compliance. Ideal for industrial, electrical, automation, and electronics applications requiring reliable switching.
